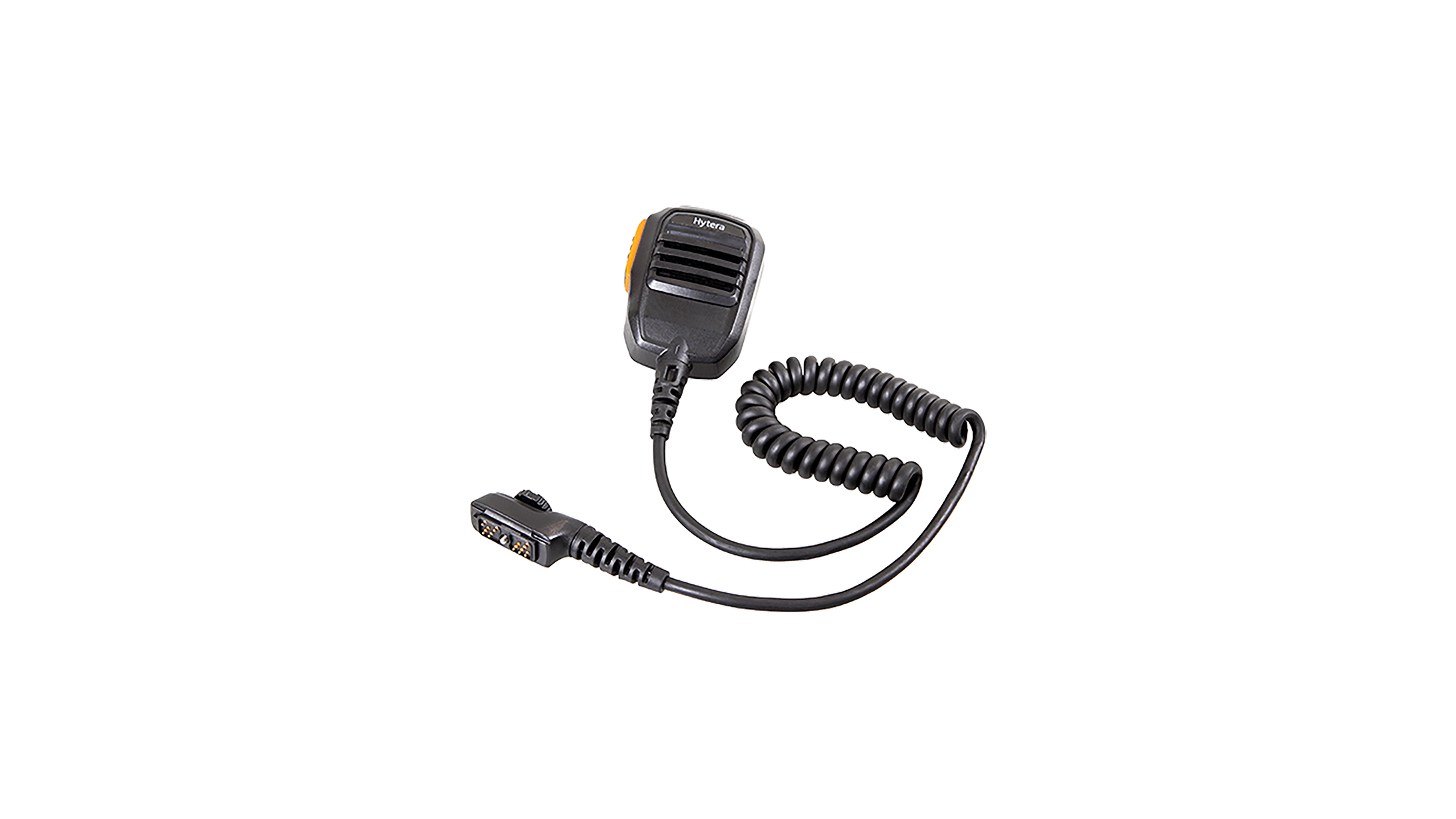

SM18N5 Waterproof Remote Speaker Microphone(IP67)



This model is for PT560H and PT580H Plus. The microphone has an adjustable clip at the back for comfortable wearing and positioning. The tactile PTT gives positive acknowledgement to the user that the button has been pressed. The emergency button is on the top of the unit so that it can be easily found. This design also protects against inadvertent operation.This model is IP67 dust and water resistance and also submersible (30 minutes in 1 meter deep). The cable is Kevlar reinforced to give the unit maximum reliability in tough environments.The 3.5 mm audio jack socket is not included.

Технические характеристики SM18N5

Размеры 86.3* 62.1* 43.8mm
Вес about 160g
Цвет black
Клавиша РТТ available
Аварийная клавиша available
Соединитель 16-pin connector
Чувствительность микрофона -42±3dB@1kHz 3.0V 2.2K,0dB=1V/Pa
Мощность динамика 1 W (rated); 1.5 W (max.)
Сопротивление динамика 8Ω±15%@1kHz
Частотная характеристика динамика 93±3dB@1kHz 1w/30cm
IP-рейтинг IP67
Рабочая Температура -30~70℃
Температура хранения -40~85℃
