Highlights
Excellent Performance
The BD30X offers stable and reliable voice communication even over long distance, thanks to the 2-watt output power, excellent reception capability, and strong anti-interference ability in digital mode.
Rugged and Durable
Built tough, the BD30X meets the stringent standards, including IP54 and MIL-STD-810G. It withstands dust, water, extreme temperatures, shock, vibration, humidity, and more.
Superior audio quality
The digital encoding and correction technology enables the BD30X to deliver clearer and louder audio while canceling ambient noise.
Compatible with Analog
The BD30X supports both analog and digital modes, allowing migration to digital at your own pace and budget.

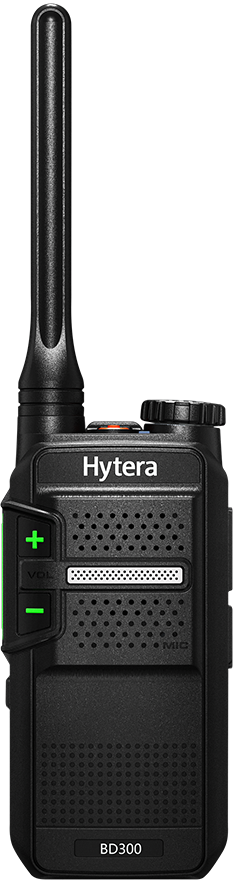

Micro USB port
Support battery charging and radio programming
Antenna
Enhance signal receiving ability
LED Indicator
LED Indicator
Channel Knob
Select the operating channel (1-16)
Audio jack
2.5 mm jack for different earpieces
Specifications
| General | |
| Frequency Range | UHF：400-470 MHz |
| Channel Capacity | 48 |
| Zone Capacity | 3 |
| Operating Voltage | 3.8V |
| Battery | 2200mAh (Li-ion) |
| Battey Life(5/5/90 Duty Cycle,High TX Power) | Analog:12hours Digital:16hours |
| Dimensions(H×W×D) mm | 101×49×26 |
| Weight | 140g(with AN0435H19 and BL2202) |
| Receiver | |
| Sensitivity(Analog) | 0.22μV (Typical) (12dB SIN AD) 0.4μV (20dB SIN AD) |
| Rated Audio Power Output | 0.5W |
| Transmitter | |
| Digital Vocoder Type | SELP |
| Environmental | |
| Operating Temperature | -30℃~+60℃ |
| Storage Temperature | -40℃~+85℃ |
| ESD | IEC 61000-4-2(level 4); ±8kV(Contact); ±15kV(Air) |
| MIL Standard | MIL-STD-810 G |
| Dust & Water Protection | IP54 Standard |
| Humidity | MIL-STD-810 C/D/E/F/G Standard |
| Vibration,Drop&Shock | MIL-STD-810 C/D/E/F/G Standard |
| General | |
|---|---|
| Frequency Range | UHF：400-470 MHz |
| Channel Capacity | 48 |
| Zone Capacity | 3 |
| Operating Voltage | 3.8V |
| Battery | 2200mAh (Li-ion) |
| Battey Life(5/5/90 Duty Cycle,High TX Power) | Analog:12hours Digital:16hours |
| Dimensions(H×W×D) mm | 101×49×26 |
| Weight | 140g(with AN0435H19 and BL2202) |
| Receiver | |
|---|---|
| Sensitivity(Analog) | 0.22μV (Typical) (12dB SIN AD) 0.4μV (20dB SIN AD) |
| Rated Audio Power Output | 0.5W |
| Transmitter | |
|---|---|
| Digital Vocoder Type | SELP |
| Environmental | |
|---|---|
| Operating Temperature | -30℃~+60℃ |
| Storage Temperature | -40℃~+85℃ |
| ESD | IEC 61000-4-2(level 4); ±8kV(Contact); ±15kV(Air) |
| MIL Standard | MIL-STD-810 G |
| Dust & Water Protection | IP54 Standard |
| Humidity | MIL-STD-810 C/D/E/F/G Standard |
| Vibration,Drop&Shock | MIL-STD-810 C/D/E/F/G Standard |
