Communication System (Optional)

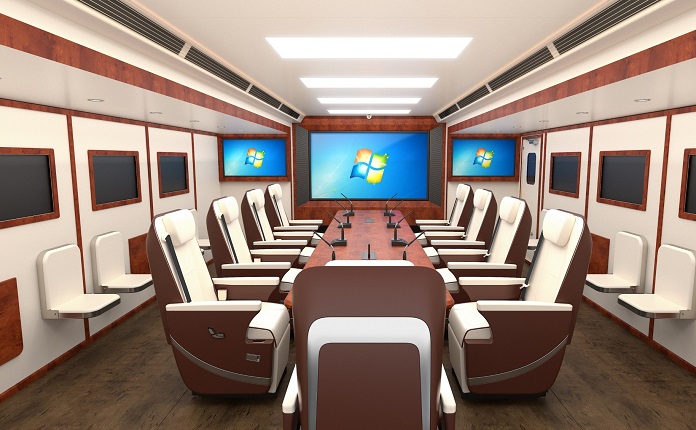

Conference System
hytera image
  • Meeting space for accommodating 11 to 23 people
  • Equipped with printers, IP phones, laptops, and other office facilities
  • Equipped with air conditioners and an environmental monitoring system to ensure the comfort of people in the vehicle.
Unmanned Aerial Vehicle
hytera image
  • Hover precision: ≤±1.5 m (horizontal); ≤±0.3 m (vertical)
  • Maximum wind resistance: level 6
  • Video transmission distance: 10 km to 25 km
  • Maximum standby time: 38 minutes
Broadband Trunking System
hytera image
  • Optional 1.4 GHz/1.8 GHz/other frequencies (customizable)
  • Adjustable bandwidth: 20 MHz/15 MHz/10 MHz/5 MHz
  • Tx power: 2 x 40 W
  • Maximum number of online broadband terminals: 600
hytera image
  • Frequency range: 130 MHz to 800 MHz
  • Ku or Ka frequency band
  • Equivalent diameter of communication-in-motion antenna: 0.6 m to 0.9 m
  • Diameter of communication-in-immobility antenna: 1.0 m to 1.2m
  • Transmission rate: 2 Mbps to 8 Mbps
  • HD 1080P image transmission supported
Narrowband Trunking System
hytera image
  • Frequency range: 130 MHz to 800 MHz
  • Channel capacity: 1024
  • Channel spacing: 12.5 KHz/20 KHz/25 KHz
  • Output power: 4 W (high), 1 W (low)
  • Ingress protection: IP67
  • Coverage radius: 5 km (handset); 15 km (vehicle radio); 30 km (base station)
LTE System
hytera image
  • 10/100 Mbps Ethernet interfaces, WAN/LAN supported
  • Drawer-type card
  • Optional WLAN module
  • Static IP address, DHCP, and PPPoE supported
  • GRE, L2TP, IPSec, DMVPN, OpenVPN, and CA supported
Command and Dispatch
hytera image
  • Multi-screen display
  • Integration of multiple networks (including private network, satellite, 4G, government network), combined with video command and dispatch system to deliver comprehensive dispatch for improved situational awareness.
Narrowband Ad Hoc Network
hytera image
  • Frequency range: 350 MHz to 400 MHz
  • Channel spacing: 12.5 KHz
  • Operating bandwidth: 25 KHz
  • Maximum number of nodes: 32
  • Battery life: 10 hours
  • Ingress protection: IP67
Broadband ad hoc Network
hytera image
  • Operating frequency band (customizable)
  • Antenna configuration: 2T2R
  • Tx power: 2 x 5 W
  • Sensitivity ≤ -105 dBm@10 MHz
  • Operating bandwidth: 10 MHz (typical), customizable
  • Number of nodes: 32
  • Spectrum efficiency: 6 bps/Hz, 60 Mbps (maximum)
  • Encryption algorithms: AES and Snow 3G; third-party algorithm supported
  • Power supply: +24 V DC
  • Operating temperature: -40℃ to +65℃
  • Ingress protection: IP67
Technical Support
hytera image
  • Independent operation area for 2-4 technical support personnel
  • A cabinet and operation console deployed in the technical support area for accommodating main equipment to provide technical protection
  • Monitoring device operation
  • Technical support personnel can switch to proper communication links as well as audio and video signals based on task requirements and the communication environment, and process data.
  • Real-time interaction between technical support personnel and commanders to ensure task implementation
