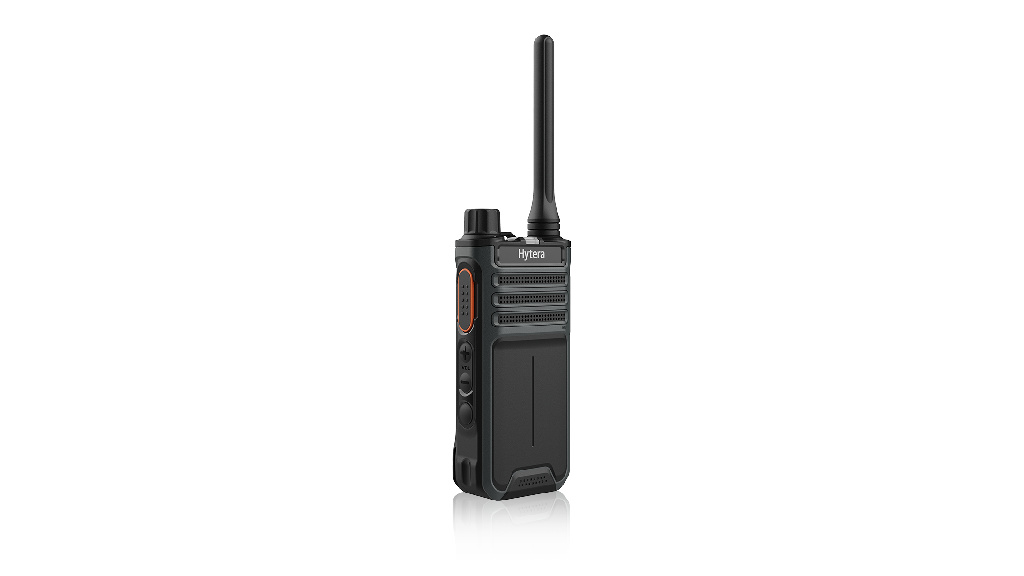

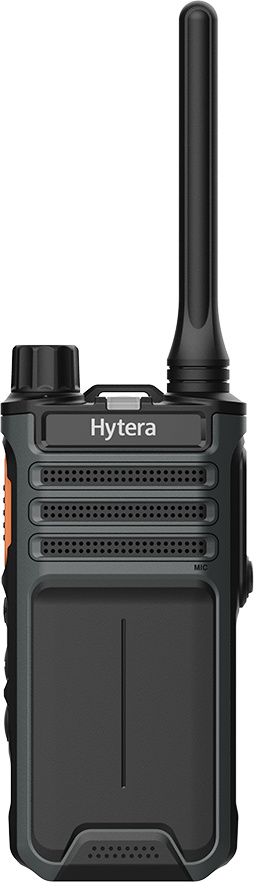

Supports both digital and analogue modes, compatible with your existing digital and analogue systems and terminals. Powerful digital features like priority interrupt, basic encryption, text messaging, roaming will enhance your business service. The BP515 series has extended range in class and features 64 channels, making group communication more flexible.
multiple sizes available
Push-to-talk key easily accessible
9 Pin Accessory Connector
For ease of use
Anti-abrasive housing for better handling
General data | |
---|---|
Frequency Range | VHF:136-174 MHz U1:400-470 MHz |
Channel Capacity | 256 (128 analogue, 128 digital) |
Zone Capacity | 4 (16 channels per zone) |
Channel Spacing | 12.5 kHz/20 kHz/25 kHz |
Operating Voltage | 7.4 V (rated) |
Battery | Standard:1500 mAh 7.4 V Optional:2200 mAh 7.4 V |
Battey Life(5/5/90 Duty Cycle,High TX Power) | 12 h (1500 mAh); 16 h (2200 mAh) |
Frequency Stability | ±0.5 ppm |
Antenna Impedance | 50 Ω |
Dimensions(H×W×D) mm | 115 mm x 55 mm x 29.5 mm |
Weight | 210 g |
BT | BT 5.0 BLE+EDR (hardware option) |
Receiver | ||
---|---|---|
Sensitivity(Analog) | 0.18 μV (12 dB SINAD) | |
Sensitivity(Digital) | 0.18 μV/BER5% | |
Adjacent Channel Selectivity | TIA-603: 60 dB@12.5 kHz / 70 dB@20/25 kHz ETSI: 60 dB@12.5 kHz / 70 dB@20/25 kHz | |
Intermodulation | TIA-603: 70 dB@12.5/20/25 kHz ETSI: 65 dB@12.5/20/25 kHz | |
Spurious Response Rejection | TIA-603: 70 dB@12.5/20/25 kHz; ETSI: 70 dB@12.5/20/25 kHz | |
Blocking | TIA-603: 80 dB; ETSI: 84 dB | |
Hum&Noise | 40 dB@12.5 kHz; 43 dB@20 kHz; 45 dB@25 kHz | |
Rated Audio Power Output | 1 W | |
Rated Audio Distortion | ≤3% | |
Audio Response | +1~-3 dB | |
Conducted Spurious Emission | <-57 dBm |
Transmitter | ||
---|---|---|
RF Power Output | UHF:1W / 4W; VHF:1W / 5W | |
FM Modulation | 11K0F3E@12.5 kHz; 14K0F3E@20 kHz; 16K0F3E@25 kHz | |
4FSK Digital Modulation | 12.5 kHz data only: 7K60FXD; 12.5 kHz data and voice: 7K60FXW | |
Conducted/Radiated Emission | -36 dBm<1 GHz; -30 dBm>1 GHz | |
Modulation Limiting | ±2.5 kHz@12.5 kHz; ±4.0 kHz@20 kHz; ±5.0 kHz@25 kHz | |
FM Hum&Noise | 40 dB@12.5 kHz; 43 dB@20 kHz; 45 dB@25 kHz | |
Adjacent Channel Power | 60 dB@12.5 kHz; 70 dB@20/25 kHz | |
Audio Distortion | ≤3% | |
Digital Protocol | ETSI-TS102 361-1,2 & 3 |
Environmental Specs | ||
---|---|---|
Operating Temperature | -30 ℃ to +60 ℃(Radio only - Battery -20 ℃) | |
Storage Temperature | -40 ℃ to +85 ℃ | |
ESD | IEC 61000-4-2 (Level 4) ±8 kV (contact); ±15 kV (air) | |
MIL Standard | MIL-STD-810 G | |
Dust & Water Protection | IP54 | |
Humidity | MIL-STD-810 G |
