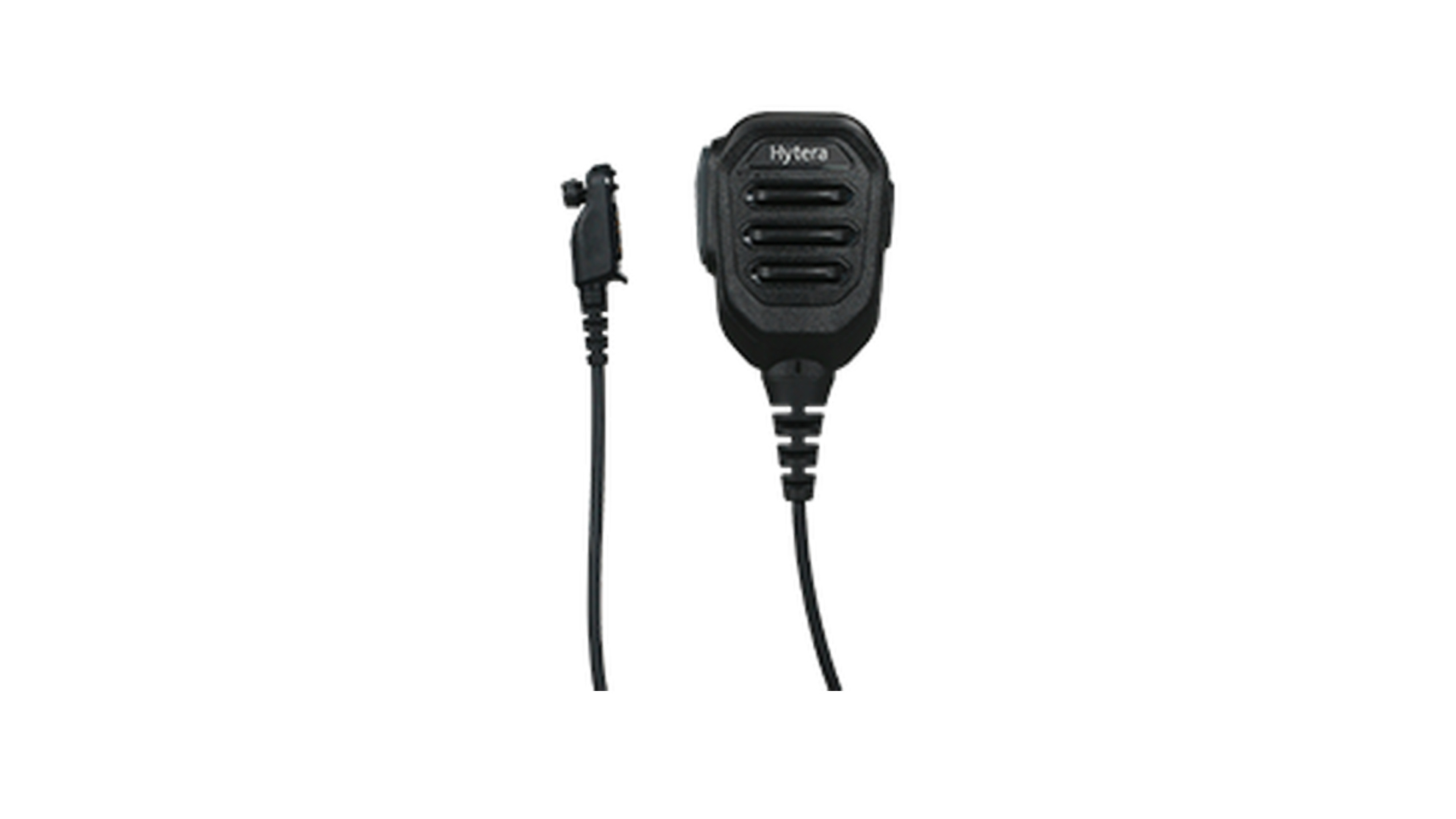

Remote Speaker Microphone (with 3.5mm jack) for AP5/BP5 series

SM50N1-P

User-friendly and compact IP54 remote speaker microphone with 3.5mm audio jack (for use with receive-only earphones) with Hytera Logo (RoHS) (REACH)

Specifications of SM50N1-P

Dimensions 81.5* 58.5* 43.0mm
Weight about 190 g
Color black and gray
PTT Key available
Emergency Key none
Microphone Sensitivity -45±3 dB@1 kHz 3.0 V 2.2 kilohm;0 dB=1 V/Pa
Speaker Power 2 W (rated); 3 W (max.)
Speaker Impedance 16 Ω±15%@2 kHz
Speaker Frequency Response 95±3 dB@1 kHz 5.66 V@30 cm
IP Rating IP67 (with accessory jack cover closed)
Operating Temperature -20℃ to 60℃
Storage Temperature -40℃ to 85℃
