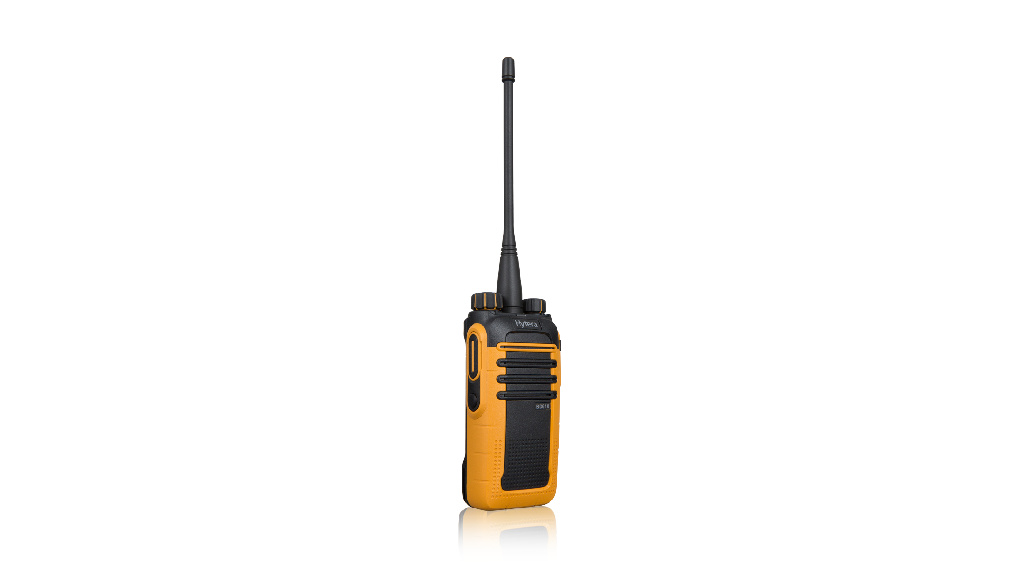

BD615 A Rugged Radio for Harsh Environments

Handheld | DMR

Hytera's new BD615 two-way radio inherits the excellent performance of its predecessor the TC-610 series and provides professional communication that is easy to operate effectively. The robust and reliable body can guarantee excellent product performance. The clear and loud sounding voice can cope better in multiple surroundings, these include noisy environments such as the outdoors and crowded areas.

Highlights of BD615

RUGGED AND RELIABLE

The BD615 features a bold two-colour design and is tested to meet the Military Standards of 810 G, including temperature shock management and vibration handling. The BD615 is also IP66 certified for dust and waterproof and its design guarantees reliability in different environments.

CLEAR VOICE

Fitted with the latest digital encoding and correction technology, the BD615 caters for human voice to be transmitted clearer and without distortion, even over greater distances.

EXCELLENT PERFORMANCE

With a new, innovative design, the BD615 offers better performance than traditional analogue radios. With excellent reception sensitivity, it means the device can provide a stable communication with no interference.

ANALOGUE AND DIGITAL

The BD615 can support both analogue and digital modes on the same hardware. You can easily switch between dual operation modes which helps you to communicate with more devices.

Specifications of BD615

General data
Receiver
Transmitter
Environmental Specs

General data
Frequency Range	UHF:400-470 MHz; VHF:136-174 MHz
Channel Capacity	48
Zone Capacity	3
Channel Spacing	25 kHz/12.5 KHz
Operating Voltage	7.2 V(rated)
Battery	1500 mAh(Li-Ion)
Battey Life(5/5/90 Duty Cycle,High TX Power)	Digital:16 hours; Analog:12 hours
Frequency Stability	±0.5 ppm
Antenna Impedance	50 Ω
Dimensions(H×W×D) mm	108 mm×54.5 mm×28 mm
Weight	240 g (With standard battery and antenna)

Receiver
Sensitivity(Analog)	0.4 μV (20 dB SIN AD); 0.22 μV (typical)(12 dB SIN AD)
Sensitivity(Digital)	0.22 μV/BER 5%
Adjacent Channel Selectivity	TIA-603：60 dB @ 12.5kHz/70 dB @ 25 kHz
Intermodulation	TIA-603：65 dB @ 12.5 / 25 kHz
Spurious Response Rejection	TIA-603：65 dB @ 12.5 / 25 kHz
Blocking	ETSI 84 dB
Hum&Noise	40 dB @ 12.5 kHz ; 45 dB @ 25 kHz
Rated Audio Power Output	0.5 W
Rated Audio Distortion	≤3%
Audio Response	+1~-3 dB
Conducted Spurious Emission	<-57 dBm

Transmitter
RF Power Output	UHF1：4 W/1 W; VHF：5/1 W
FM Modulation	11K0F3E @ 12.5 kHz; 16K0F3E @ 25 kHz
4FSK Digital Modulation	12.5 kHz Data Only:7K60FXD; 12.5 kHz Data & Voice:7K60FXW
Conducted/Radiated Emission	-30 dBm > 1 GHz; -36 dBm < 1 GHz
Modulation Limiting	±2.5 kHz @ 12.5 kHz; ±5.0 kHz @ 25 kHz
FM Hum&Noise	40 dB @ 12.5 kHz; 45 dB @ 25 kHz
Adjacent Channel Power	60 dB @ 12.5 kHz; 70 dB @25 kHz
Audio Distortion	≤3%
Digital Vocoder Type	SELP
Digital Protocol	ETSI-TS102 361-1,-2,-3

Environmental Specs
Operating Temperature	-30℃~+60℃
Storage Temperature	-40℃~+85℃
ESD	IEC 61000-4-2(level 4); ±8 kV(Contact); ±15 kV(Air)
MIL Standard	MIL-STD-810 G
Dust & Water Protection	IP66
Humidity	MIL-STD-810 C/D/E/F/G
