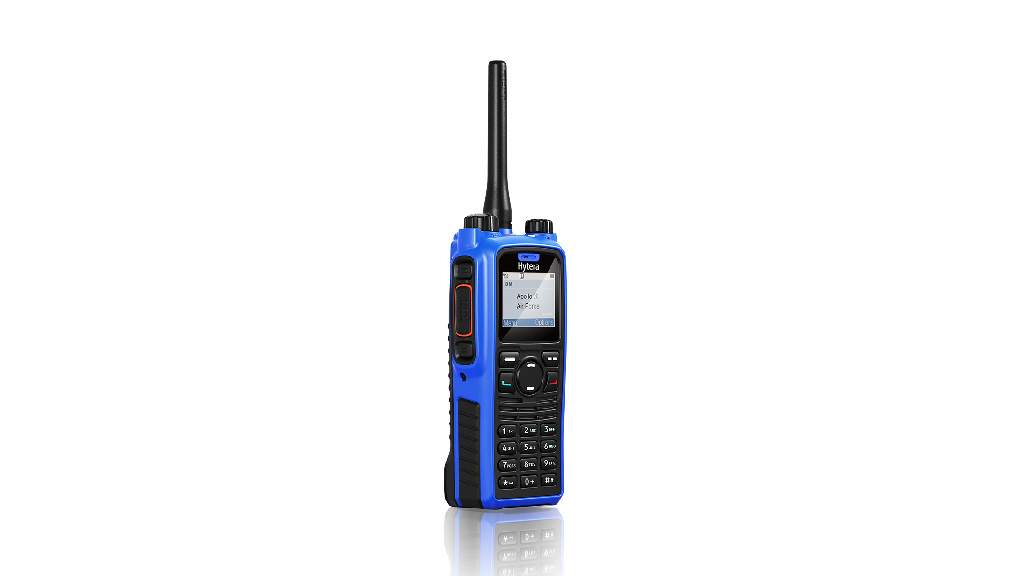

PD795Ex Intrinsically-safe digital two-way radio

Handheld | Handheld ATEX | DMR

Offering safe, reliable communications, the Hytera PD795 Ex handheld digital two-way radio with screen and full keypad has been designed to meet the European Atex directives, FM standards and IEC standards, perfect for tough environments that require advanced, intrinsically-safe devices.

Highlights of PD795Ex

PRIORITY INTERRUPT

Send a priority transmission to interrupt other calls, ideal for important, critical messages.

PSEUDO TRUNKING

Using pseudo-trunking, a Hytera patented technology, slots can be shared to improve capacity usage with transmissions either direct to handset or to repeater.

INTELLIGENT AUDIO

Combining noise cancelling technology to remove nusiance noise from the transmission, with powerful speakers to deliver clear communications.

GPS

Enabling location based services to improve safety and control.

ROAMING

This feature allows the radio to switch between sites on Multi-site Conventional and XPT systems, ensuring seamless communication.

EMERGENCY MODE

Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm. Also receive emergency notifications.

LONE WORKER

The lone worker feature uses a timer in the radio to measure inactivity. If the timer expires, a warning is issued, and if there is no response to that, the alarm is triggered.

MAN DOWN

The man down feature will let you know if the radio has been tilted past a certain angle. This may happen for instance if the radio user has fallen over or is unconscious or injured. The alarm will be triggered after a warning is issued to the user.

Specifications of PD795Ex

General data
Receiver
Transmitter
Environmental Specs
Location Service

General data
Frequency Range	UHF1: 400-470 MHz; UHF3: 350-400 MHz; VHF1: 136-174 MHz
Channel Capacity	1024
Zone Capacity	64
Channel Spacing	12.5kHz/20kHz/25kHz
Operating Voltage	7.4 V(rated)
Battery	1800 mAh (Li-Ion)
Battey Life(5/5/90 Duty Cycle,High TX Power)	Digital: about 17 hours/15 hours (GPS); Analog: about 14.5 hours/13 hours(GPS)
Frequency Stability	±1.5 ppm
Antenna Impedance	50 Ω
Dimensions(H×W×D) mm	141 mm x 55 mm x 39 mm
Weight	495 g
Display	160 x 128 pixels, 65535 colors, 1.8 inch, 6 rows
Anti-explosion levels	Class II, III Div 1, Group E, F, G T120℃ -20℃≤Ta≤50℃; Ex ib I; Ex ib IIC T4; Ex ib IIIC T120℃ IP5X; II 2D Ex ib IIIC T120℃ IP5X ; II 2G Ex ib IIC T4; ATEX: Class I, Zone 1 AEx/Ex ib IIC T4 Gb; FM/CSA: ; I M2 Ex ib; IECEx:

Receiver
Sensitivity(Analog)	0.22 μV(typical)(12 dB SIN AD); 0.3 μV(12 dB SIN AD); 0. 4 μV(20 dB SIN AD)
Sensitivity(Digital)	0.3 μV/BER 5%
Adjacent Channel Selectivity	ETSI: 60 dB @ 12.5 kHz / 70 dB @ 20&25 kHz; TIA-603: 60 dB @ 12.5 kHz / 70 dB @ 20&25 kHz
Intermodulation	TIA-603: 70 dB; ETSI: 65 dB
Spurious Response Rejection	TIA-603: 70 dB; ETSI: 70 dB
Blocking	84 dB
Hum&Noise	40 dB @ 12.5 kHz ; 43 dB @ 20 kHz ; 45 dB @ 25 kHz
Rated Audio Power Output	0.5 W
Rated Audio Distortion	≤3%
Audio Response	+1 ～-3 dB
Conducted Spurious Emission	<-57 dBm

Transmitter
RF Power Output	1 W
FM Modulation	11K0F3E @ 12.5 kHz; 14K0F3E @ 20 kHz; 16K0F3E @ 25 kHz
4FSK Digital Modulation	12.5 kHz Data & Voice: 7K60FXW; 12.5 kHz Data Only: 7K60FXD
Conducted/Radiated Emission	-30 dBm > 1 GHz; -36 dBm ≤1 GHz
Modulation Limiting	±2.5 kHz @ 12.5 kHz; ±4.0 kHz @ 20 kHz; ±5.0 kHz @ 25 kHz
FM Hum&Noise	40 dB @ 12.5 kHz; 43 dB @ 20 kHz; 45 dB @ 25 kHz
Adjacent Channel Power	60 dB @ 12.5 kHz; 70 dB @ 20/25 kHz
Audio Distortion	≤3%
Digital Vocoder Type	AMBE+2™ or SELP

Environmental Specs
Operating Temperature	-20 ℃～+50 ℃
Storage Temperature	-40 ℃～+85 ℃
ESD	IEC 61000-4-2（level 4）; ±15 kV（Air）; ±8 kV（Contact）
Dust & Water Protection	IP67
Humidity	MIL-STD-810 C/D/E/F/G
Vibration,Drop&Shock	MIL-STD-810 C/D/E/F/G

Location Service
Horizontal Position Accuracy	<10 m (95% probable); <5 m (50% probable)
Cold Start (Time to First Fix)	<1 minute
Hot Start (Time to First Fix)	<10 seconds
Note	Accuracy Specs are for long-term tracking(95th percentile values>5 satellites visible at a nominal-130dBm signal strength)
