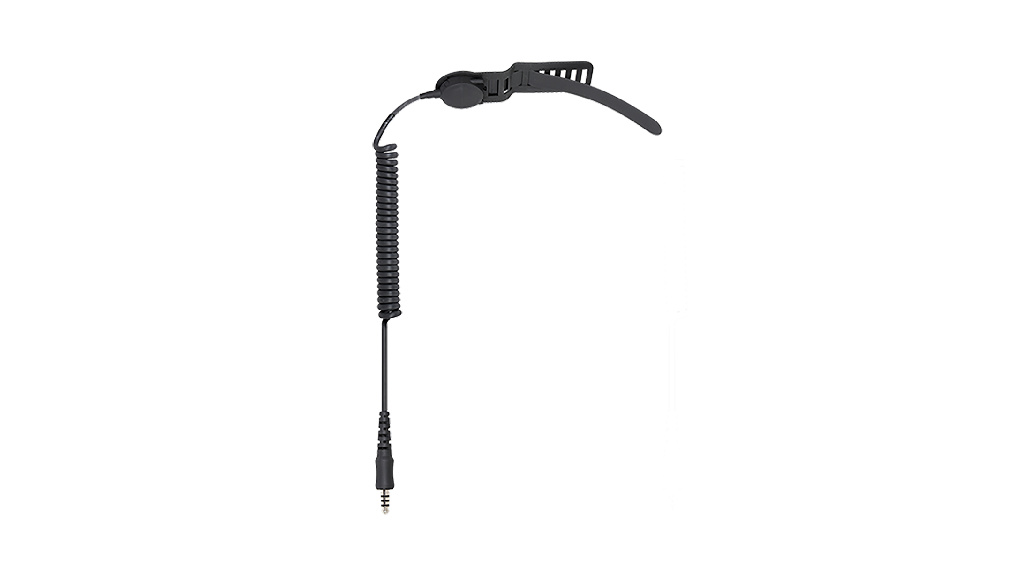

Atex Intrinsically Safe Microphone Earpiece

POA101-Ex

Complying with requirements for instrinsic safety this single speaker microphone earpiece enables easy and safe operation whilst working in challenging environments.

Specifications of POA101-Ex

Weight about 70 g
Color black
PTT Key none
VOX none
Emergency Key none
Connector QR4 connector
Microphone Sensitivity –35±4dB @ 1kHz 3.0V 2.2K, 0dB=1V/Pa
Speaker Power 200 mW (rated); 500 mW (max.)
Speaker Impedance 32 Ω±15% @ 1 kHz
Speaker Frequency Response 82±2 dB @ 1 kHz 0.2 W/50 cm
IP Rating IP55
Anti-explosion levels ATEX(Ex ib IIC T4 Ex ib IIIC T135℃)
Operating Temperature –20℃ to 50℃
Storage Temperature –20℃ to 65℃

* Die auf dieser Seite gezeigten Produktbilder, Spezifikationen, Funktionen und Zubehörteile können aufgrund fortlaufender Technologie-Upgrades und Produktionsverbesserungen Änderungen unterliegen. Um sicherzustellen, dass Sie das korrekte Produkt und kompatibles Zubehör erhalten, kontaktieren Sie bitte vor Bestellung das Hytera-Verkaufsteam für die neuesten Informationen. Hytera behält sich das Recht vor, Produktdetails ohne vorherige Ankündigung zu ändern.
