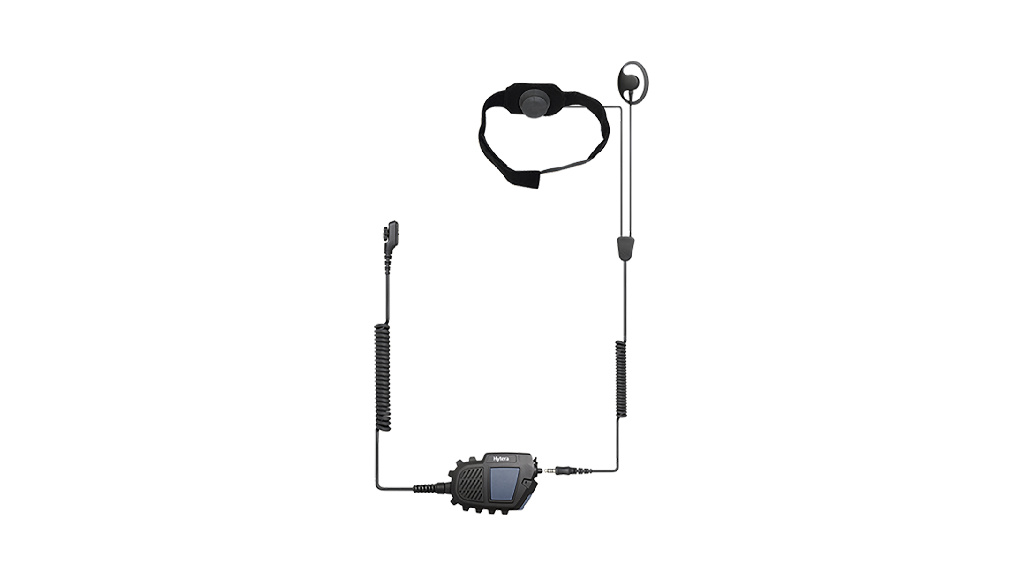

Atex Intrinsically Safe Throat-microphone headset with PTT Button

ELN10-Ex

Instrinsically safe throat-microphone headset with PTT. Consist of POA61-Ex and SM24N2-Ex.

Specifications of ELN10-Ex

Weight about 320g
Color blue & black
PTT Key available
VOX none
Emergency Key none
Connector 16-pin connector
Microphone Sensitivity –45 dB below 1 vot/G acceleration @ 1 kHz
Speaker Power 200 mW (rated); 500 mW (max.)
Speaker Impedance 800 Ω±15% @ 1 kHz
Speaker Frequency Response 55±2 dB @ 1 kHz 0.2 W/50 cm
IP Rating IP54
Anti-explosion levels ATEX(Ex ib IIC T4 Ex ib IIIC T135℃)
Operating Temperature –20℃ to 50℃
Storage Temperature –20℃ to 65℃

* Die auf dieser Seite gezeigten Produktbilder, Spezifikationen, Funktionen und Zubehörteile können aufgrund fortlaufender Technologie-Upgrades und Produktionsverbesserungen Änderungen unterliegen. Um sicherzustellen, dass Sie das korrekte Produkt und kompatibles Zubehör erhalten, kontaktieren Sie bitte vor Bestellung das Hytera-Verkaufsteam für die neuesten Informationen. Hytera behält sich das Recht vor, Produktdetails ohne vorherige Ankündigung zu ändern.
