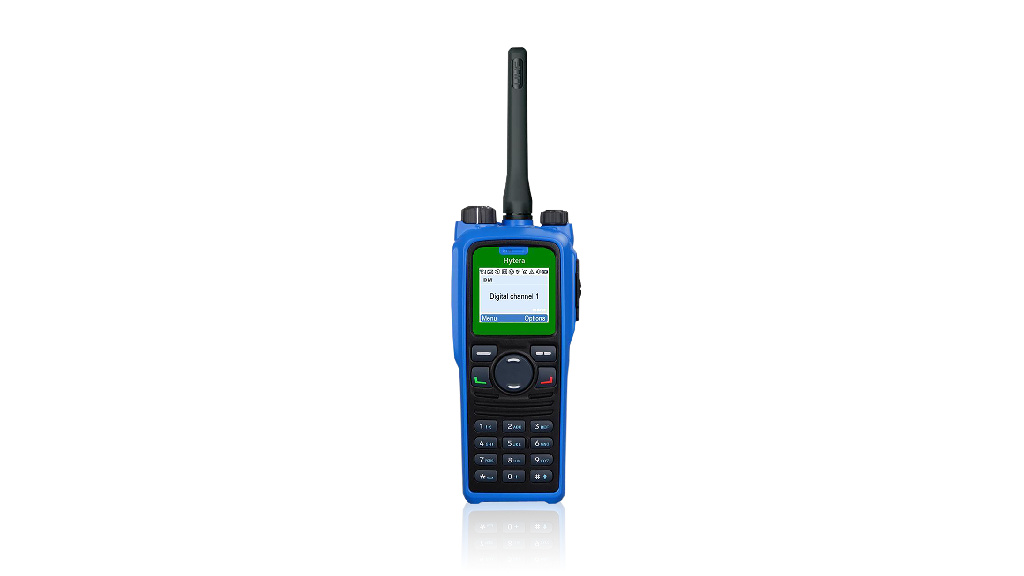

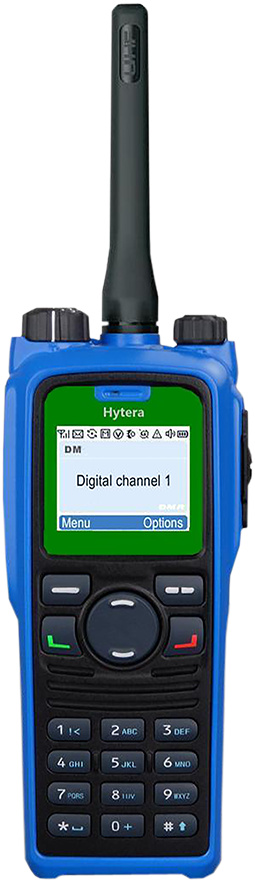

PD795IS Intrinsically-safe digital two-way radio

Handheld | Handheld ATEX | DMR

Offering safe, reliable communications, the Hytera PD795IS handheld digital two-way radio with screen and full keypad has been designed to comply with the highest 'ia' standards making this the ideal communication solution for working environments that require advanced, intrinsically-safe devices.

Highlights of PD795IS

PRIORITY INTERRUPT

Send a priority transmission to interrupt other calls, ideal for important, critical messages.

PSEUDO TRUNKING

Using pseudo-trunking, a Hytera patented technology, slots can be shared to improve capacity usage with transmissions either direct to handset or to repeater.

INTELLIGENT AUDIO

Combining noise cancelling technology to remove nusiance noise from the transmission, with powerful speakers to deliver clear communications.

GPS

Enabling location based services to improve safety and control.

ROAMING

This feature allows the radio to switch between sites on Multi-site Conventional and XPT systems, ensuring seamless communication.

EMERGENCY MODE

Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm. Also receive emergency notifications.

GPS Location

Positioning and tracking as standard, also including man down feature

Rugged and Reliable

Dust and waterproof, rated IP67, sustaining performance in harsh environments

Ergonomic Design

Separate functions and large textured keys intelligently positioned to enhance operation accuracy

Innovative Construction

Silicone encapsulated technology helps prevent the internal circuits from being damaged by intrusive liquid, inflammable dust and explosive gases

Clever Design

PD795IS display and shell adopt anti-static design from the dual material moulding technology, resulting in a reduction in the static discharge on the radio

Specifications of PD795IS

General data
Receiver
Transmitter
Environmental Specs
Location Service

General data
Frequency Range	UHF1: 400-470 MHz; VHF: 136-174 MHz
Channel Capacity	1024
Zone Capacity	64 (each with a maximum of 256 channels)
Channel Spacing	12.5 kHz/20 kHz/25 kHz
Operating Voltage	7.4 V(rated)

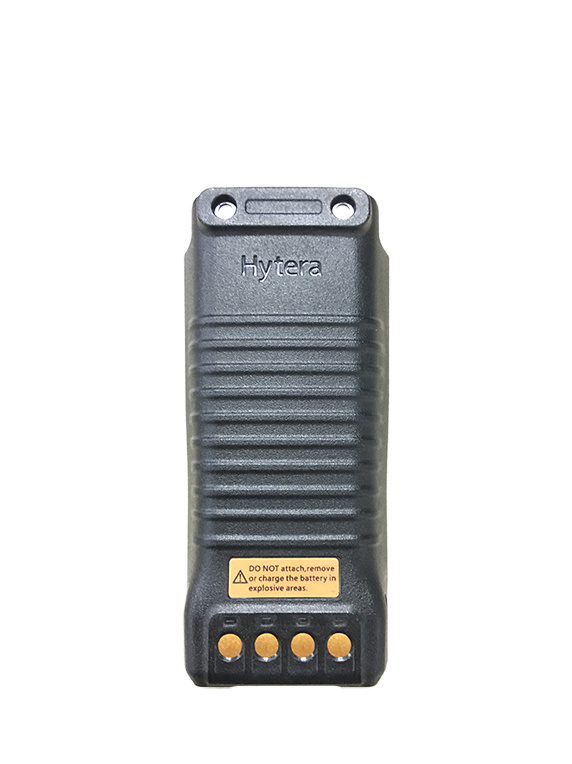

Battery	1800 mAh (Li-Ion)
Battey Life(5/5/90 Duty Cycle,High TX Power)	Analog: about 14.5 hours/13 hours(GPS); Digital: about 17 hours/15 hours (GPS)
Frequency Stability	±1.5 ppm
Antenna Impedance	50 Ω
Dimensions(H×W×D) mm	141 mm × 55 mm × 39 mm
Weight	505 g
Display	LCD display:160 x 128 pixels, 65536 colors, 1.8 inch
Anti-explosion levels	ATEX: Class I, Division 1, Groups A, B, C, D; Ex ia I; Ex ia IIC T3Ga; Ex ia IIIC T160°C ; FM/CSA: I M1 Ex ia I; IECEx: II 1D Ex ia IIIC T160°C; II 1G Ex ia IIC T3; T3B Class I, II, III, Division 1, Groups A, B, C, D, E, F, G; T3C

Receiver
Sensitivity(Analog)	0.22 μV(typical)(12 dB SIN AD); 0.3 μV(12 dB SIN AD); 0.4 μV(20 dB SIN AD);
Sensitivity(Digital)	0.3 μV/BER 5%
Adjacent Channel Selectivity	ETSI: 60 dB @ 12.5 KHz / 70 dB @ 20&25 kHz; TIA-603: 60 dB @ 12.5 kHz/ 70 dB @ 20&25 kHz
Intermodulation	TIA-603: 70; ETSI: 65 dB
Spurious Response Rejection	TIA-603: 70; ETSI: 70 dB
Blocking	84 dB
Hum&Noise	40 dB @ 12.5 kHz; 43 dB @ 20 kHz; 45 dB @ 25 kHz
Rated Audio Power Output	0.5 W
Rated Audio Distortion	≤3%
Audio Response	+1 ～-3 dB
Conducted Spurious Emission	<-57 dBm

Transmitter
RF Power Output	1 W
FM Modulation	11K0F3E @ 12.5 kHz; 14K0F3E @ 20 kHz; 16K0F3E @ 25 kHz
4FSK Digital Modulation	12.5 kHz Data & Voice: 7K60FXW; 12.5 kHz Data Only: 7K60FXD
Conducted/Radiated Emission	-30 dBm > 1 GHz; -36 dBm ≤1 GHz
Modulation Limiting	±2.5 kHz @ 12.5 kHz; ±4.0 kHz @ 20 kHz; ±5.0 kHz @ 25 kHz
FM Hum&Noise	40 dB @ 12.5 kHz; 43 dB @ 20 kHz; 45 dB @ 25 kHz
Adjacent Channel Power	60 dB @ 12.5 kHz; 70 dB @ 20/25 kHz
Audio Distortion	≤3%
Digital Vocoder Type	AMBE+2™ or SELP
Digital Protocol	ETSI-TS102 361-1,-2,-3

Environmental Specs
Operating Temperature	-20 ℃～+50 ℃ (hazardous environment); -30 ℃～+60 ℃ (non-hazardous environment)
Storage Temperature	-40 ℃～+85 ℃
ESD	IEC 61000-4-2（level 4）; ±15 kV（Air）; ±8 kV（Contact）
Dust & Water Protection	IP67
Humidity	Per MIL-STD-810 C/D/E/F/G
Vibration,Drop&Shock	Per MIL-STD-810 C/D/E/F/G

Location Service
Horizontal Position Accuracy	<10 m (95% probable); <5 m (50% probable)
Cold Start (Time to First Fix)	<1 minute
Hot Start (Time to First Fix)	<10 seconds
Note	Accuracy Specs are for long-term tracking(95th percentile values>5 satellites visible at a nominal-130dBm signal strength)
