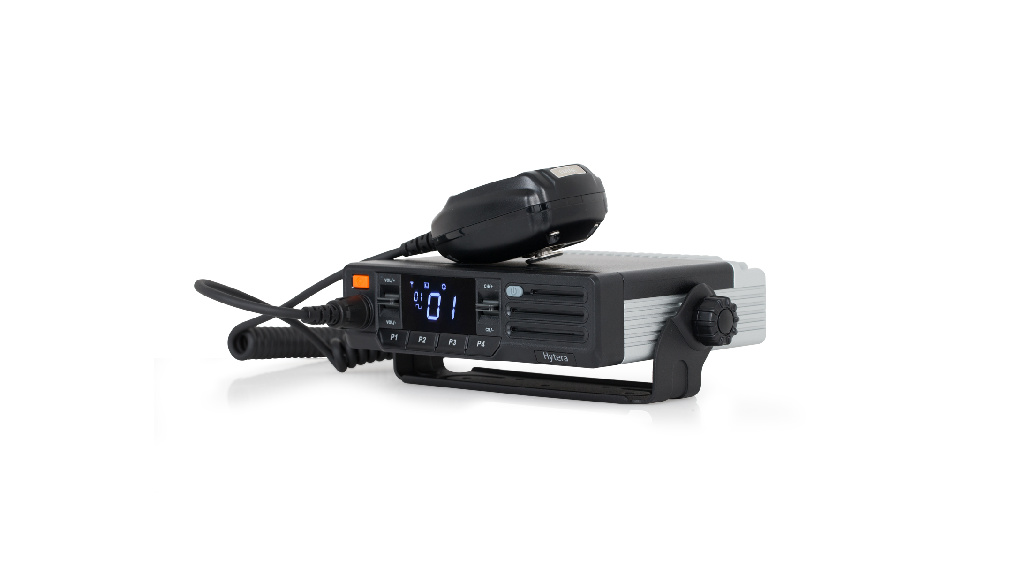

Specifications of MD615
- General data
- Receiver
- Transmitter
- Environmental Specs
General data |
Frequency Range |
UHF:400-470 MHz; VHF:136-174 MHz |
Channel Capacity |
48 (16 channels per zone ) |
Zone Capacity |
3 |
Operating Voltage |
13.6 V±15% |
Current Drain(Standby) |
around 0.3 A |
Current Drain(transmit) |
45 W<12 A; 25 W<8 A; 1 W<3 A; 5 W<5 A |
Current Drain(receive) |
< 1 A |
Dimensions(H×W×D) mm |
164 mm×43 mm×150 mm |
Weight |
1100 g |
Display |
Digital display |
Receiver |
|
Sensitivity(Analog) |
0.3 μV (12 dB SIN AD); 0.4 μV (20 dB SIN AD); 0.22 μV (Typical) (12 dB SIN AD); |
Sensitivity(Digital) |
0.3 μV/BER 5% |
Rated Audio Power Output(External) |
External(@8 ohm load) 8 W |
Max. Audio Power Output(Internal) |
Internal(@16 ohm olad)6 W |
Max. Audio Power Output(External) |
External(@8 ohm load)12 W |
Transmitter |
|
RF Power Output |
Low power version:1-25 W (UHF/VHF); High power version:5-45 W(UHF) / 5-50 W(VHF) |
Digital Vocoder Type |
AMBE+2™/SELP |
Environmental Specs |
|
Operating Temperature |
-30 ℃~+60 ℃ |
Dust & Water Protection |
IP54 |
Humidity |
MIL-STD-810 G standard |
Vibration,Drop&Shock |
MIL-STD-810 G standard |
* Product images, specifications, features, and accessories shown on this page are
subject to change due to ongoing technology upgrades and production improvements.
To ensure you receive the correct product and compatible accessories, please contact
the Hytera sales team for the latest information before placing an order. Hytera reserves
the right to modify product details without prior notice.
