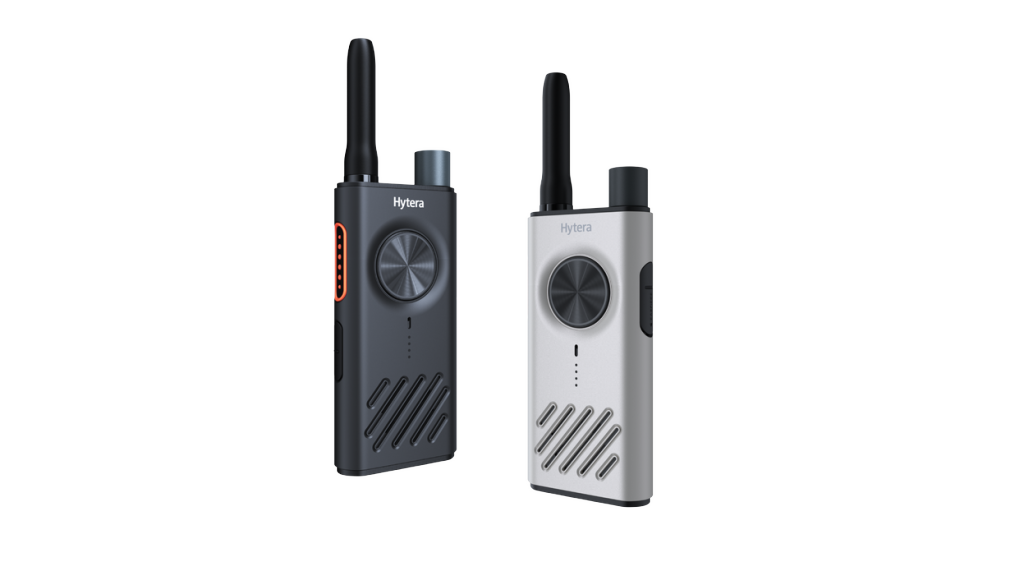

Specifications of S1
- General
- Receiver
- Transmitter
- Environment
General |
Model |
HYT-S31 (licensed)
HYT-S31 LF (PMR446 license free) |
Frequency Range |
UHF: 400-470 MHz
PMR446: 446 MHz |
Operating modes |
Analogue |
Channels & zones |
Channel capacity: 48
Zone capacity: 3
Channels per zone: 16 |
Channel Spacing |
12.5kHz / 20kHz / 25kHz |
Operating Voltage |
3.8 V (rated) |
Battery |
2200mAh Li-Polymer |
Battery Life (5/5/90 Duty Cycle, TX Power) |
15 hrs (Tx power 3W)
22 hrs (Tx power 1W)
27 hrs (Tx power 0.5W) |
Frequency Stability |
±2ppm |
Antenna Impedance |
50 Ω |
Dimensions (HxWxD) |
108 x 53 x 20 mm (without antenna) |
Weight (with battery and antenna) |
145 g (with belt clip)
135 g (without belt clip) |
Bluetooth |
BT 5.0 BLE (only data) |
Receiver |
|
Conducted Spurious Emission |
<-57 dBm |
Audio Response |
+1~-3 dB |
Rated Audio Distortion |
≤5% |
Sensitivity(Analog) |
0.14 μV (12 dB SINAD) |
Adjacent Channel Selectivity |
ETSI: 60 dB @12.5kHz / 70 dB @20/25kHz |
Intermodulation |
ETSI: 65 dB @12.5/20/25kHz |
Spurious Response Rejection |
ETSI: 70 dB @12.5/20/25kHz |
Blocking |
ETSI:84dB |
Hum&Noise |
40 dB @12.5 kHz
43 dB @20 kHz
45 dB @25 kHz |
Rated Audio Power Output |
0.5W |
Transmitter |
|
Audio Distortion |
≤3% |
Adjacent Channel Power |
60 dB @12.5 kHz
70 dB @20/25 kHz |
FM Hum&Noise |
40 dB@12.5 kHz;
43 dB@20 kHz;
45 dB@25 kHz |
Modulation Limiting |
±2.5 kHz@12.5 kHz;
±4.0 kHz@20 kHz;
±5.0 kHz@25 kHz |
Conducted/Radiated Emission |
-36 dBm<1 GHz
-30 dBm>1 GHz |
FM Modulation |
11K0F3E @12.5 kHz
14K0F3E @20 kHz
16K0F3E @25 kHz |
Power Output |
1W / 3W (400-470 MHz)
0.5 W (446MHz) |
Audio Response |
+1 ~ -3 dB |
Environment |
|
Storage Temperature |
-30°C to +70°C |
ESD |
±4kV (Contact)
±8kV (Air) |
Operating Temperature |
-10°C to +55°C |
