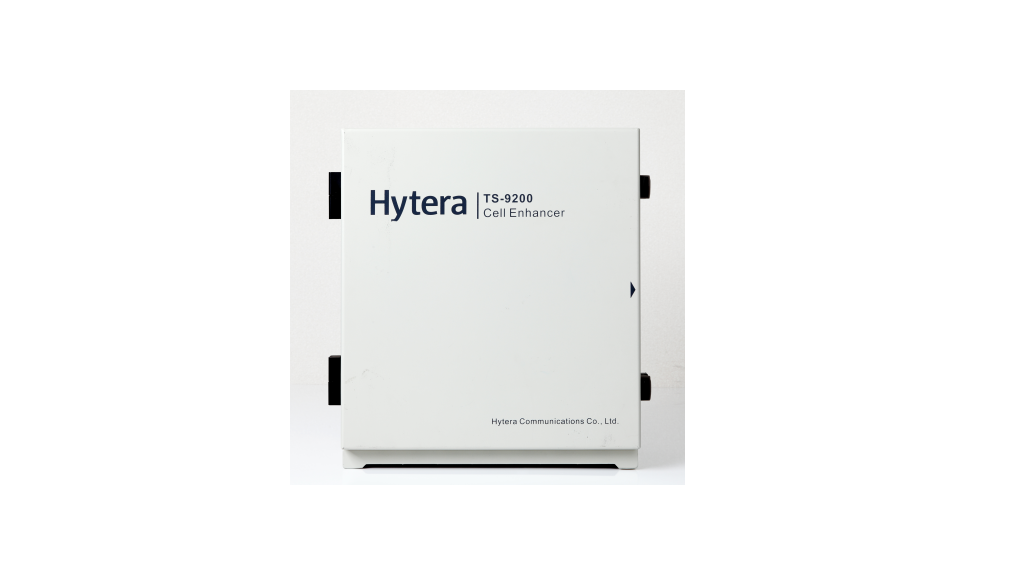

TS-9200 Bi-Directional Amplifier

TS-9200

As a Bi-Directional Amplifier (BDA), the TS-9200 is used to provide bidirectional communication between radio terminals and the base station in order to extend coverage in various environments. It can be used outdoors to extend the coverage range of base station, making communication services available in areas with no or weak signals. Additionally, it can be used indoors as the signal source to improve signal strength. With a multichannel selecting unit, the TS-9200 BDA can selectively amplify the signals, ensuring the frequency purity of repeated signals and the stability of output power. It has excellent compatibility and is now widely used in trunking communication systems such as TETRA, DMR, and MPT-1327, as well as conventional communication systems.

Highlights of TS-9200

Functions

Modularised design, easy for maintenance Flexible monitoring (GSM, ethernet or serial port), convenient for maintenance and management. SDR (Software Defined Radio) technology, filtering irrelative and ensuring stable output power & clean spectrum output. Function of Channel Switch. With this function the channel will automatically be shut down if there is no call in the coverage, which can strongly reduce the impact of interfering signals. Dustproof, & waterproof, for use in harsh environments. With a high-linearity power amplifier and high-rejection duplexer, the TS-9200 is capable of rejecting intermodulation and spurious signals;

Specifications of TS-9200

  • Integrated RF BDA
  • Analog Fiber Optical BDA（Wireless Coupling） Frequency Range
  • Analog Fiber Optical BDA（Direct Coupling）
  • Digital Fiber Optical BDA（Wireless Coupling）
  • Digital Fiber Optical BDA（Direct Coupling )
Integrated RF BDA
Frequency Range VHF/ 330-470MHz/800MHz
Amplifier Type Band-selective / Channel-selective(8 channels)
Protection Ip65
Weight 25kg
Dimension (W*H*L） 357mm×217mm×453mm
Power Supply Standard:AC220V±20%，50±5HzOptional: DC-40～-55
Connector Type N-connector (female)
Environment Humidity ≤ 95% RH
Operating Temperature -25℃～+55℃
Input\Output Impedance 50Ω
Signal Delay ≤ 12us (Channel-selective) ≤ 6us (Band-selective)
Power Consumption ≤ 230W
Downlink Gain 95±3dB(Channel-selective) 90±3dB(Band-selective)
Downlink Max Input Level ≤-10dBm
Downlink Max Output Power 40dBm( UHF/800M) 37dBm(VHF)
Uplink Gain 95±3dB(Channel-selective) 90±3dB(Band-selective)
Uplink Max Input Level ≤-10dBm
Uplink Max Output Power 33dBm( UHF/800M) 30dBm (VHF)
Analog Fiber Optical BDA（Wireless Coupling） Frequency Range
Frequency Range VHF/ 350-470MHz/800MHz
Amplifier Type Band-selective / Channel-selective(8 channels)
Protection Master Unit:IP40, Slave Unit:IP65
Weight Master Unit≤25kg Slave Unit≤25kg
Dimension (W*H*L） 400*200*530mm
Power Supply Standard:AC220V±20%, 50±5Hz,Optional: DC-40～-55V
Connector Type N-connector (female)
Monitoring Mode Standard Interface:RS232 Optional: GSM/Ethernet
Environment Humidity ≤ 95% RH
Operating Temperature -25℃ ~+55℃
Input\Output Impedance 50Ω
Noise Factor ≤5dB
Signal Delay ≤18us (Channel-selective) ≤ 6us (Band-selective)
Power Consumption Master Unit≤90W, Slave Unit≤130W
Downlink Gain 95±3dB(Channel-selective) 90±3dB(Band-selective)
Downlink Max Input Level ≤-10dBm
Downlink Max Output Power 37dBm
Uplink Gain 90±3dB(Channel-selective) 85±3dB(Band-selective)
Uplink Max Input Level ≤-10dBm
Uplink Max Output Power 30dBm
Analog Fiber Optical BDA（Direct Coupling）
Frequency Range 350-470MHz/800MHz
Amplifier Type Band-selective
Protection Master Unit:IP40, Slave Unit:IP55
Weight Master Unit≤8kg Slave Unit≤25kg
Dimension (W*H*L) Master Unit:310*133*483mm Slave Unit:400*200*530mm
Power Supply Standard:AC220V±20%, 50±5Hz, Optional: DC-40 ~-55V
Connector Type N-connector (female)
Monitoring Mode Standard Interface:RS232 Optional: GSM/Ethernet
Environment Humidity ≤ 95% RH
Operating Temperature -25℃～+55℃
Input\Output Impedance 50Ω
Noise Factor ≤5dB
Signal Delay ≤ 18us (Channel-selective) ≤ 6us (Band-selective)
Power Consumption Master Unit≤20W, Slave Unit≤130W
Downlink Gain 55±3dB
Downlink Max Input Level ≤10dBm
Downlink Max Output Power 37dBm
Uplink Gain 50±3dB
Uplink Max Input Level ≤-10dBm
Uplink Max Output Power -10dBm
Digital Fiber Optical BDA（Wireless Coupling）
Frequency Range 350-470MHz/800MHz
Amplifier Type 16 or 24 Channels selective
Protection Master Unit:IP40 ,Slave Unit:IP55
Weight Master Unit≤25kg, Slave Unit≤25kg
Dimension (W*H*L） 400*200*530mm
Power Supply Standard:AC220V±20%, 50±5Hz, Optional: DC-40～-55V
Connector Type N-connector (female)
Network Star, chain type, ring type
Monitoring Mode Standard Interface:RS232 Optional: GSM/Ethernet
Environment Humidity ≤ 95% RH
Operating Temperature -25℃～+ 55℃
Input\Output Impedance 50Ω
Noise Factor ≤5dB
Signal Delay ≤ 18us；Provide automatic and manual delay compensation function
Power Consumption Master Unit≤90W, Slave Unit≤130W
Downlink Gain 95±3dB(Channel-selective)
Downlink Max Input Level ≤-10dBm
Downlink Max Output Power 37dBm
Uplink Gain 90±3dB(Channel-selective)
Uplink Max Input Level ≤-10dBm
Uplink Max Output Power 30dBm
Digital Fiber Optical BDA（Direct Coupling )
Frequency Range 350-470MHz
Amplifier Type 16 Channels selective
Protection Master Unit:IP40, Slave Unit:IP55
Weight Master Unit≤8kg, Slave Unit≤25kg
Dimension (W*H*L） Master Unit:310*133*483mm Slave Unit:400*200*530mm
Power Supply Standard:AC220V±20%, 50±5Hz, Optional: DC-40～-55V
Connector Type N-connector (female)
Networking Star, chain type, ring type
Monitoring Mode Standard Interface:RS232 Optional: GSM/Ethernet
Environment Humidity ≤ 95% RH
Operating Temperature Master Unit: -10℃～+ 50℃ Slave Unit: -25℃～+55℃
Input\Output Impedance 50Ω
Noise Factor ≤5dB
Signal Delay ≤ 18us；Provide automatic and manual delay compensation function
Power Consumption Master Unit≤90W, Slave Unit≤130W
Downlink Gain 50dB(Channel-selective)
Downlink Max Input Level ≤-10dBm
Downlink Max Output Power 37dBm
Uplink Gain 50dB(Channel-selective)
Uplink Max Input Level ≤-10dBm
Uplink Max Output Power -10dBm

* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
