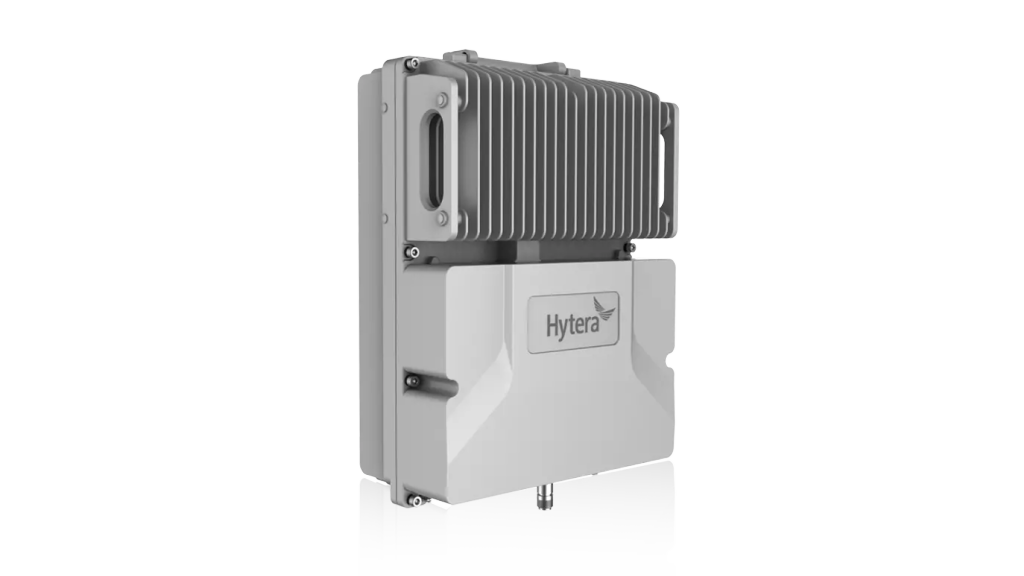

DS-9300 Bi-Directional Amplifier

DS-9300

BDA (Bi-Directional Amplifier) is used to provide bi-directional communication between radio terminals and the base station in order to fit in any kind of environments. It can be used outdoors to extend the coverage range of base stations, making communication services available in areas with no or weak signals. Additionally, it can be used indoors as the signal source to improve signal strength. With a multichannel selecting unit, BDA can selectively amplify the signals, ensuring the frequency purity of repeated signals and the stability of output power. It has been widely used in scenarios such as tunnels, along roads and railways, indoor areas, outskirt areas and congested residential areas. It has excellent compatibility, widely used in trunking communication systems such as DMR, TETRA, APCO25, MPT-1327, as well as conventional communication systems.

Highlights of DS-9300

Specifications of DS-9300

  • Integrated RF BDA
  • Digital Fiber Optical BDA
Integrated RF BDA
Dimensions(L×W×H)mm 188*162*28
Powered Supply Input: AC 220V, 50/60Hz, 0.5A Output: DC 5.0V/2.5A
Power Consumption 15W(Max.)
RF Connector SMA-F, 50Ω
Dust & Water Protection IP40
Frequency Range 350M：361-366MHz(Downlink), 351-356MHz(Uplink) 860M：851-866MHz(Downlink), 806-821MHz(Uplink)
Max. Output Uplink：25±2dBm Downlink：25±2dBm
Max. Gain Uplink：75±3dB,Uplink：70±3dB(cable-access）
Noise Figure ≤6dB
Max. Allowable Input Level Downlink： -10dBm;Uplink：-10dBm
Frequency Offset 5×10^-8
With Fluctuations In ≤5dB
Time Delay ≤1.5μs
Mean Time Between Failures(MTBF) ≥50000h
Digital Fiber Optical BDA
Dimensions(L×W×H)mm Donor Unit：320*442*44(cable-access),385*300*142( wireless-access) Remote Unit：385*300*142
Powered Supply AC 220V±20%, 50±5Hz
Power Consumption Remote Unit：≤100W Donor Unit：≤30W(cable-access),≤100W(wireless-access)
RF Connector N/F, 50Ω
Dust & Water Protection Donor Unit：IP20 Remote Unit：IP65 (And wireless-access donor unit )
Frequency Range 320-400MHz 400-470MHz 5MHz Working bandwidth
Channel Bandwidth 25kHz
Channel Capacity 1～16
Max. Output Downlink：37±2dBm Uplink：-10±2dBm(cable-access),30±2dBm(wireless-access)
Max. Gain Downlink：50±3dB,Uplink：45±3dB (cable-access) Downlink：90±3dB,Uplink：85±3dB (wireless-access)
Gain Adjustment Range 30dB/1.0dB
Gain Adjustment Error When the gain is 0 ~ 20dB, the error is less than 1dBWhen the gain is 21 ~ 30dB, the error is less than 1.5db
Noise Figure ≤5dB
Max. Allowable Input Level Downlink：10dBm (cable-access);-10dBm(wireless-access) Uplink：-10dBm
With Fluctuations In ≤3dB
Time Delay ≤35μs
Mean Time Between Failures(MTBF) ≥100000h
