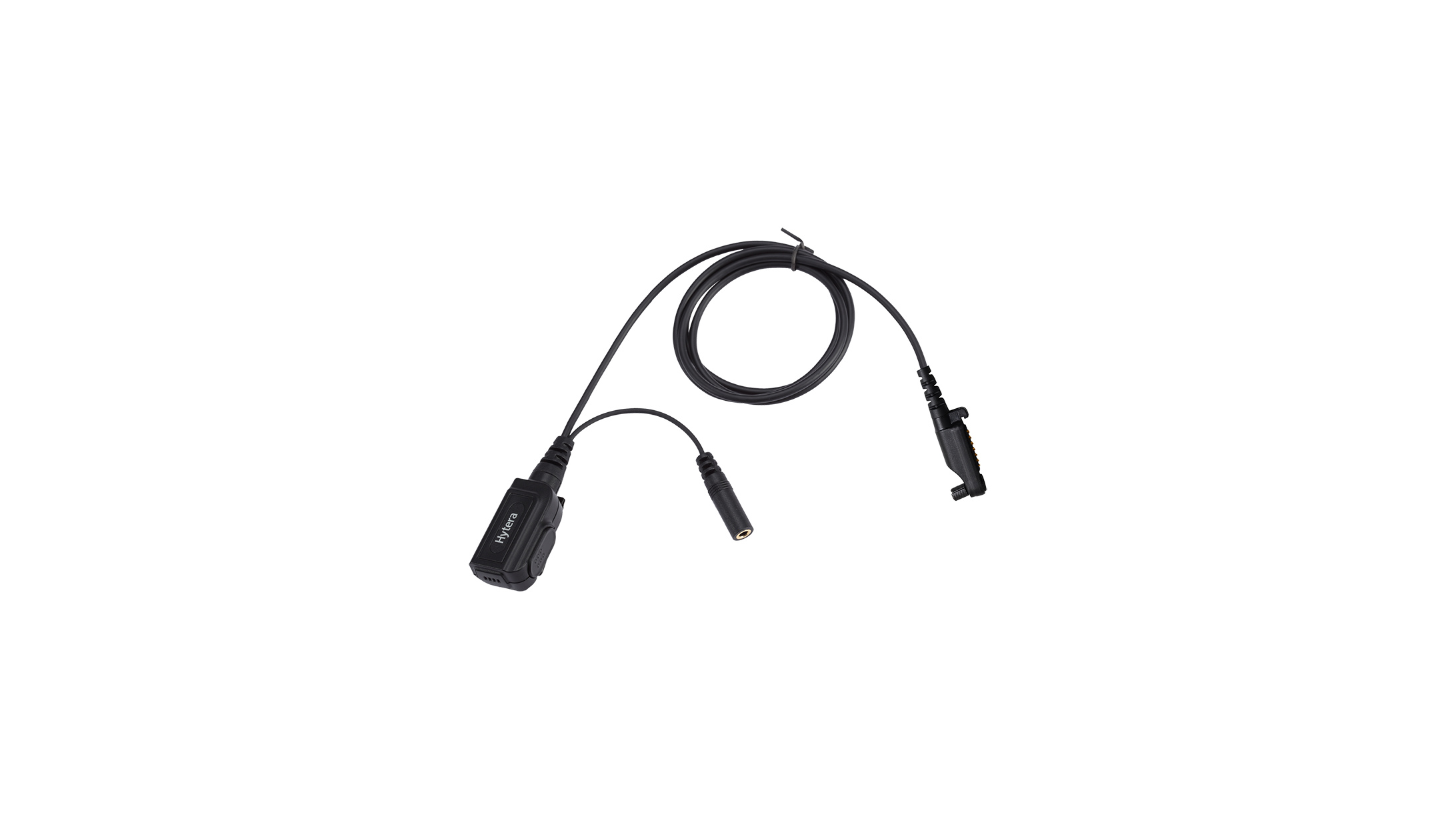

PTT and Microphone cable (for use with receive-only Earpiece) -- for HP5, HP6, HP7, PD6, X1 series and PDC680, PDM680, PTC680, Z1p, PT590

ACN-02P

Small IP54 compliant base set with PTT button and microphone that connects to the radio with a 1m straight cable. short flying lead from the MIC/PTT with common 3.5 mm jack socket enables earbuds to be connected directly to the ACN-02 can be used with a range of Hytera earbuds such as EA-01, ES-01, ES-02, EH-01, EH-02 or EHS20 easy replace earbuds for comfort and hygiene purposes MIC/PTT unit can be clipped for comfortable wearing

Specifications of ACN-02P

Weight about 35 g
Color black
PTT Key available
VOX Determined by the terminal
Emergency Key none
Accessory Interface 3.5mm plug
Connector 13pin
Microphone Sensitivity –45±3 dB @ 1 kHz 3.0 V 2.2 KΩ, 0 dB = 1 V/Pa
Speaker Power /
Speaker Impedance /
Speaker Frequency Response /
Certification CE, UL913
IP Rating IP54
Anti-explosion levels /
Operating Temperature –20℃ to 60℃
Storage Temperature -40~85℃
Note Compatible with receive-only earpiece(φ3.5mm jack)
