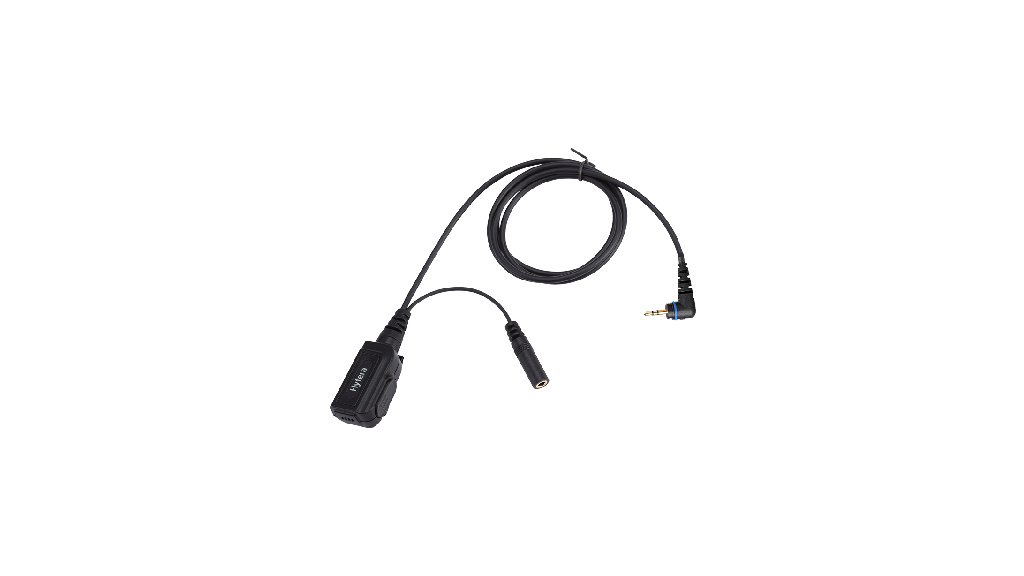

PTT and Microphone cable (for use with receive-only Earpiece) -- for PD3 series

IP54 compliant base set with PTT button and microphone 1. can be used with a range of Hytera earbuds such as ES-01, ES-02, EH-01, EH-02 or EHS20 2. common 3.5 mm jack socket enables earbuds to be connected directly to the ACS-01 3. easy replace earbuds for comfort and hygiene purposes unit can be clipped for comfortable wearing

Specifications of ACS-01


Weight	about 29 g
Color	black
PTT Key	available
VOX	none
Emergency Key	none
Microphone Sensitivity	–45±3 dB @ 1 kHz 3.0 V 2.2 KΩ, 0 dB = 1 V/Pa
IP Rating	IP54
Operating Temperature	–20℃ to 60℃
Storage Temperature	–40℃ to 75℃
Note	Compatible with receive-only earpiece(φ3.5mm jack)
