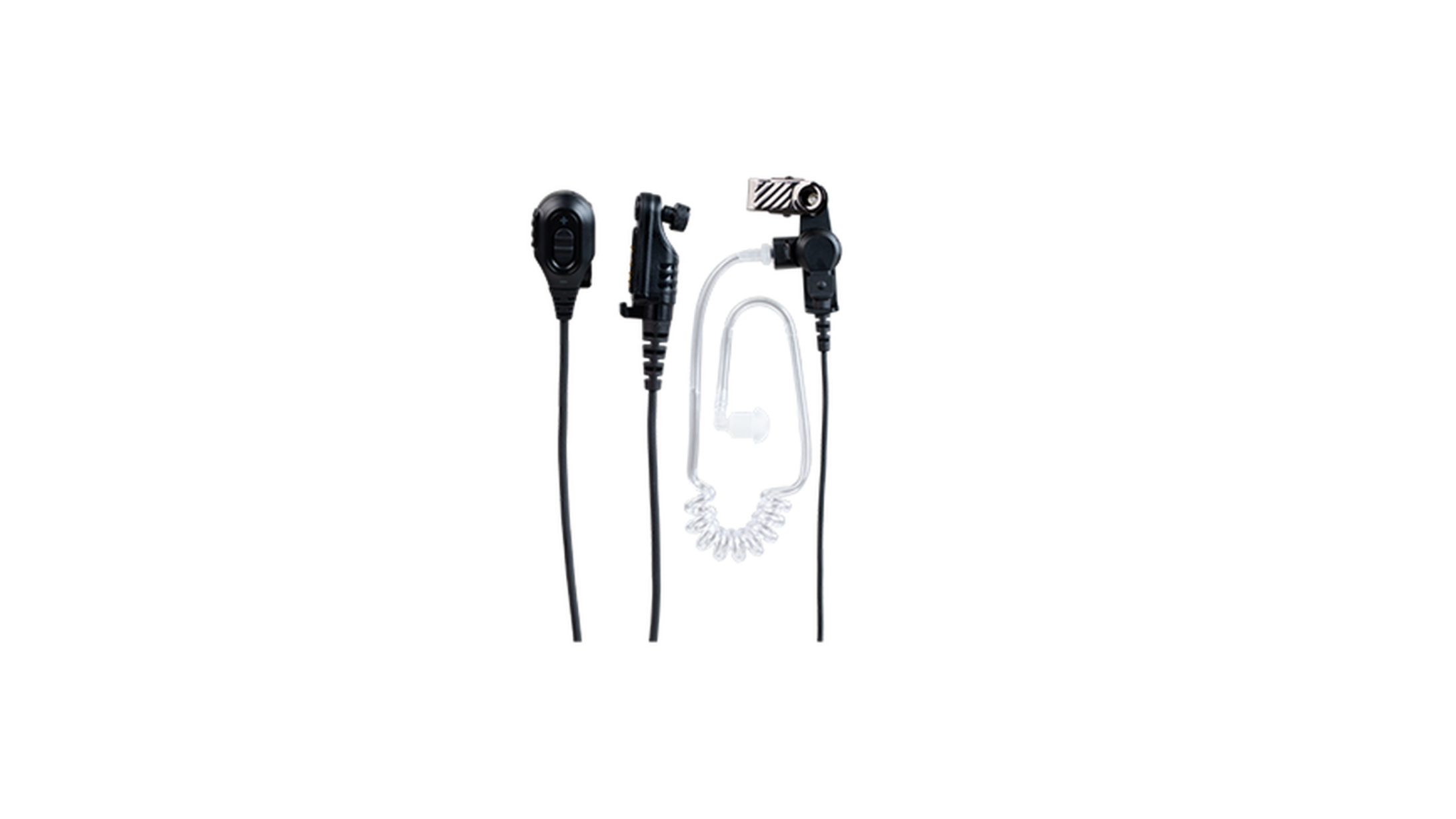

Earpiece with Acoustic Tube and In-line PTT (Black) -- for HP5, HP6, HP7, PD6, X1 series and PDC680, PDM680, PTC680, Z1p, PT590

EAN24-P

Earpiece with detachable transparent acoustic tube, clip , in-line PTT and microphone (Black). With an integrated chip for verification as an original Hytera accessory. Separate PTT and speaker for discreet communication Easy to hide the PTT line under clothing Flexible transparent tube for covertness and comfort The soft silicone eartip reduce fatigue Detachable transparent tube for easy replacement PTT on MIC design Volume control or PTT/VOX switch possible

Specifications of EAN24-P

Weight about 55 g
Color black
PTT Key available
VOX Determined by the terminal
Emergency Key none
Microphone Sensitivity -42±3dB@1kHz 3.0v 2.2k 0dB=1V/Pa
Speaker Power 10 mW (rated);300 mW (max.)
Speaker Impedance 220Ω±15%@1kHz
Speaker Frequency Response 116±3dB@1kHz
Certification CE
IP Rating none
Anti-explosion levels /
Operating Temperature -20℃ to 60℃
Storage Temperature -40℃ to 75℃
Note /
