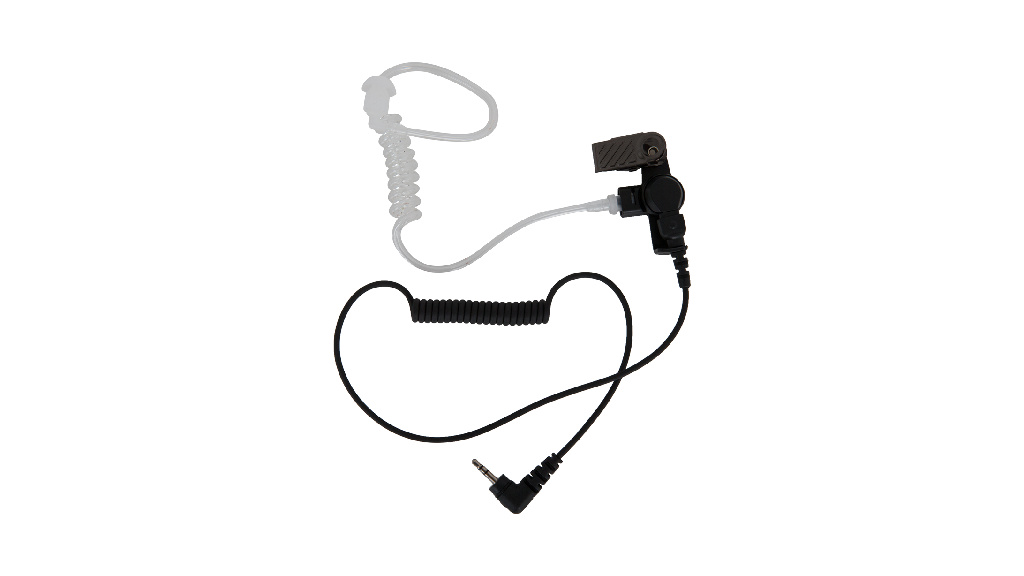

Earpiece with Acoustic Tube (Receive Only)

EAS03

Reliable and ergonomically designed earpiece with acoustic tube to be used with various base sets (2.5mm jack plug). for BD5, PD4, PD5, PD6, PD78X, X1 series, Z1p in combination with SM26N2/SM26N4/SM26M1 (which has 2.5 mm audio jack socket)

Specifications of EAS03

Weight about 20g
Color black
PTT Key none
VOX none
Emergency Key none
Speaker Power 10 mW (rated); 300 mW (max.)
Speaker Impedance 220Ω±15%@1.0kHz
Speaker Frequency Response 117±3dB@1kHz at 10mw
IP Rating none
Operating Temperature –20℃ to 60℃
Storage Temperature –40℃ to 85℃
Note Work with SM26 series remote speaker microphone
