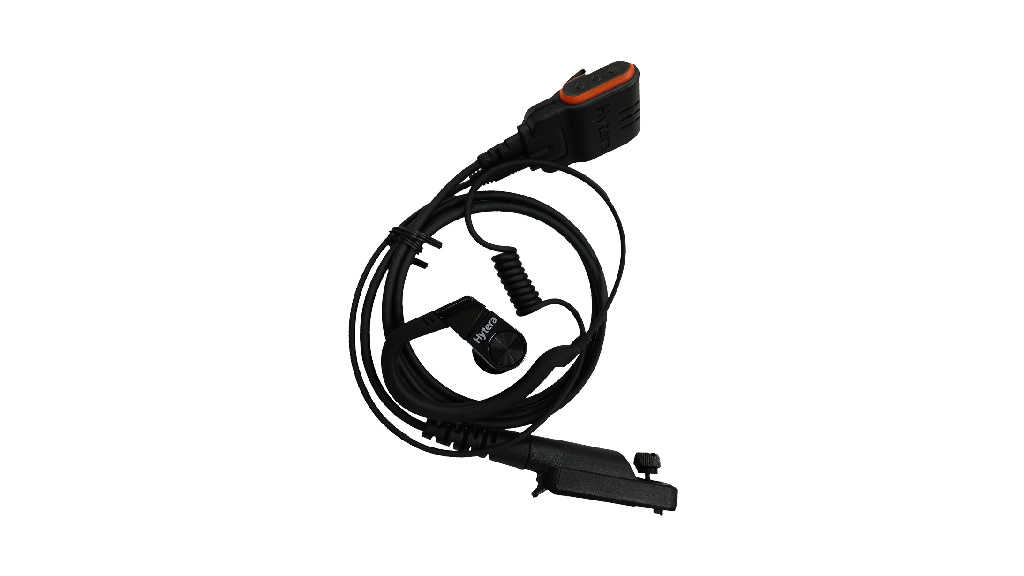

Specifications of EHN33
- Specifications
| Specifications | |
|---|---|
| Weight | about 56 g |
| Color | black |
| PTT Key | available |
| PTT cycles | ≥ 100,000 |
| VOX | determined by the terminal |
| Emergency Key | none |
| Radio connector | 13-pin connector |
| Earpiece connector | 3.5 mm jack |
| Microphone sensitivity | -43 ±3 dB @1kHz 3.0V 2.2K, 0dB=1V/Pa |
| Microphone impedance | ≤ 2.2 kΩ @ 1 kHz |
| Speaker power | 10 mW (rated); 20 mW (max.) |
| Speaker impedance | 32 Ω±15% @ 1 kHz |
| Speaker frequency response | 110±3 dB @ 1 kHz at 0.179 V |
| Operating voltage | 1 - 10V DC |
| Ingress protection | none |
| Operating temperature | –20℃ to 60℃ |
| Storage temperature | –40℃ to 85℃ |
| suitable for | Multi-mode advanced radios PDC760, PTC680, PTC70 |
* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
