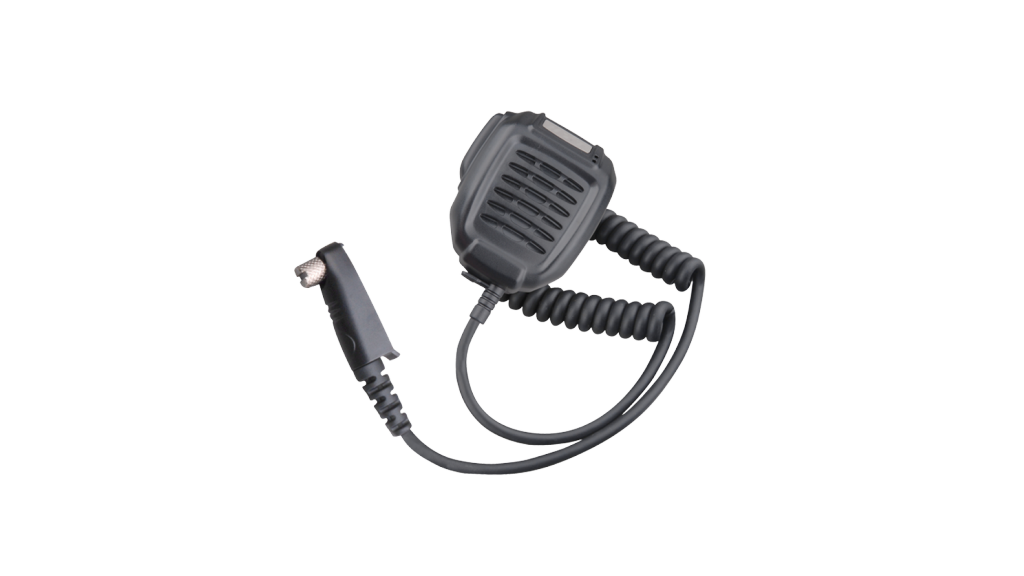

SM08N1 (EOL) Remote Speaker Microphone -- EOL, out of stock

SM08N1 (EOL)

DISCONTINUED - no replacement User-friendly and compact IP54 remote speaker microphone with 3.5mm audio jack (for use with receive-only earphones)

Specifications of SM08N1 (EOL)

  • Specifications
Specifications
Dimensions 74 x 58 x 30 mm
Weight about 150 g
Color black
PTT Key available
Emergency Key none
Audio interface 3.5.mm jack
Radio connector 13 pin
Microphone Sensitivity -40 ±3dB @1kHz 3.0V 2.2K; 0dB=1V/Pa
Speaker Power 1W (rated) , 2W (max)
Speaker Impedance 16Ω ±15% @1.5kHz
Speaker Frequency Response 83 ±3dB @1kHz at 1W/30cm
IP Rating IP54
Operating Temperature -30℃ to 60℃
Storage Temperature -40℃ to 85℃

* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
