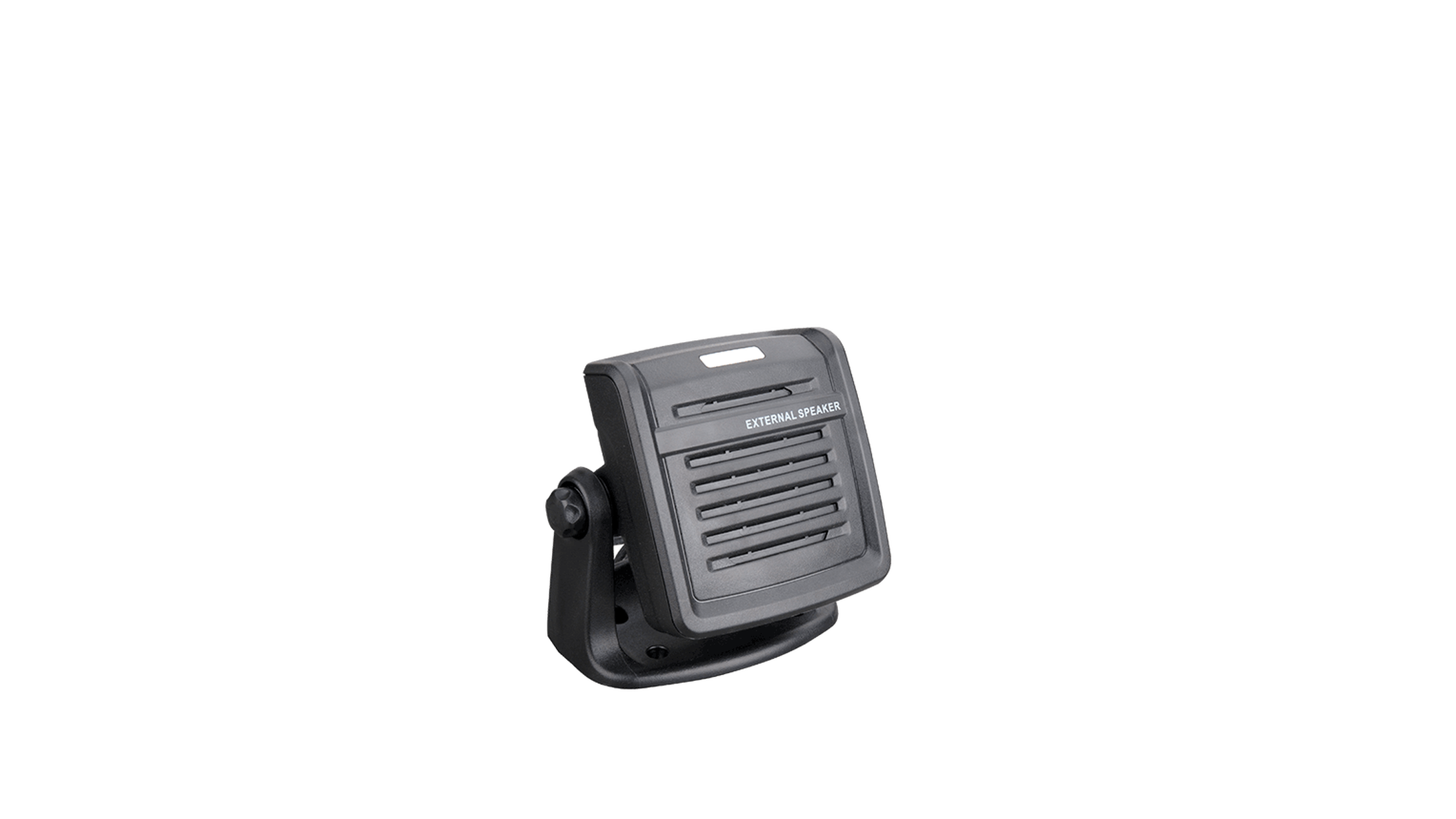

SM09S1 External speaker with audio amplifier for Hytera car kits

External speaker with clear voice output, with built-in audio amplifier to be used with Hytera car kits. Flexible and easy to install Adjustable bracket for your actual requirements

Specifications of SM09S1


Dimension	155.6 mm x 92.5 mm x 140.2 mm
Weight	about 774g
Color	black
Cable length	2 m
Radio connector	Car kit SPK plug (4-pin aviation connector)
Speaker power	15 W (rated); 20 W (max.)
Speaker impedance	8 Ω ±15% @500 Hz
Speaker frequency response	88 ±2 dB @800 Hz (1 W/1 m) @ 600, 700, 800, 900 Hz AVE
Ingress protection	none
Operating temperature	-30°C to 70°C
Storage temperature	-40°C to 85°C
Suitable car kits	CK02, CK02-E, CK03, CK03-E, CK05
