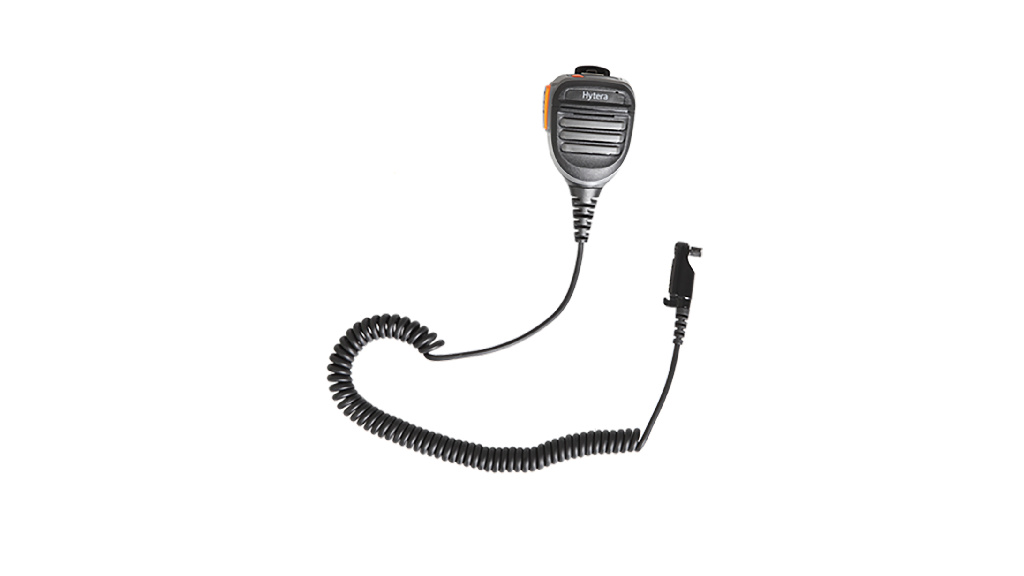

Compact and lightweight IP54 compliant remote speaker microphone 1. with emergency button and 2.5mm external audio connector 2. audio jack for use with earpieces EAS03, EHS17 3. with 360° swivel metal clip. Applicable for PD605, PD665, PD685, X1e, X1p, Z1p
Dimensions | 76.85* 60.55* 34mm |
Weight | about 150 g |
Color | black & grey |
PTT Key | available |
Emergency Key | available |
Microphone Sensitivity | –42±3 dB @ 1 kHz 3.0 V 2.2 K, 0 dB = 1 V/Pa |
Speaker Power | 2W (rated); 3W (max.) |
Speaker Impedance | 20 Ω±15% @ 1.5 kHz |
Speaker Frequency Response | 97±3 dB @ 1 kHz 2 W/30 cm |
IP Rating | IP54 |
Operating Temperature | –30℃ to 60℃ |
Storage Temperature | –40℃ to 85℃ |
