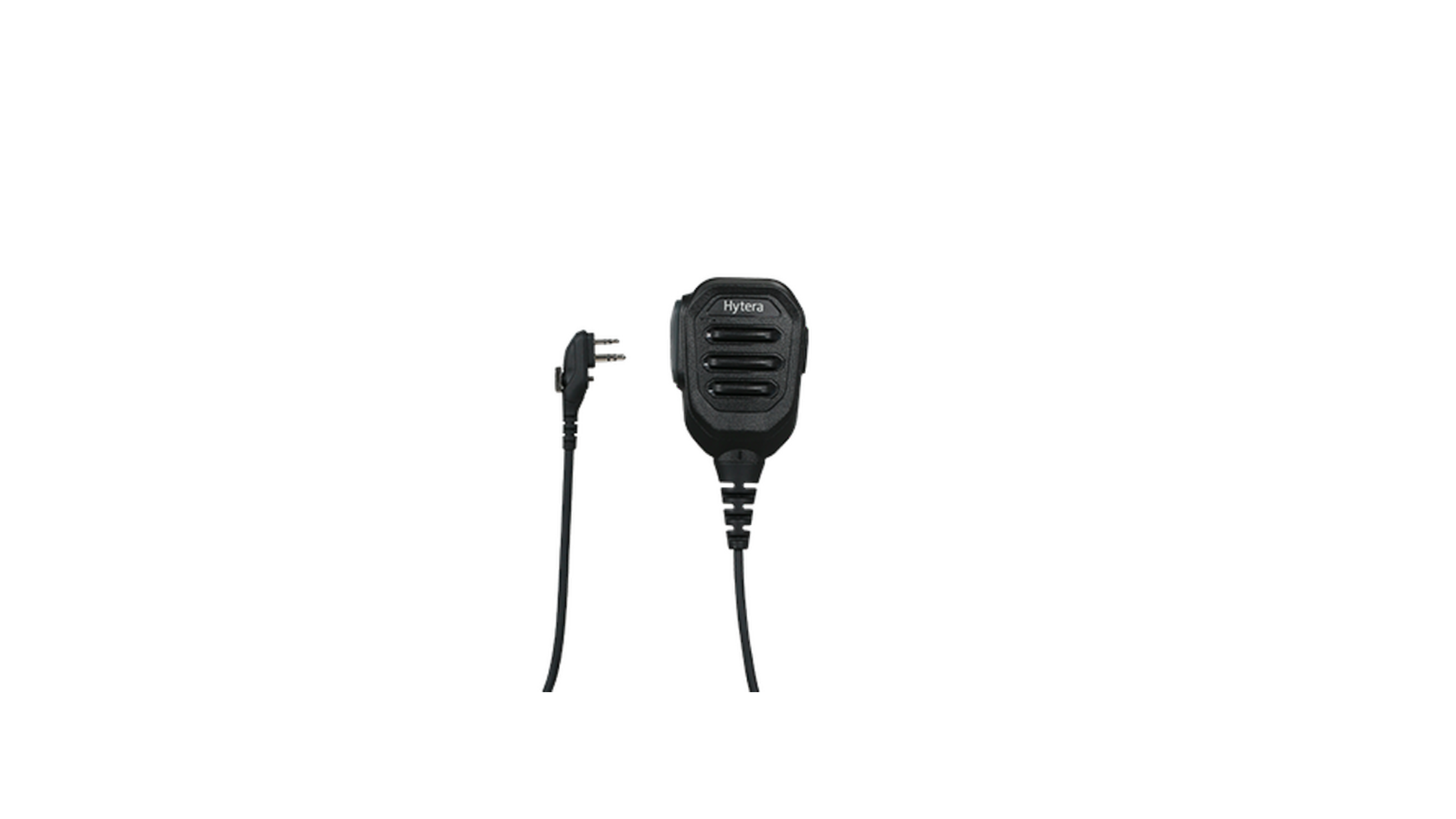

Remote Speaker Microphone (with 3.5mm jack) for BD5/PD4/PD5 series

SM50M1

User-friendly and compact IP54 remote speaker microphone with 3.5mm audio jack (for use with receive-only earphones) with Hytera Logo (RoHS) (REACH)

Specifications of SM50M1

Dimensions 81.5* 58.5* 43.0mm
Weight about 190 g
Color black and gray
PTT Key available
Emergency Key none
Microphone Sensitivity -45±3 dB@1 kHz 3.0 V 2.2 kilohm;0 dB=1 V/Pa
Speaker Power 2 W (rated); 3 W (max.)
Speaker Impedance 16 Ω±15%@2 kHz
Speaker Frequency Response 95±3 dB@1 kHz 5.66 V@30 cm
IP Rating IP67 (with accessory jack cover closed)
Operating Temperature -20℃ to 60℃
Storage Temperature -40℃ to 85℃

* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
