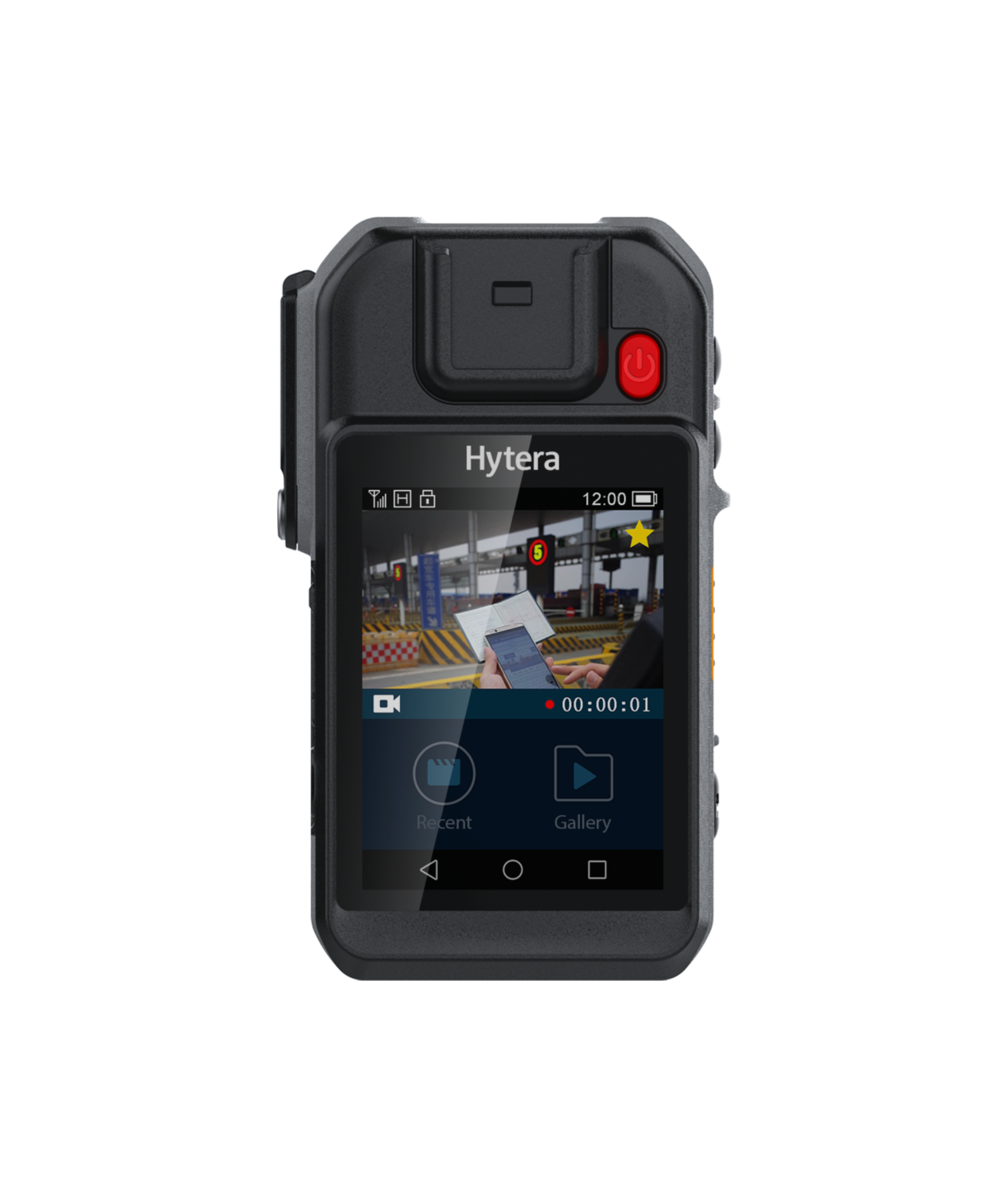

Highlights of VM750D
160°DIAGONAL FIELD OF VIEW
The super wide-angle camera allows you to capture more objects in a broader scope.
Even at most one meter away, the BWC can capture the hand actions at close quarters.
INTELLIGENT SCENE DETECTION
The BWC incorporates the multi-functional sensor that will automatically send an alarm
to the control center when detecting Man down, occlusion, stay-long, dismantling.
NFC-ENABLED ID SWITCHOVER
The near field communication (NFC) realizes ID switchover just by holding the NFC
card to the BWC. This simplifies the process of ID switchover, enhances the BWC availability,
and reduces unnecessary expenses.
BE A POC RADIO
The BWC serves as a push-to-talk over cellular (PoC) radio. Over 3G, 4G, or WLAN networks,
this camera allows you to make a voice call simply by pressing the push-to-talk (PTT)
key. Thanks to the advanced noise cancellation technology, the camera picks up your
voice while removing the ambient noise.
FAST POSITIONING
The BWC provides fast positioning services by using GPS, GLONASS, BDS, together with
AGPS in the public network. Thanks to the advanced position algorithm, the BWC delivers
precise location quickly.
AES-256 ENCRYPTION
VM750D adopts the AES-256 advanced encryption technology to protect all the captured
evidence (including images, audio and videos) in local storage.
160° FOV Camera
The super wide-angle camera allows you to capture more objects in a broader scope. Even at most one meter away, the BWC can capture the hand actions at close quarters.
High Capacity Battery
Equipped with a 3500mAh battery, VM750D can provide more than 9 hours battery life for continuous video shooting with 720P@30FPS.
13PIN port Integration
Be a remote speaker microphone while connecting a radio through the BT or data cable.
2.8”Color Touch Screen
With a 2.8 inch touch screen, user are able to easily make daily operation.
Specifications of VM750D
- Standard Functions and Frequency Range
- General data
- Video and Imaging
- Audio
- Environmental Specs
- Certification
| Standard Functions and Frequency Range | |
|---|---|
| LTE | TDD-LTE: B34/B38/B39/B40/B41 ，FDD-LTE:B1/B3/B5/B7/B8/B20/B26/B28 |
| CDMA | BC0 |
| WCDMA | B1/B3/B5/B8 |
| TD-SCDMA | B34/B39 |
| GSM | 850/900/1800/1900 |
| WLAN | 802.11 b/g/n/ac |
| NFC | Support (reserved) |
| BT | BT4.2 Audio and BLE support |
| Positioning | GPS/BDS/GLONASS/AGPS |
| General data | ||
|---|---|---|
| Dimensions(H×W×D) mm | 115.5*61*26mm | |
| Weight | 210g(with Standard battery 3500mAh) | |
| Operating System | Android 7.1 | |
| Processor | SDM450 | |
| Memory | TF card: 16G (standard)Optional: 32G/64G/128G | |
| Sensors | Man-down alarm (platform adaptation required) | |
| Peripheral Interface | Micro USB 2.0, support OTG and headphone output | |
| Display | 2.8 inch | |
| Card Slots | NanoSIM*1 | |
| Camera | Image sensor: 4 megapixels; Lens: F/2.4, full glass viewing Angle: 160° (diagonal), 127° (horizontal), 67° (vertical); Focusing range: 0.5 m to infinity | |
| Battery | 3500mAh | |
| Charging Time | ≤4h | |
| Video and Imaging | ||
|---|---|---|
| Video File Types | mp4 | |
| Video Encoding Technology | H.264 | |
| Image File Types | JPG | |
| Image Resolution | 40MP（16MP 8MP 5MP） | |
| Video Resolutions and Frames Per Second | 1080p@30FPS720p@30FPS/60FPS480p@30FPS/60FPS | |
| Video Recording Quality | Standard/High-efficient | |
| Pre-recording/Post-recording | 30s/30s | |
| Watermark | Supported | |
| Battery Life(Continuous Video Shooting) | ≥11h (720p@30FPS, screen off, bluetooth off, Wi-Fi off) | |
| Audio | ||
|---|---|---|
| Input | Silicon microphone*2/omnidirectional | |
| Output | 2W*1，85dB@30cm | |
| File Types | AAC | |
| Environmental Specs | ||
|---|---|---|
| Operating Temperature | -20℃ to +60℃ | |
| Storage Temperature | -30℃ to +80℃ | |
| ESD | Contact: ±6 kV; air: ±12 kV | |
| MIL Standard | MIL-STD-810G, | |
| Dust & Water Protection | IP68 | |
| Vibration,Drop&Shock | 2m with back clamp, 1.5 meters naked | |
| Certification | ||
|---|---|---|
| Certification | MIL-STD-810G, IP68 ， FCC，CE，IC | |
