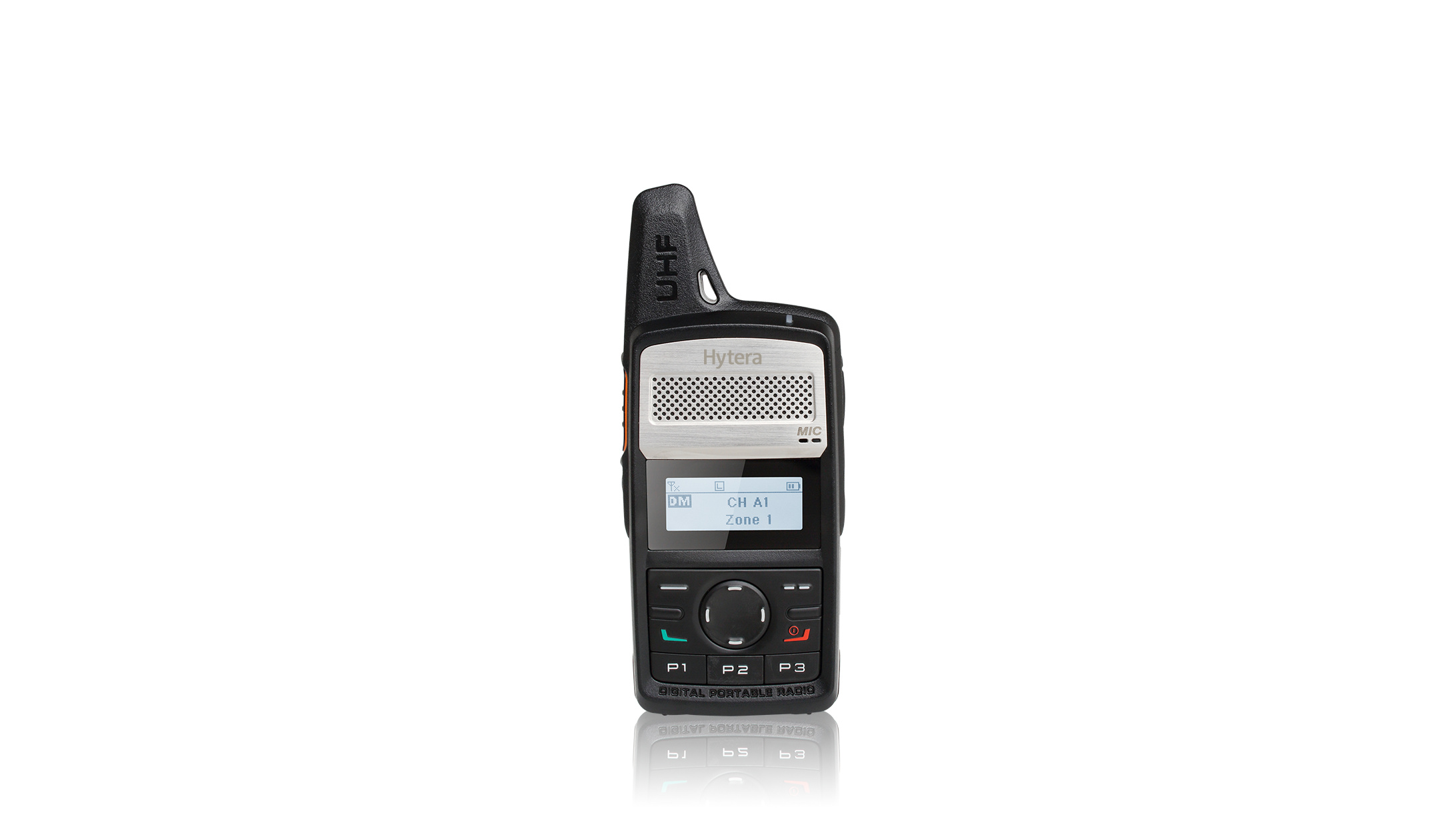

Specifications of PD365LF
- General data
- Receiver
- Transmitter
- Environmental Specs
| General data |
| Frequency Range |
UHF:446 MHz |
| Channel Capacity |
16 |
| Zone Capacity |
1 |
| Channel Spacing |
25 kHz/12.5 kHz |
| Operating Voltage |
3.7 V(Rated) |
| Battery |
2000 mAh (Li-ion) |
| Battey Life(5/5/90 Duty Cycle,High TX Power) |
Analog：>10 hours;
Digital：>12 hours |
| Frequency Stability |
±0.5 ppm |
| Antenna Impedance |
50 Ω |
| Dimensions(H×W×D) mm |
106 mm X 54 mm X 23 mm |
| Weight |
160 g |
| Display |
Black/white LCD |
| Receiver |
|
| Sensitivity(Analog) |
Typical：< 0.22 uV;
Spec：< 0.28 uV（-118 dBm） |
| Sensitivity(Digital) |
Extreme：-116 dBm/BER5%;
Normal：-110 dBm/BER1% |
| Adjacent Channel Selectivity |
ETSI:60 dB @ 12.5 kHz/70 dB @ 25 kHz;
TIA-603:60 dB @ 12.5 kHz/70 dB @ 25 kHz |
| Intermodulation |
ETSI:65 dB @ 12.5/25 kHz;
TIA-603:70 dB @ 12.5/25 kHz |
| Spurious Response Rejection |
ETSI:70 dB @ 12.5/25 kHz;
TIA-603:70 dB @ 12.5/25 kHz |
| Blocking |
ETSI:84 dB |
| Hum&Noise |
40 dB @ 12.5 kHz ;
45 dB @ 25 kHz |
| Rated Audio Power Output |
0.4 W |
| Rated Audio Distortion |
≤5% |
| Audio Response |
+1~-3 dB |
| Conducted Spurious Emission |
<-57 dBm |
| Transmitter |
|
| RF Power Output |
0.5 W |
| FM Modulation |
11K0F3E @ 12.5 kHz;
16K0F3E @ 25 kHz |
| 4FSK Digital Modulation |
12.5 kHz Data Only:7K60FXD;
12.5 kHz Data&Voice:7K60FXW |
| Conducted/Radiated Emission |
-30 dBm > 1 GHz;
-36 dBm < 1 GHz |
| Modulation Limiting |
±2.5 kHz @ 12.5 kHz;
±5.0 kHz @ 25 kHz |
| FM Hum&Noise |
40 dB @ 12.5 kHz;
45 dB @ 25 kHz |
| Adjacent Channel Power |
60 dB @ 12.5 kHz;
70 dB @25 kHz |
| Audio Distortion |
≤3% |
| Digital Vocoder Type |
AMBE+2™ |
| Digital Protocol |
ETSI-TS102 361-1,-2,-3 |
| Environmental Specs |
|
| Operating Temperature |
-30 ℃~+60 ℃ |
| Storage Temperature |
-40 ℃~+85 ℃ |
| ESD |
IEC 61000-4-2(level 4);
±15 kV(Air);
±8 kV(Contact) |
| MIL Standard |
MIL-STD-810 G |
| Dust & Water Protection |
IP54 |
| Humidity |
Per MIL-STD-810 G Standard |
| Vibration,Drop&Shock |
Per MIL-STD-810 G Standard |
