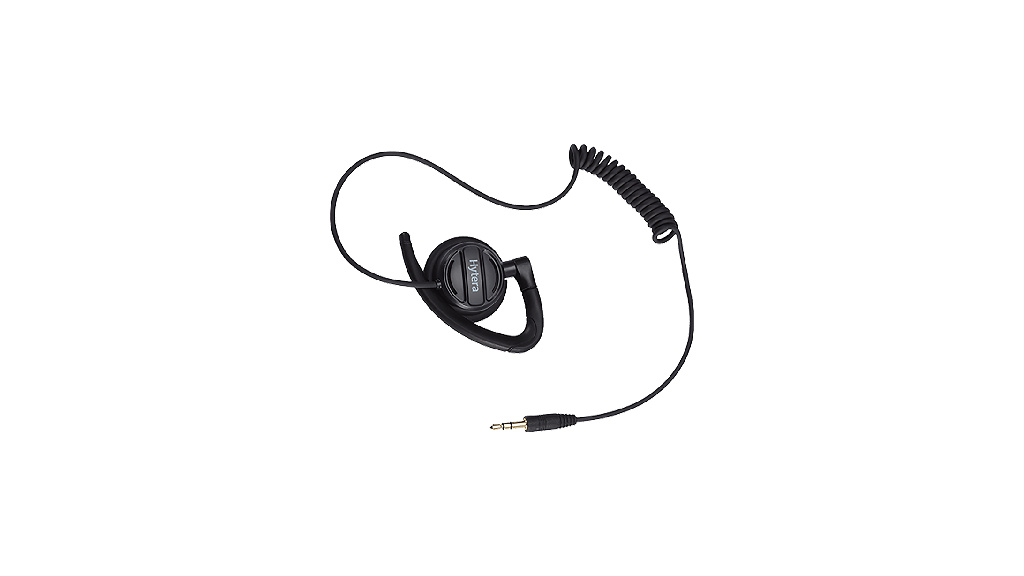

EH-02 Swivel Style Earpiece (Receive-Only) (3.5mm Audio Plug)

EH-02

Ergonomically designed swivel earpiece (Receive only) with 3.5mm jack plug, to be used with PTT&MIC cable or remote speaker microphone

Specifications of EH-02

  • Specifications
Specifications
Weight about 16g
Color black
PTT Key none
VOX none
Emergency Key none
Speaker Power 50 mW (rated); 100 mW (max.)
Speaker Impedance 150Ω±15%@2.0kHz
Speaker Frequency Response 115±3dB@1kHz at 50mw
IP Rating none
Operating Temperature –20℃ to 60℃
Storage Temperature –40℃ to 85℃
Note PTT&MIC controller cable is required
Applicable devices in combination with PTT&MIC controller cable ACM-01: TC-446S, TC-510, TC-610, TC-620, TC-700, PD4 and PD5 series ACN-01: PD7 series, PD985, PT560H, PT580H Plus ACN-02: X1e, X1p, Z1p, PD6 series, PDC550 ACN-02P: HP5, HP6 and HP7 series, PDC680/PTC680 (A10), PDC550 ACN-05: PDC680, PTC680, PDC760, PTC760 ACS-01: BD3 series, PD3 series SM08M3: TC-446S, POWER446, TC-508, TC-610, TC-620, TC-700, BD505LF, PD505LF, BD505, BD555, BD615, PD405, PD415, PD485, PD505, PD565 SM13M1: POWER446, TC-610, TC-620, TC-700 SM13N5: TC-610P, TC-700P, TC-780, TC-780M, TC3000, TC3600
