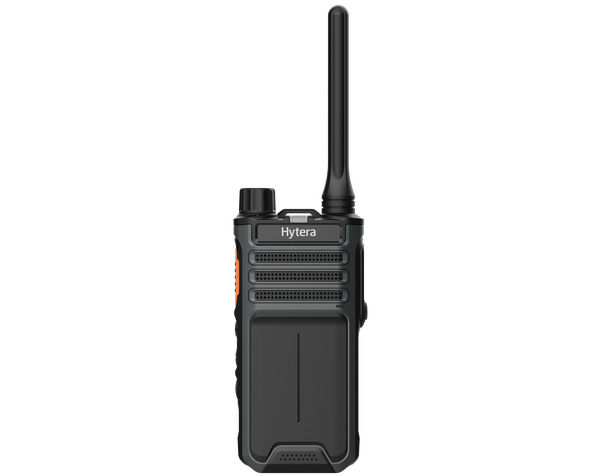

BP515LF Licence-free DMR Business Radio (PMR446)

BP515 LF

Handheld | DMR

The BP515LF is an enhanced two-way business radio that takes advantage of both digital and analogue modes for added flexibility. Digital features like pseudo trunking and emergency call will enhance your business service. The BP515LF has extended range in class and features 256 channels, making group communication more flexible. Check out the complete AP BP Licence-free Range here

Highlights of BP515 LF

LOUD AND CLEAR AUDIO

Light and compact with a built-in intelligent noise reduction algorithm, to eliminate unwanted background noise, supports three-level noise reduction adjustment so even if the other party is speaking in a noisy environment, you can still listen clearly. 3W high-power loudspeaker with a loudness of up to 90dBA, the sound is clear and loud even in noisy and other harsh conditions; good howling suppression ability, even if many people use the walkie-talkie in the same room, there will be no annoying howling sound.

DIGITAL AND ANALOGUE COMPATIBLE

Supports both digital and analogue modes, compatible with other PMR446 analogue and DMR Tier I radios. The BP515LF has extended range in class and features 256 channels, making group communication more flexible.

VOICE NOTIFICATION

Voice notification confirms the operation of programmable buttons or changing the channel.

EXPAND COVERAGE

The BP515LF has a high sensitivity receiving module and high-efficiency monopole antenna to enhance signal penetration and achieve better call affect even in weak signal areas. In addition, the monopole antenna has a unique stable design and is not easy to break and bend, it helps to enhance antenna life time and also increase the radiation efficiency compared to traditional antennas by 11% to extend radio communication distance.

Specifications of BP515 LF

  • General
  • Receiver
  • Transmitter
  • Environmental
General
Frequency Range 446.0 - 446.2 MHz
Supported operating modes DMR Tier I (license-free DMR - ETSI TS 102 361-1), Analogue PMR446
Channels & zones Channel capacity: 256 Zone capacity: 4 Channels per zone: 16
Channel spacing 12.5 kHz
Operating voltage 7.2 V
Battery 1500 mAh (standard); 2200 mAh (optional)
Battery life (5/5/90 duty cycle, high TX power) Analogue: 17 hours (1500 mAh), 22 hours (2200 mAh) Digital: 18 hours (1500 mAh), 24 hours (2200 mAh)
Frequency stability ±0.5 ppm
Dimensions (H x W x D) 115 x 55 x 29.5mm
Weight 210 g
Digital protocol ETSI-TS102 361-1
Receiver
Sensitivity Digital: 0.18uV / BER5% Analogue: 0.18uV (12dB SINAD)
Adjacent channel selectivity TIA-603: 60dB@12.5kHz ETSI: 60dB@12.5kHz
Intermodulation TIA-603: 70dB@12.5kHz ETSI: 65dB@12.5kHz
Spurious response rejection TIA-603: 70dB@12.5kHz ETSI: 70dB@12.5kHz
Blocking TIA-603: 80dB ETSI: 84dB
Hum and noise 40dB@12.5kHz
Rated audio power output 1W
Rated audio distortion <3%
Audio response +1to-3dB
Conducted spurious emission <-57dBm
Transmitter
RF power output 0.5 W
FM modulation 11K0F3E@12.5kHz
4FSK digital modulation 12.5 kHz data only: 7K60FXD 12.5 kHz data and voice: 7K60FXW
Conducted/radiated emission -36dBm < 1GHz; -30dBm > 1GHz
Modulation limiting ±2.5 kHz @ 12.5 kHz
FM Hum&Noise 40dB @ 12.5 kHz
Adjacent Channel Power 60dB @ 12.5 kHz
Audio Distortion ≤3%
Digital Vocoder Type AMBE+2
Environmental
Operating Temperature -30°C to +60°C (radio only / battery: -20 ℃)
Storage Temperature -40 ℃ to +85 ℃
ESD IEC 61000-4-2 (Level 4) ±8 kV (contact) ±15 kV (air)
Ingress protection IEC60529-IP54
Shock and vibration per MIL-STD-810 H standard
Humidity per MIL-STD-810 H standard
