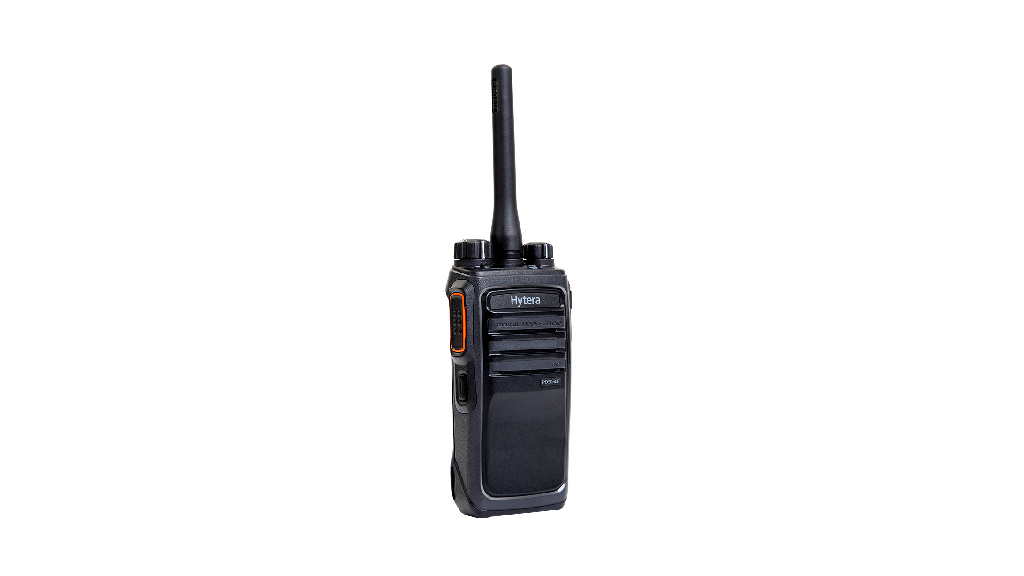

PD505LF Licence-free digital two-way radio

Handheld | DMR

Packed with functionality and licence-free, the Hytera PD505LF handheld digital two-way radio impresses with its safety features and flexibility to support for both digital and analogue communications, ideal for manufacturing, events and hospitality environments.

Specifications of PD505LF

General data
Receiver
Transmitter
Environmental Specs

General data
Frequency Range	UHF:446MHz
Channel Capacity	32
Zone Capacity	3
Channel Spacing	25 kHz/20 kHz/12.5kHz
Operating Voltage	7.4V(rated)

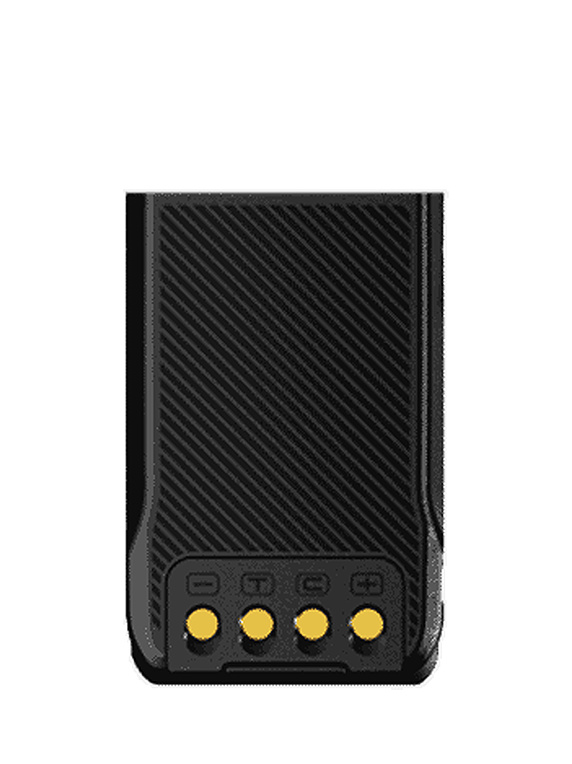

Battery	2000mAh (Li-ion)
Battey Life(5/5/90 Duty Cycle,High TX Power)	Analog/Digital: about 16hours/18hours
Frequency Stability	±0.5ppm
Antenna Impedance	50Ω
Dimensions(H×W×D) mm	115mm × 54mm × 27mm
Weight	260g

Receiver
Sensitivity(Analog)	0.22μV (12dB SIN AD); 0.22μV(Typical)(12dB SIN AD); 0.4μV (20dB SIN AD);
Sensitivity(Digital)	0.22μV/BER 5%
Adjacent Channel Selectivity	ETSI:60dB @ 12.5 kHz/70dB @ 20&25 kHz; TIA-603:60dB @ 12.5 kHz/70dB @ 20&25 kHz
Intermodulation	ETSI:65dB @ 12.5/20/25 kHz; TIA-603:70dB @ 12.5/20/25 kHz
Spurious Response Rejection	ETSI:70dB @ 12.5/20/25 kHz; TIA-603:70dB @ 12.5/20/25 kHz
Blocking	> 84dB
Hum&Noise	40dB @ 12.5 kHz; 43dB @ 20 kHz; 45dB @ 25 kHz
Rated Audio Power Output	0.5W
Rated Audio Distortion	≤3%
Audio Response	+1~-3dB
Conducted Spurious Emission	<-57dBm

Transmitter
RF Power Output	0.5W
FM Modulation	11K0F3E @ 12.5 kHz; 14K0F3E @ 20 kHz; 16K0F3E @ 25 kHz ;
4FSK Digital Modulation	12.5 kHz Data Only:7K60FXD; 12.5 kHz Data&Voice:7K60FXW
Modulation Limiting	±2.5 kHz @ 12.5 kHz; ±4.0 kHz @ 20 kHz; ±5.0 kHz @ 25 kHz;
FM Hum&Noise	40dB @ 12.5 kHz; 43dB @ 20 kHz; 45dB @ 25 kHz
Adjacent Channel Power	60dB @ 12.5 kHz; 70dB @ 20/25 kHz
Audio Distortion	≤3%
Digital Vocoder Type	AMBE+2™
Digital Protocol	ETSI-TS102 361-1,-2,-3

Environmental Specs
Operating Temperature	-30℃~+60℃
Storage Temperature	-40℃~+85℃
ESD	IEC 61000-4-2(level 4); ±15kV(Air); ±8kV(Contact)
MIL Standard	MIL-STD-810 C/D/E/F/G
Dust & Water Protection	IP54 Standard
Humidity	Per MIL-STD-810 C/D/E/F/G

* Die auf dieser Seite gezeigten Produktbilder, Spezifikationen, Funktionen und Zubehörteile können aufgrund fortlaufender Technologie-Upgrades und Produktionsverbesserungen Änderungen unterliegen. Um sicherzustellen, dass Sie das korrekte Produkt und kompatibles Zubehör erhalten, kontaktieren Sie bitte vor Bestellung das Hytera-Verkaufsteam für die neuesten Informationen. Hytera behält sich das Recht vor, Produktdetails ohne vorherige Ankündigung zu ändern.
