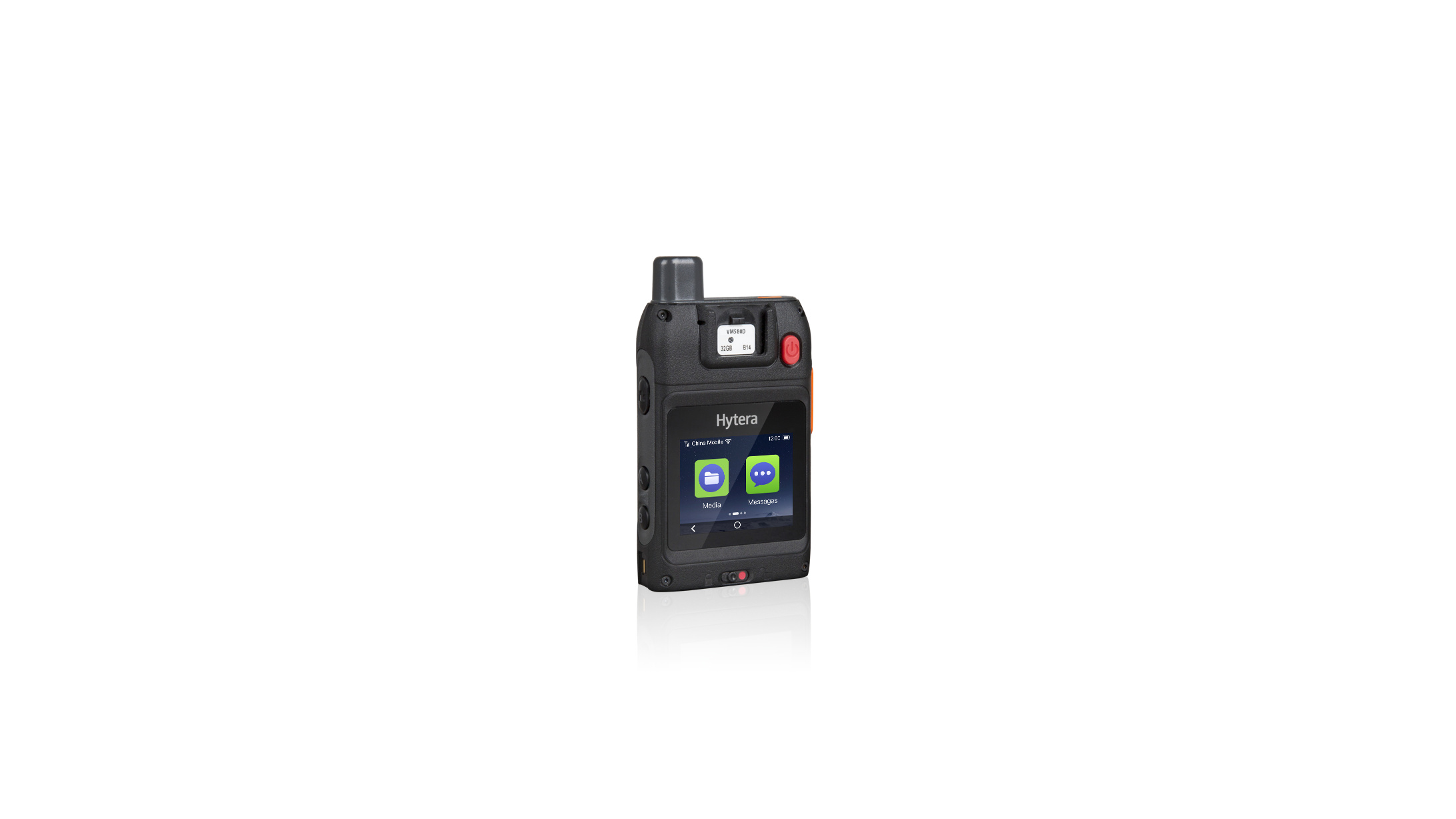

VM580D Ultra thin BWC enhanced with Push-to-Talk capability

VM580D

Bodycam RSM | LTE | LTE | RSM

The VM580D is Hytera's new generation of smart 4G body worn camera that ensures precise and effective recording via an HD camera with an immediate playback function of videos just recorded. The integrated night vision function is activated automatically in low light conditions and enables the safe recording of events up to 10 meters away.

Highlights of VM580D

NOISE CANCELLING MICROPHONE

Dual microphones: Enhance the voice effect with no distortion improving sound quality and audio playback capabilities

HIGH BATTERY PERFORMANCE

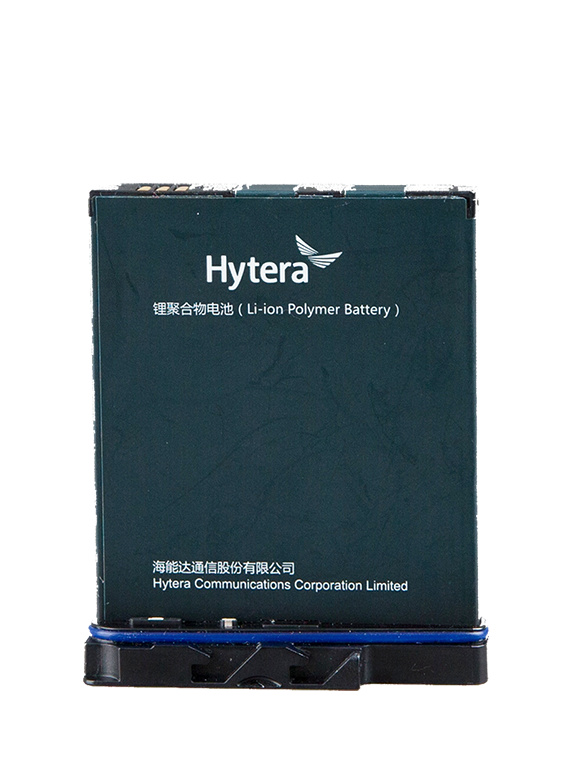

The 3,000 mAh battery features high energy density, high safety, small volume as well as compact size for ease of long term usage

INFRARED NIGHT VISION

With infrared technology, the VM580D captures a clear image in low light conditions. It has two infrared LEDs which automatically turn on in dim light to enhance night vision capabilities. This helps recognize human face within 5 meters or outline within 10 meters in dark.

LTE LIVE VIDEO STREAMING

The VM580D streams live video to the control center over LTE network. This helps the dispatcher know exactly what is happening to enhance situational awareness and facilitate decision-making.

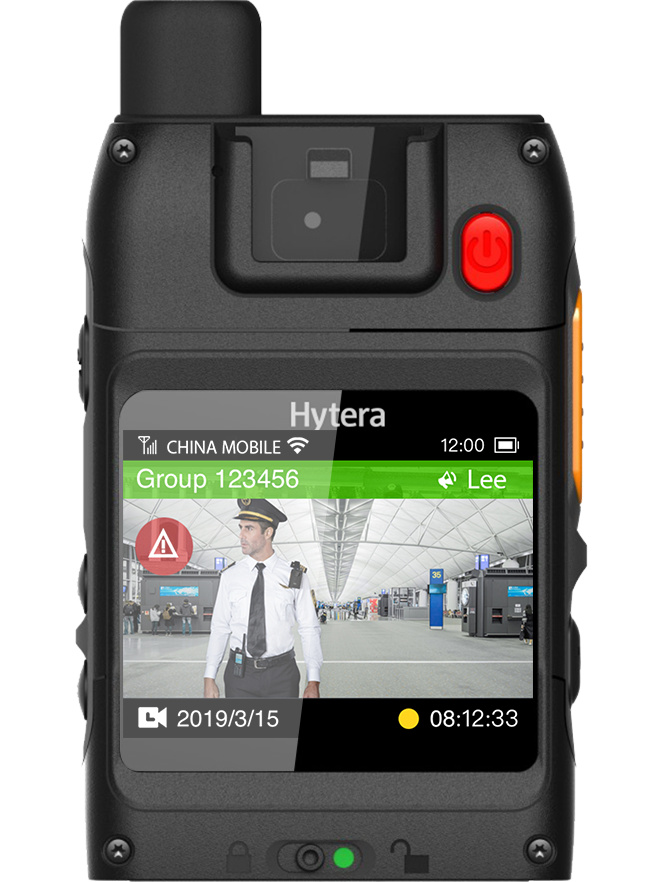

hytera image
4G Antenna

Push-to-talk key (PTT Key)

LCD Touchscreen

Specifications of VM580D

  • Standard Functions and Frequency Range
  • General Data
  • Video and Imaging
  • Audio
  • Environmental Specs
  • Certification
Standard Functions and Frequency Range
Main chip MTK6739
Operating System Android 7.1
RAM 2GB
ROM 16GB
SIM card type Nano-Sim
SIM card slots 1
Active battery capacity 3000 mAh
BT BT4.2; Audio and BLE support
Positioning GPS、BDS、GLONASS、AGPS
General Data
Dimensions(H×W×D) mm 94 * 63 * 20
Weight 172g(with 3000mAh battery and belt clip)
Operating System Android 7.1
Processor ARM Cortex-A53
Memory 32 GB, 64 GB, and 128 GB available
Sensors Data protection, impact video recording
Peripheral Interface Mirco USB port, 4-pin contact port
Display 2 inch touch screen on landscape mode ,320(V)*240(H) QVGA ,TFT-LCD 262K color display
Card Slots NanoSIM*1
Battery 3000 mAh
Charging Time ≤4 h
Video and Imaging
Video File Types mp4
Video Encoding Technology H.264
Image File Types JPG
Image Resolution 16MP/5MP/3MP (optional)
Video Resolutions and Frames Per Second 480P@30FPS, 720P@30FPS, 1080P@30FPS
Pre-recording/Post-recording Pre-Recording:30s; Post-Recording:30s
Watermark Supported
Battery Life(Continuous Video Shooting) ≥8h(720p@30fps)
Audio
Input Double microphone
Output 1W
File Types AAC
Environmental Specs
Operating Temperature -30℃~+60℃
Storage Temperature -40℃~+85℃
ESD air discharge: 12 kV; Contact discharge: 6 kV
MIL Standard MIL-STD-810G,
Dust & Water Protection IP68
Vibration,Drop&Shock 2 m
Certification
Certification IP68;CE;FCC;IC;MIL-STD-810G
