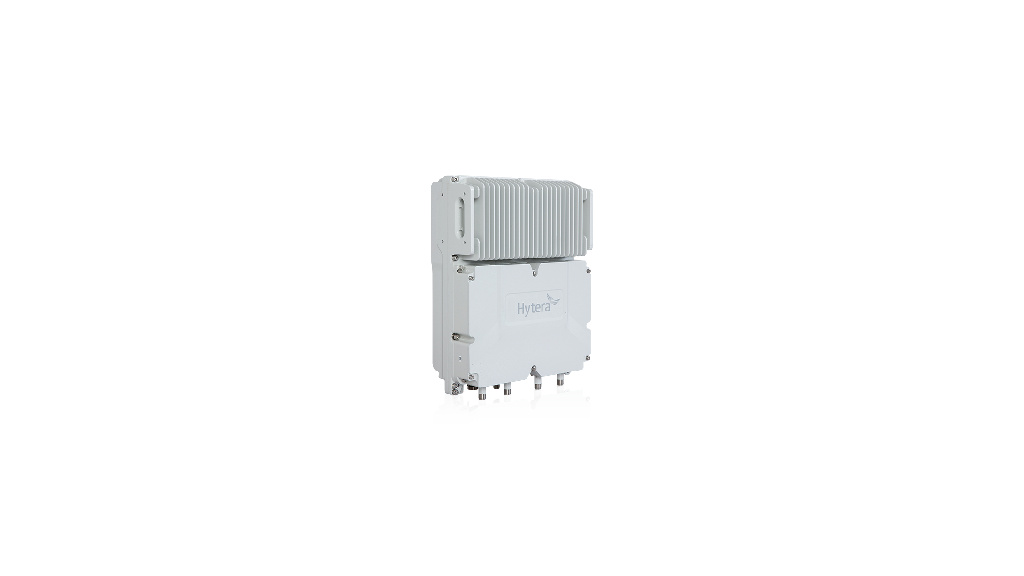

Highlights of DS-6250
Flexible Deployment
The Hytera Trunking Cube Base Station features fast deployment. Four installation
options are available to match your communication scenarios: wall-mounted for indoor
coverage, pole-mounted for outdoor coverage, vehicle-mounted for emergency situations,
and box-mounted for temporary operation. Save time and cost in installation and associated
space required, unleashing the potential of Tier III trunking in any environment.
Large Coverage
The Trunking Cube Base Station can provide excellent coverage. It supports diversity
receiving and can be directly mounted on antenna masts, buildings and towers, reducing
feeder loss.
High Spectrum Efficiency
Based on multicarrier technology, channel spacing is more than 50 KHz instead of the
traditional 250 KHz plus. What's more, it can work in DMR trunking simulcast mode,
which means all base stations implemented in a single network can adopt the same frequencies.
Eco-friendly Design
The highly integrated components ensure power consumption is less than 550W, supported
with the eye-catching blade heat sink design to guarantee good heat dissipation.
Specifications of DS-6250
| Max. Carrier Capacity per BS(carrier) | 8 (extendable to 24 carriers at most) |
| Standard Compliance | DMR/PDT | |
| Frequency Range | UHF3：（TX：361 MHz～366MHz RX：351MHz～ 356MHz or Rx:372-377 MHz,Tx:382-387 MHz）; UHF1：400-470MHz | |
| Carrier Capacity | 8 | |
| Carrier Spacing | ≥50kHz | |
| Duplex Interval | 10MHz | |
| Power Supply | DC 48V; AC 220V（Additional power conversion module is required） | |
| Power Consumption | ≤550W | |
| Clock Synchronization | GPS/BeiDou/IEEE 1588 V2 | |
| Weight | ≤26 kg | |
| Operating Temperature | -40°C～+50°C (under sunlight); -40°C～+55°C (in shadow) | |
| Storage Temperature | -40°C～+85°C | |
| Relative Humidity | Relative humidity: 5% ~ 100% | |
| IP Rating | IP67 | |
| Working Altitude | 70kPa～106kPa | |
| Wind Resistant | 240 km/h | |
| Lightning Protection | 20 KA | |
| Mean Time to Repair(MTTR) | 30 minutes | |
| Mean Time Between Failures(MTBF) | 100,000 hours | |
| RX Sensitivity(Static) | -122 dBm@BER5% | |
| Co-channel Rejection | ≥-12 dB | |
| Adjacent Channel Selectivity | ≥60 dB | |
| Blocking | ≥84 dB | |
| Intermodulation | ≥70 dB | |
| Spurious Response Rejection | ≥70 dB | |
| TX Power | 2CH≤40 W; 8CH≤10 W; 6CH≤13 W; 4CH≤20 W | |
| Occupied Bandwidth | ≤8.5 kHz | |
| Modulation Accuracy | ≤5% | |
| Frequency Offset | ≤±1 ppm | |
| Intermodulation Attenuation | ≤-70 dB | |
| Conducted/Radiated Emission | 9.00kHz～1.00GHz：≤-36dBm; 1.00GHz～12.75GHz：≤-30dBm | |
| Packet Loss | ≤1X10-3 | |
| Jitter | 10ms | |
| Time Delay | 20ms | |
