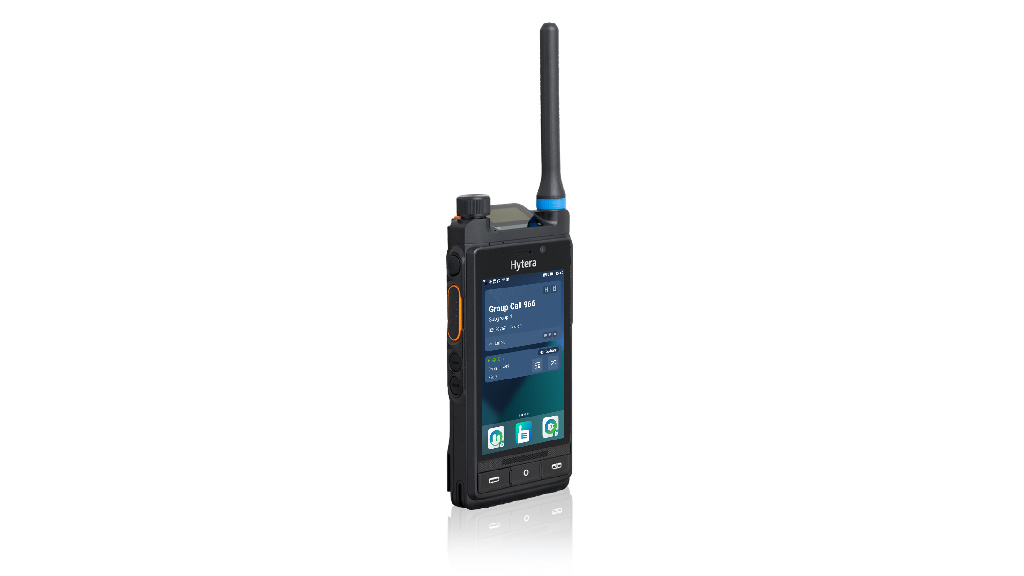

PDC760 DMR LTE hybrid device offering the ideal platform for critical voice and broadband data services

Handheld | LTE | DMR

The PDC760 is the revolutionary DMR LTE hybrid device offering the ideal platform for critical voice and broadband data services. Providing a unified communication experience, this feature rich handset with multiple connectivity options is the ideal communication solution for improved operational efficiency and critical situations.

Highlights of PDC760

ACCESSORY OPTIONS

Optimise with high capacity power and charger options, as well as the impressive VM685 Video Speaker Microphone for media streaming.

DUAL BLUETOOTH

Bluetooth V4.2 delivers an enhanced data rate with low energy consumption through a secure connection for wireless connectivity.

FLEXIBLE APPLICATIONS

Utilise the Hytera app development program (ADP), or push APK files to your device to improve your efficiency. You can even utilise the onboard applications and sensors provided.

OTAP

The Hytera Mobile Device Management (MDM) client can track device activity, push apps and updates over the air to your advanced radio fleet.

ROAMING

Traverse networks, moving from LTE to DMR and back seamlessly to ensure you always remain connected. Dual SIM slots as standard.

WI-FI

Wireless connectivity for MDM programming and all manner of data applications, even operating as a portable hotspot.

Specifications of PDC760

Data Information
General Information
Transceiver
Video&Image
Audio
Environmental Specs

Data Information
Narrow Band	PDT/Analog; UHF:350-527MHz, VHF:136-174 MHz
LTE	3GPP LTE; FDD-LTE:B1/B2/B3/B4/B5/B7/B8/B20/B26/B28; TDD-LTE:B38/B39/B40/B41
CDMA	CDMA 1xRTT BC0; CDMA2000 1xEV-DO BC0
WCDMA	B1/B2/B4/B5/B8
TD-SCDMA	B34/B39
GSM	850/900/1800/1900MHz
WLAN	802.11 b/g/n,2.4GHz
NFC	13.56MHz
BT	V4.2,BDR+EDR+BLE
Positioning	GPS,GPS/BDS,GPS/GLONASS; Position performance for open zone:; Horizontal position accuracy < 10meters; TTFF(Cold boot)< 1minute; TTFF(Hot boot)< 10seconds

General Information
Dimensions(H×W×D) mm	139.5 x 68 x 25.3mm
Weight	378g(with antenna & battery)
Operating System	Android 7.0
Sensors	6-axis E-Compass; Accelerometer; Barometer; Ambient Light Sensor; Proximity Sensor; Gyroscope
Peripheral Interface	20PIN Accessory/Charging Port
Camera	Front:&Rear 13MP,Auto Focus
Operating Voltage	7.6V(Rated)
Battery	Standard:2900 mAh Li-polymer;Optional:4000 mAh Li-polymer
Charging Time

Transceiver
Channel Spacing	25/20/12.5kHz
TX Power	UHF:1W/4W; VHF:5W
RX Sensitivity	0.4uV/-115 dBm(20dB SINAD); 0.22uV/-120 dBm(12dB SINAD)(Typical); 0.3uV /-117.5 dBm@BER5%; 0.3uV/-117.5dBm(12dB SINAD)
Intermodulation	ETSI:65dB@12.5/20/25kHz; TIA_603:70dB@12.5/20/25kHz
Blocking	84dB
Spurious Response Rejection	ETSI:70dB@12.5/20/25kHz; TIA_603:70dB@12.5/20/25kHz
Adjacent Channel Selectivity	ETSI: 60dB@12.5kHz/70dB@20/25kHz; TIA_603:60dB@12.5kHz/70dB@20/25kHz
Frequency Stability	±0.5ppm
Audio Power Output	2W
Audio Distortion	≤3%
Digital Vocoder Type	AMBE+2™,NVOC

Video&Image
Video File Types	3GPP(.3gp),MPEG-4(.mp4),QuickTime(.mov),WEBM(.webm),Windows Media(.asf,.wmv),RealMedia(.rmvb,.rm),MPEG-PS(.mpg,.mpeg),MPEG-TS(.ts),AVI(.avi),Matroska(.mkv)
Image File Types	JPEG(.jpg),GIF(.gif),PNG(.png),BMP(.bmp)
Video Recording Quality	Front Camera: 1080P HD up to 30 frames per second(fps); Rear Camera: 4K HD
Watermark	Video and imaging

Audio
Input	Multi-mic Noise Reduction, Wind Noise Suppression, Echo Cancellation
File Types	MP3(.mp3),WAV(.wav),3GPP(.3gp),MPEG-4(.mp4,.m4a),ATDS raw AAC(.aac),MPEG-TS(.ts),FLAC(.flac),MIDI(.midi,.xmf,.mxmf),RTTTL/RTX(.rtttl,.rtx),OTA(.ota),iMelody(.imy),Ogg(.ogg),Matroska(.mka),QCELP(.qcp),RealMedia(.ra),Windows Media(.wma),AC3(.ac3)

Environmental Specs
Operating Temperature	-20℃ ~ +60℃
Storage Temperature	-30℃~ +80℃
ESD	IEC 61000-4-2 Level 3
Dust & Water Protection	IEC 60529-IP67(Im,0.5h)
Humidity	Per MIL-STD 810,≤ +65℃,95%RH
Vibration,Drop&Shock	MIL-STD-810 G
