HR655 Compact DMR Repeater

HR655

Repeaters Systems | DMR

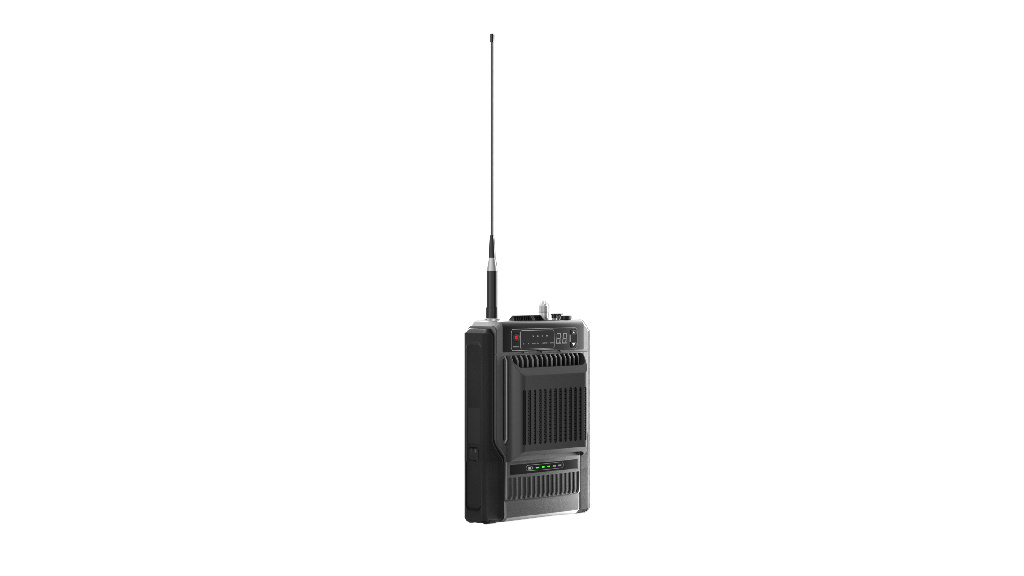

Hytera's HR655 is the new generation DMR repeater designed to expand the communication range of your DMR radios. Compact and lightweight, the HR655 can be flexibly mounted to the wall or carried on the back via tailored accessories. The HR655 allows the communication connection to be available anywhere you need. It is the top pick for hotels, office buildings, supermarkets, industrial parks and many more large scale industries.

Highlights of HR655

FLEXIBLE DEPLOYMENT

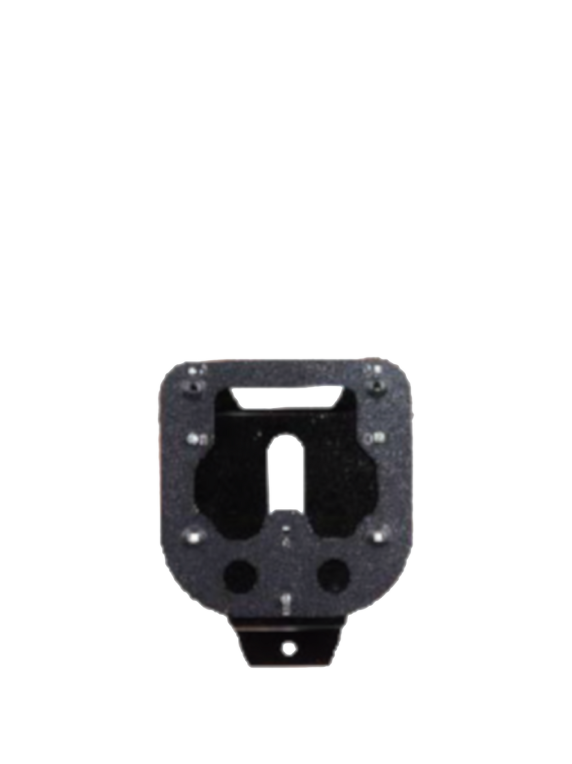

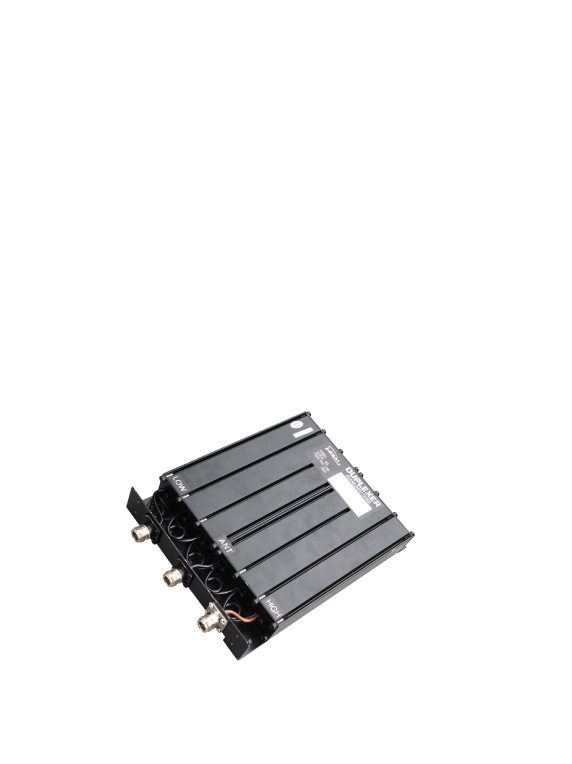

The innovative structural design gives the HR655 an unprecedented appearance and lightweight performance. With the compact body and built-in duplexer, the HR655 greatly conserves space. With tailored installation accessories, flexible installation can be achieved on sites with challenging space availability. Site installation is possible as long as there is a wall or flat surface. For indoor coverage, the super slim size of the HR655 minimises the requirements for the site and provides trustworthy voice and data communications as well as offering unlimited connections on each floor which are the keys to achieving your business success.

IP MULTI-SITE CONNECT

From the single site DMR conventional system for low-rise buildings to IP Multi-site system for high-rise buildings, the HR655 delivers a powerful and stable signal to every corner of your workplace. It can also interconnect with other model repeaters from Hytera, building a tailored network to meet your variable requirements.

HIGH RELIABILITY

Designed to operate on an AC power source or an optional battery, the HR655 can keep running in the event of a power outage. When it connects to the AC power supply, the battery works as a backup. In case of an outage, the 12.5Ah battery is ready to power the HR655 for up to nine hours of backup time. This power backup solution reduces the capital investment and maintenance for adding UPS power equipment.

SMOOTH TRANSITION

The HR655 can operate in analogue mode, DMR mode, or dynamic mixed digital/analogue mode, which automatically switches between analogue and digital based on the call it receives. The HR655 can ensure that your original analogue radio continues to be connected to the DMR network and protect your legacy system investment to the greatest extent.

CONVENIENT MANAGEMENT

Thanks to the Extended Network Management System (XNMS), you can remotely monitor the operation status and alarms of the HR655 in real time, or update the configuration in minutes. This dramatically reduces the time and resources required to maintain various, dispersed repeaters.

LONG BATTERY LIFE

The HR655 can be equipped with a 12.5Ah large-capacity battery for use in outdoor scenarios, which can provide up to 9 hours of power supply under the RF power output of 10W. Even if the device is used at 50% duty cycle at 25W full power, the HR655 can still guarantee 4 hours of uninterrupted work protection, providing you with a lasting, uninterrupted communication guarantee.

Specifications of HR655

  • General data
  • Receiver
  • Transmitter
  • Environmental Specs
  • Location Service
General data
Frequency Range VHF: 136-174MHz UHF: 400-470MHz
Channel Capacity 1024
Zone Capacity 1
Channel Spacing 12.5kHz/ 20kHz/ 25kHz
Operating Voltage DC: 14.4V±15%
Duty Cycle 100%
Battery 12.5Ah
Battey Life(50%Duty Cycle, High TX Power Transmit) 25W: 4h 10W: 9h
Current Drain(Standby) ≤0.35A
Current Drain(transmit) ≤6A
Frequency Stability ≤±0.5ppm
Antenna Impedance 50Ω
Dimensions(H×W×D) mm 10W: 201mm x 211mm x 65.8mm 25W: 201mm x 211mm x 80.6mm
Weight 10W: 1.9kg 25W: 2.0kg
Receiver
Sensitivity(Analog) 0.18μV (12dB SINAD) 0.16μV (typical) (12dB SINAD)
Sensitivity(Digital) 0.18μV/BER5%
Adjacent Channel Selectivity TIA-603: 65dB@12.5kHz/75dB@20/25kHz ETSI: 60dB@12.5kHz/70dB@20/25kHz
Intermodulation TIA-603: 75dB@12.5/20/25kHz ETSI: 70dB@12.5/20/25kHz
Spurious Response Rejection TIA-603: 80dB@12.5/20/25kHz ;ETSI: 80dB@12.5/20/25kHz
Blocking 90dB
Hum&Noise 40dB@12.5kHz 43dB@20kHz 45dB@25kHz
Rated Audio Distortion ≤3%
Audio Response +1 to -3dB
Conducted Spurious Emission ≤1GHz ≤-57dBm ;>1GHz ≤-47dBm
Transmitter
RF Power Output Low power 10W version: 1-10W adjustable High power 25W version: 1-25W adjustable
FM Modulation 11K0F3E@12.5kHz 14K0F3E@20kHz 16K0F3E@25kHz
4FSK Digital Modulation 12.5kHz only data : 7K60FXD 12.5kHz voice and data :7K60FXW
Conducted/Radiated Emission working: -36dBm≤1GHz,-30dBm>1GHz ;Standby: -57dBm≤1GHz,-47dBm>1GHz
Modulation Limiting ±2.5kHz@12.5kHz ±4.0kHz@20kHz ±5kHz@25kHz
FM Hum&Noise 40dB@12.5kHz 43dB@20kHz 45dB@25kHz
Adjacent Channel Power 60dB@12.5/20kHz ;70dB@25kHz
Audio Distortion ≤3%
Digital Vocoder Type AMBE+2™
Digital Protocol ETSI-TS102 361-1,-2,-3
Environmental Specs
Operating Temperature -30℃ ~ +60℃
Storage Temperature -40℃~ +85℃
ESD IEC 61000-4-2(Level 4) ±8kV (contact discharge); ±15kV (air discharge)
Dust & Water Protection Low power 10W version: IP67 High power 25W version: IP54
Humidity Per MIL STD 810 ≤+65°C 95%RH
Location Service
Horizontal Position Accuracy <5 meters
Cold Start (Time to First Fix) <1 minute
Hot Start (Time to First Fix) <10 seconds
Note Accuracy Specs are for long-term tracking (95th percentile values>5 satellites visible at a nominal-130 dBm signal strength)

* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
