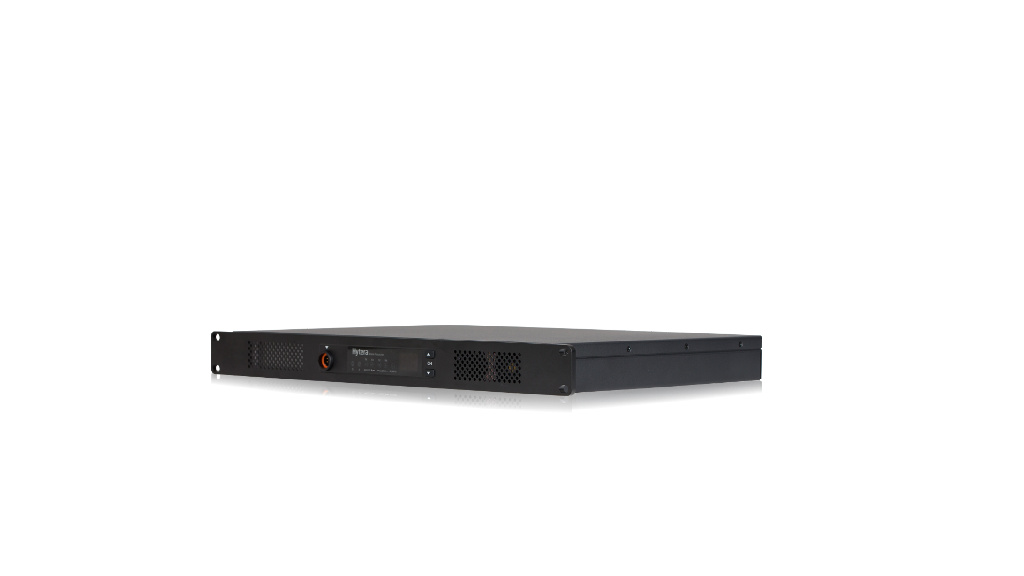

HR1065 Ultra-thin DMR Repeater

HR1065

Repeaters Systems | DMR

Based on rich industry experience, customer feedback and technological evolution, Hytera has launched the next generation of digital repeater. The HR1065 has a smaller form factor, enhanced performance, remote management tools and enhanced functionality. It also provides a cost-effective solution to communication networks. Pair with other H Series devices to maximise next generation DMR communication.

Highlights of HR1065

ULTRA-THIN MODULAR

The 1U height of the HR106X series makes it compact, thus reducing space requirements for installation.

OUTSTANDING PERFORMANCE

Enhanced version with additional co-processor provides increased processing speed to increase data processing.

COST-EFFECTIVE NETWORK CONSTRUCTION

The enhanced version of HR106X can support integrated router and SIP gateway functionality, requiring fewer devices and simplified management and offering a cost-effective solution.

CONVENIENT MANAGEMENT

In the enhanced version a web-based repeater management platform has designed to simplify repeater management. Configuration, upgrade and real-time diagnosis can all be completed through a web browser, which is ideal for remote management.

Specifications of HR1065

  • General data
  • Receiver
  • Transmitter
  • Environmental Specs
General data
Frequency Range VHF:136-174 MHz UHF1:400-470 MHz
Channel Capacity 1024
Zone Capacity 1
Channel Spacing 12.5 kHz/20 kHz/25 kHz
Operating Voltage AC:100-240 V DC:13.6 V±15%
Duty Cycle 100%
Current Drain(Standby) DC:≤0.9 A AC:≤0.35 A
Current Drain(transmit) 45W DC:≤12 A AC:≤1.2 A
Frequency Stability ≤±0.5 ppm
Antenna Impedance 50Ω
Dimensions(H×W×D) mm 44 mm x 483 mm x 366 mm
Weight 5.8 kg
Receiver
Sensitivity(Analog) 0.18 μV(12 dB SINAD); 0.16 μV(Typical)(12 dB SINAD)
Sensitivity(Digital) 0.2μV/BER5%
Adjacent Channel Selectivity TIA 603: 65 dB@12.5 kHz/75 dB@20/25 kHz ETSI: 60 dB@12.5 kHz/70 dB@20/25 kHz
Intermodulation TIA 603: 75 dB@12.5/20/25 kHz ETSI: 70 dB@12.5/20/25 kHz
Spurious Response Rejection TIA 603: 80 dB@12.5/20/25 kHz ETSI: 80 dB@12.5/20/25 kHz
Blocking 90 dB
Hum&Noise 40 dB@12.5 kHz; 43 dB@20 kHz; 45 dB@25 kHz
Rated Audio Distortion ≤3%
Audio Response +1 ~-3 dB
Conducted Spurious Emission ≤-57 dBm(≤1GHz); ≤-47 dBm(>1GHz )
Transmitter
RF Power Output VHF: 1-50 W (Adjustable) UHF: 1-45W (Adjustable)
FM Modulation 11K0F3E@12.5 kHz; 16K0F3E@25 kHz
4FSK Digital Modulation 12.5 kHz Data Only:7K60FXD 12.5 kHz Data and Voice:7K60FXW
Conducted/Radiated Emission Operating: -36 dBm  ≤1GHz; -30 dBm >1GHz Standby:--57 dBm  ≤1GHz; -47 dBm >1GHz
Modulation Limiting ±2.5 kHz@12.5 kHz; ±5.0 kHz@25 kHz
FM Hum&Noise 40 dB@12.5 kHz; 45 dB@25 kHz
Adjacent Channel Power 60dB@12.5kHz; 70dB@25kHz
Audio Distortion ≤3%
Digital Vocoder Type AMBE+2™
Digital Protocol ETSI-TS102 361-1,-2,-3
Environmental Specs
Operating Temperature -30℃~+60℃
Storage Temperature -40℃~+85℃
Humidity Per MIL STD 810 ≤+65°C 95%RH

* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
