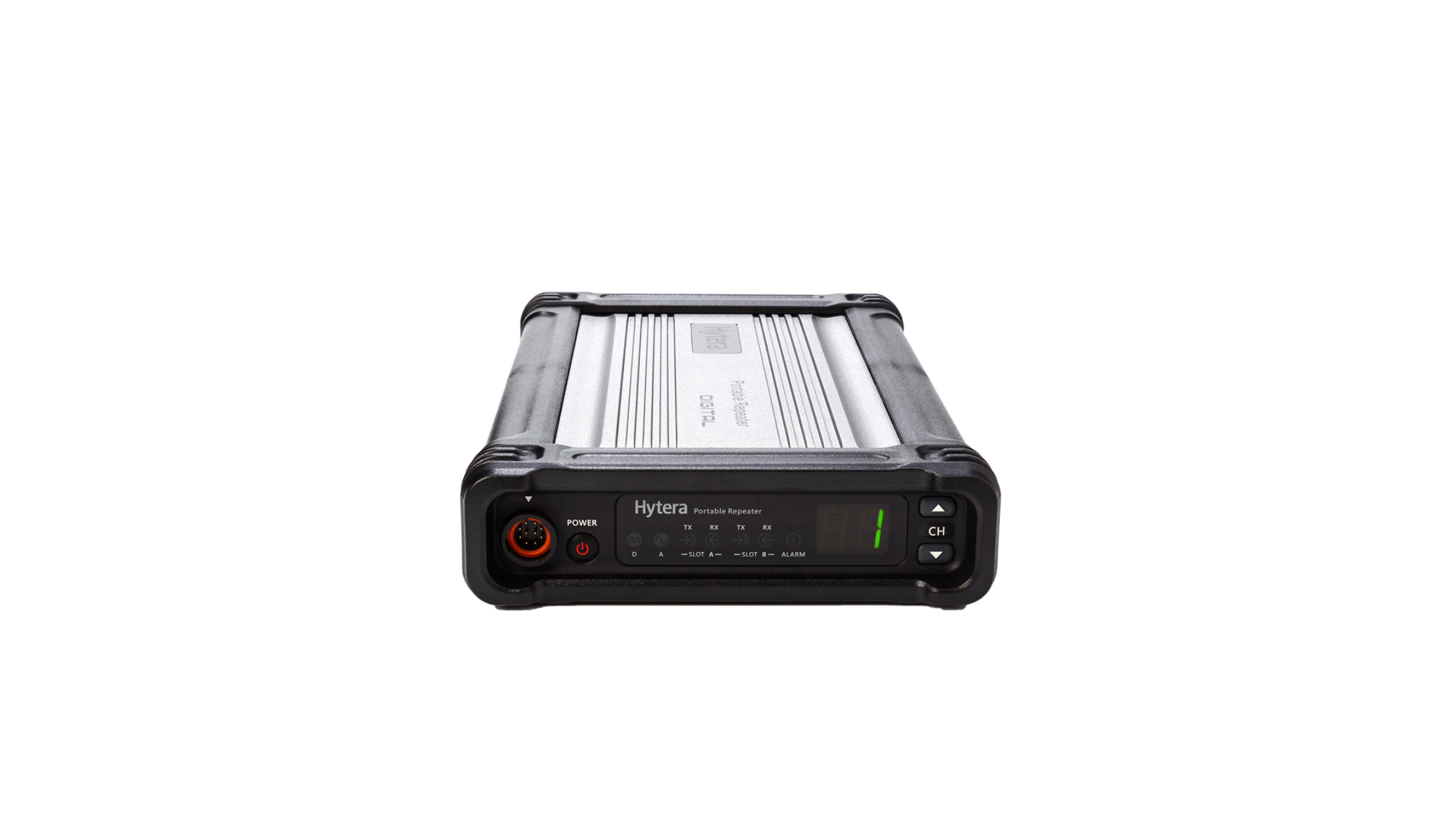

Highlights of RD965
IP SITE CONNECT
Create and control your network using IP (internet protocol) site connect.
DIGITAL ENCRYPTION
40 bit enhanced encryption as standard with the latest firmware, ensuring your transmissions
are always secure.

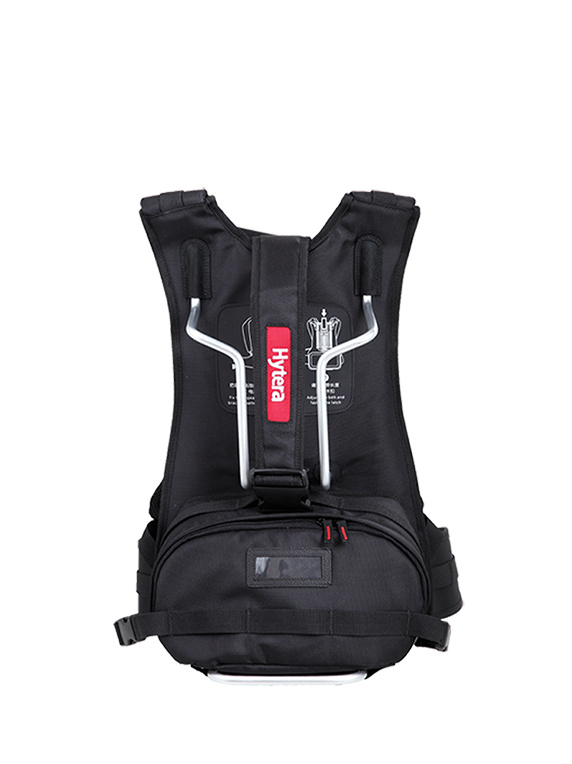

BACK PACK
Innovative, rugged backpack designed specifically for outdoor, mobile operation carried
on the person

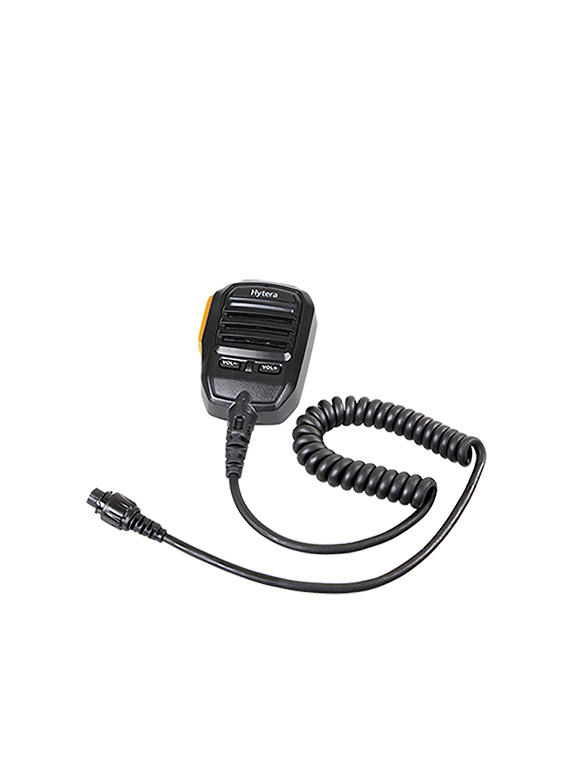

ACCESSORY CONNECTOR
Port to connect a multitude of audio accessory options, improving the user operating
experience in different environments.
GPS
Enabling location based services via a separate antenna to improve safety and control.
MIXED MODE OPERATION
This feature allows the device to automatically detect and switch between analogue
and digital modes based on the signal received.
PSEUDO TRUNKING
Using pseudo-trunking, a Hytera patented technology, slots can be shared to improve
capacity usage with transmissions either direct to handset or to repeater.
Specifications of RD965
- General data
- Receiver
- Transmitter
- Environmental Specs
- Location Service
| General data | |
|---|---|
| Frequency Range | UHF1:400-470MHz; VHF:136-174MHz; UHF3:350-400MHz |
| Channel Capacity | 16 |
| Channel Spacing | 12.5KHz20KHz25KHz |
| Operating Voltage | DC：13.6V±15%, Battery14.8V |
| Duty Cycle | 100% |

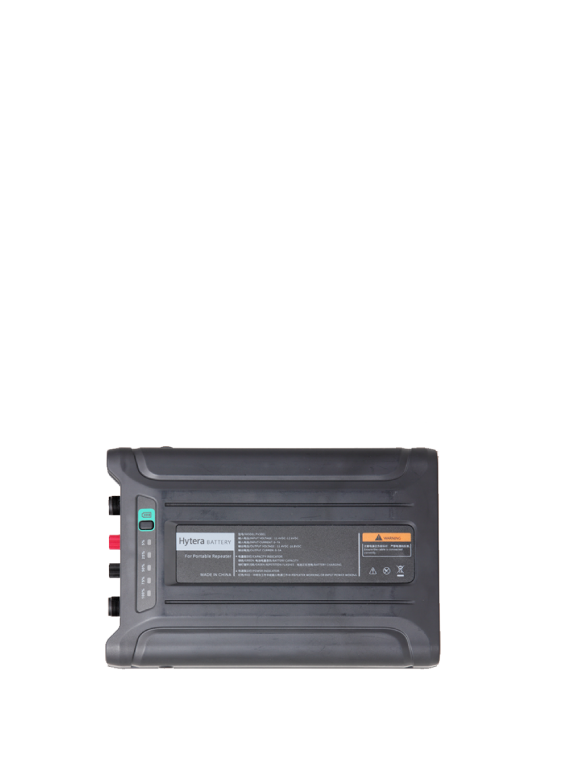

| Battery | 10Ah(Li-Ion) |
| Battey Life(50%Duty Cycle, High TX Power Transmit) | 8h |
| Current Drain(Standby) | <0.5A |
| Current Drain(transmit) | <2.5A |
| Frequency Stability | ±0.5ppm |
| Antenna Impedance | 50Ω |
| Dimensions(H×W×D) mm | 291 x 172 x 41(without protective shel); 301 x 184 x 51(with protective shell) |
| Weight | <3.0kg |
| Receiver | ||
|---|---|---|
| Sensitivity(Analog) | 0.3μV(12dB SINAD); 0.4μV(20dB SINAD); 0.22μVtypical)(12dB SINAD) | |
| Sensitivity(Digital) | 0.3μV/BER5% | |
| Adjacent Channel Selectivity | 65dB@12.5kHz75dB@20/25kHz（TIA_603）; 60dB@12.5kHz/70dB@20/25kHz（ETSI） | |
| Intermodulation | 70dB@12.5/20/25kHz（ETSI）; 75dB@12.5/20/25kHz（TIA_603） | |
| Spurious Response Rejection | 70dB@12.5/20/25kHz（ETSI）; 75dB@12.5/20/25kHz（TIA_603） | |
| Hum&Noise | 45dB@25kHz; 40dB@12.5kHz ; 43dB@20KHz | |
| Rated Audio Distortion | ≤3% | |
| Audio Response | +1～-3dB | |
| Conducted Spurious Emission | <-57dBm | |
| Transmitter | ||
|---|---|---|
| RF Power Output | 1-10W Continious | |
| FM Modulation | 11K0F3E@12.5kHz; 14K0F3E@20kHz; 16K0F3E@25kHz | |
| 4FSK Digital Modulation | 12.5kHz Data&Voice：7K60FXW; 12.5kHz Data Only：7K60FXD | |
| Conducted/Radiated Emission | -36dBm<1GHz; -30dBm>1GHz | |
| Modulation Limiting | ±4.0kHz@20kHz; ±2.5kHz@12.5kHz; ±5.0kHz@25kHz | |
| FM Hum&Noise | 43dB@20KHz; 40dB@12.5kHz; 45dB@25kHz | |
| Adjacent Channel Power | 70dB@20/25kHz; 60dB@12.5kHz | |
| Audio Distortion | ≤3% | |
| Digital Vocoder Type | AMBE++/SELP | |
| Digital Protocol | ETSI-TS102 361-1,-2,-3 | |
| Environmental Specs | ||
|---|---|---|
| Operating Temperature | -30℃～+60℃ | |
| Storage Temperature | -40℃～+85℃ | |
| Dust & Water Protection | IP67 | |
| Humidity | MIL-STD-810 C/D/E/F/G | |
| Vibration,Drop&Shock | MIL-STD-810 C/D/E/F/G | |
| Location Service | ||
|---|---|---|
| Horizontal Position Accuracy | <10 meters | |
| Cold Start (Time to First Fix) | <1 minute | |
| Hot Start (Time to First Fix) | <10 seconds | |
* Die auf dieser Seite gezeigten Produktbilder, Spezifikationen, Funktionen und Zubehörteile können aufgrund fortlaufender Technologie-Upgrades und Produktionsverbesserungen Änderungen unterliegen. Um sicherzustellen, dass Sie das korrekte Produkt und kompatibles Zubehör erhalten, kontaktieren Sie bitte vor Bestellung das Hytera-Verkaufsteam für die neuesten Informationen. Hytera behält sich das Recht vor, Produktdetails ohne vorherige Ankündigung zu ändern.

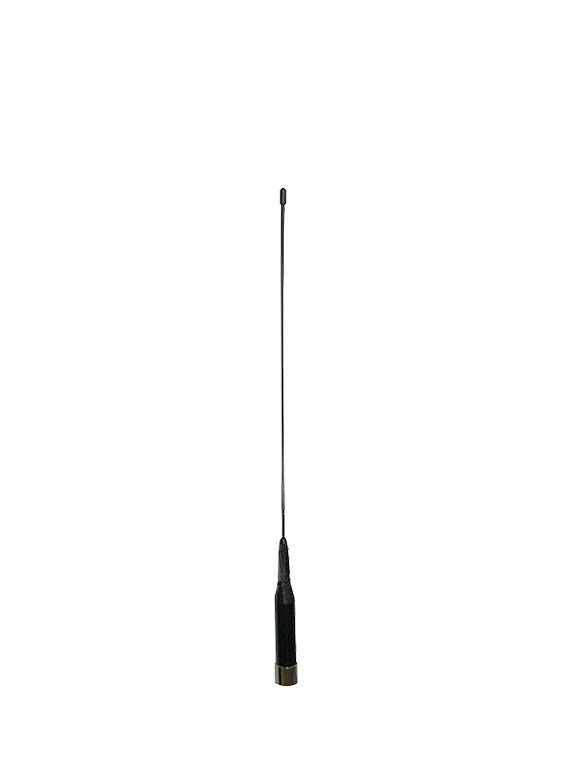

Optional Accessories of RD965
