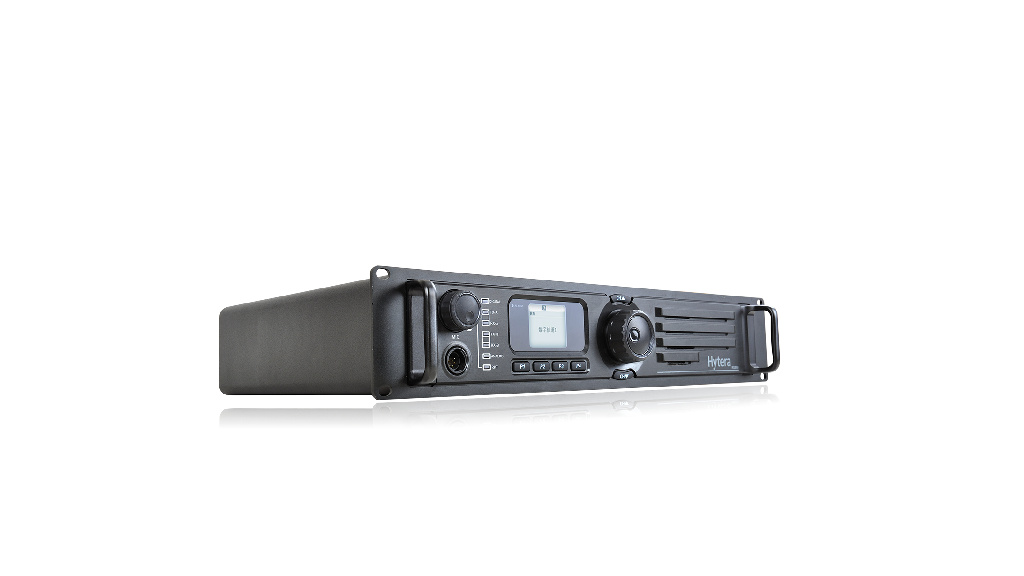

The Hytera RD985 digital repeater is the heart of a multi-site conventional analogue or digital radio network. Offering innovative design and reliability, this repeater delivers excellent coverage with up to 50W power.
General data | |
---|---|
Frequency Range | UHF1:400-470 MHz; UHF2:450-520 MHz; UHF3:350-400 MHz; VHF1:136-174 MHz |
Channel Capacity | 1024 |
Operating Voltage | 13.6 V±15% |
Duty Cycle | 100% |
Current Drain(Standby) | ≤1.0 A |
Current Drain(transmit) | ≤11 A |
Dimensions(H×W×D) mm | 88 mm × 483 mm × 366 mm |
Weight | 8.5 Kg |
Display | 220*176 pixel,262000 colours,2.0 inch,4 rows |
Receiver | ||
---|---|---|
Rated Audio Power Output | 0.5 W |
Transmitter | ||
---|---|---|
RF Power Output | 5-50 W | |
Digital Vocoder Type | AMBE+2™, SELP,NVOC,COMM |
Environmental Specs | ||
---|---|---|
Operating Temperature | -30℃~+60℃ | |
Storage Temperature | -40℃~+85℃ |
Duplexer Installation Kit
Installation accessory for rack-mounted power supply (2U)(Black)
Installation Accessory for Rack-mounted Power Supply (2U)(Gray)
Duplexer Mounting Bracket
Installation Bracket for Power Supply
Installation bracket for the repeater
Duplexer Mounting Bracket
Programming Cable(USB to 10-pin Aviation Connector)
Programming Cable(USB to DB26)
Programming Cable(USB to 10-pin Aviation Connector)
Back-to-back Data Cable(DB26 to DB26)
Repeater Backup Cable
Back-to-back Data Cable
Wireless Link Back-to-Back Cable
AC power cord with either UK or EU plug (RoHS)
