RD985S Professional DMR repeater for large radio networks

RD985S

Repeaters Systems | DMR

The Hytera RD985S is an impressive digital systems repeater. Supporting conventional analogue and digital modes, it can also be used in DMR trunked radio systems (Tier III), and with up to 50W power is responsible for delivering excellent coverage in DMR simulcast and Hytera XPT systems.

Highlights of RD985S

MIXED MODE OPERATION

This feature allows the device to automatically detect and switch between analogue and digital modes based on the signal received.

IP SITE CONNECT

Create and control your network using IP (internet protocol) site connect.

SINGLE-SITE XPT

Hytera XPT (Extended Pseudo Trunking) enables you to use limited spectrum resources across a single site more efficiently without needing a dedicated control channel (chargeable licence).

MULTI-SITE XPT

Extend your Hytera XPT network by connecting multiple sites over IP with simple router hardware (optional) and the additional chargeable licence.

TIER III TRUNKING

DIGITAL ENCRYPTION

Ensuring your transmissions are always secure, advanced encryption available via a chargeable licence.

POWERFUL REPEATER

100% continuous duty cycle from 1W to 50W

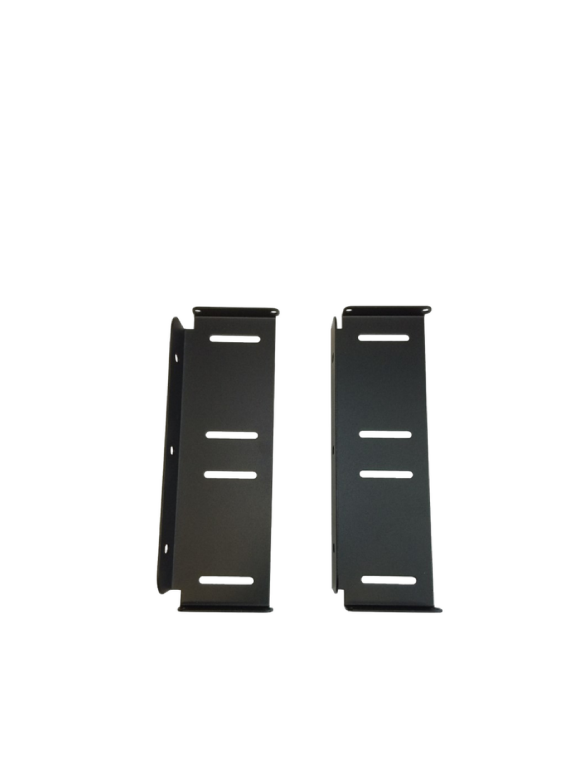

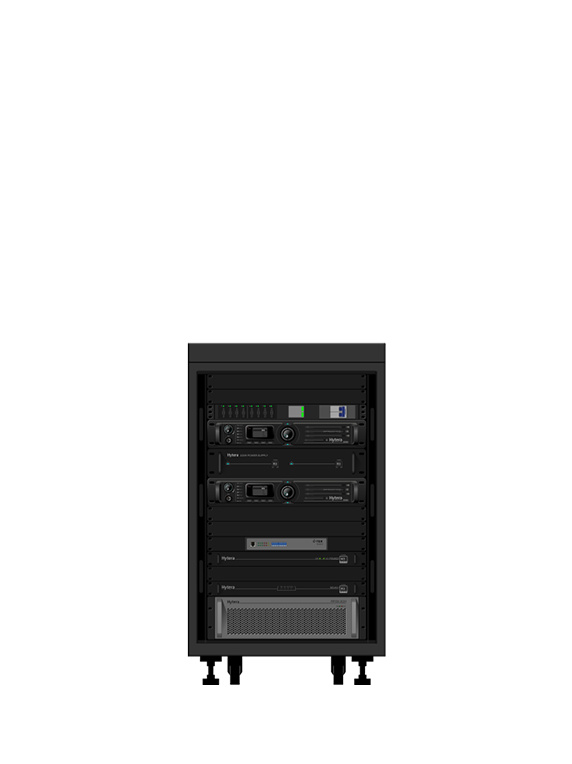

WALL MOUNTING AND RACKING

Optional brackets, simple, flexible installation utilising the specially designed wall mounting or racking.

Specifications of RD985S

  • General data
  • Receiver
  • Transmitter
  • Environmental Specs
General data
Frequency Range UHF1:400-470 MHz; UHF2:450-520 MHz; UHF3:350-400 MHz; UHF5:806-941 MHz; VHF1:136-174 MHz; VHF3:210-270 MHz
Channel Capacity 1024
Operating Voltage 13.6 V±15%
Duty Cycle 100%
Dimensions(H×W×D) mm 88 mm × 483 mm × 366 mm
Weight 8.5 Kg
Display LCD Display:220*176 pixel,262000 colours,2.0 inch,4 rows
Receiver
Rated Audio Power Output 0.5 W
Transmitter
RF Power Output UHF5(935-941 MHz): 5-30 W (continuous); UHF1/UHF2/UHF3: 5-50 W (continuous); UHF5(851-870 MHz): 5-35 W (continuous); VHF1/VHF3: 5-50 W (continuous)
Digital Vocoder Type AMBE+2™, SELP
Environmental Specs
Operating Temperature -30℃~+60℃
Storage Temperature -40℃~+85℃
