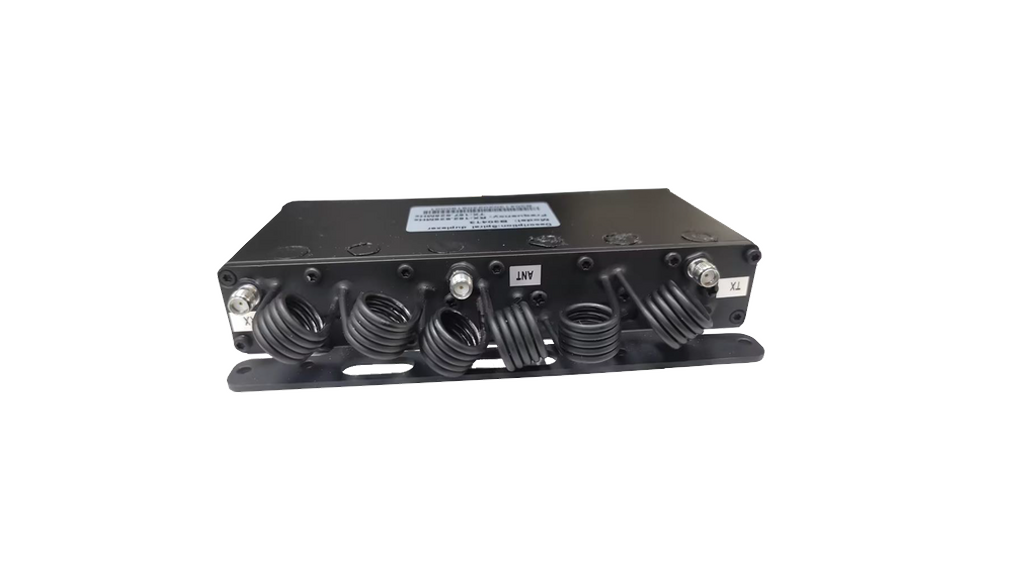

Specifications of DT27
- Specifications
| Specifications | |
|---|---|
| Frequency Range | 136-174 MHz |
| VSWR | ≤1.25 @ +15°C to +35°C ≤1.40 @ -30°C to +60°C |
| Bandwidth | ±100 kHz |
| Insertion loss | ≤1.5 dB @duplex interval f≥5 MHz ≤1.7 dB @duplex interval 4≤f<5 MHz |
| Isolation | ≥75 dB |
| Average input power | 35 W |
| Impedance | 50 Ω |
| Connector | SMA-F |
| Operating temperature | -30°C to +60°C |
| Storage temperature | -40°C to +85°C |
| Appearance | Black paint |
| Dimensions L x W x H | 09 mm x 153.5 mm x 27 mm (±1mm) |
| Weight | 0.8 kg |
