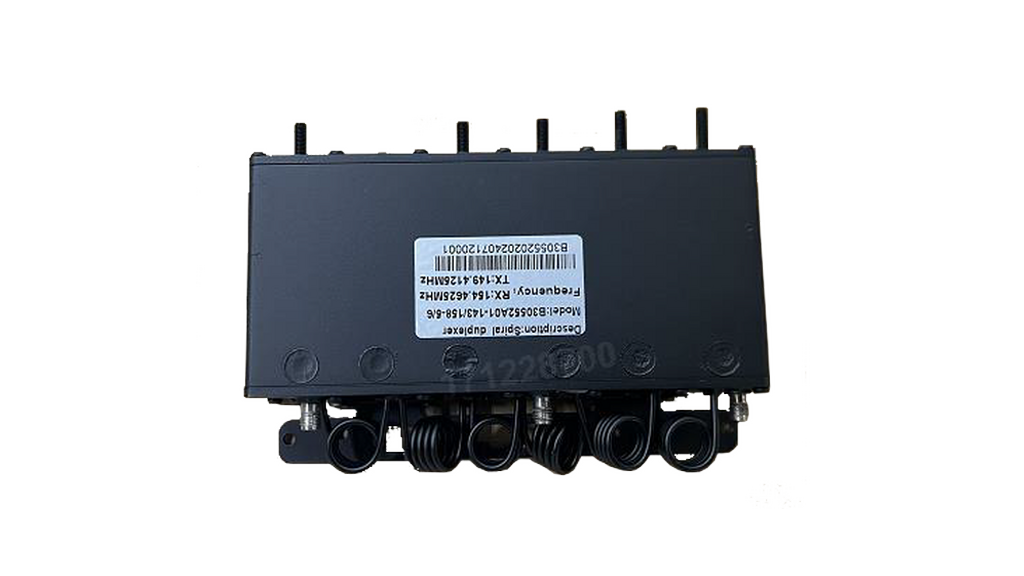

Specifications of DT29
- Specifications
| Specifications | |
|---|---|
| Frequency Ranges | 136-151 MHz 143-158 MHz 150-165 MHz 159-174 MHz |
| Spacing | 5 - 6 MHz 6 - 7 MHz 7 - 8 MHz 8 - 9 MHz |
| Insertion loss | ≤1.65 dB (typ. 1.5 dB) (for 5-6MHz/6-7MHz) ≤1.5 dB (typ. 1.3 dB) (for 7-8MHz/8-9MHz) |
| VSWR | ≤1.5 dB (typ. 1.3 dB) |
| Isolation | ≥70 dB |
| Average input power | 35 W |
| Impedance | 50 Ω |
| Connector | SMA-F |
| Operating temperature | -30°C to +60°C |
| Storage temperature | -40°C to +85°C |
| Appearance | Black paint |
| Dimensions L x W x H | 121 mm x 153.5 mm x 27 mm (±1mm) |
| Weight | 0.8 kg |
* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
