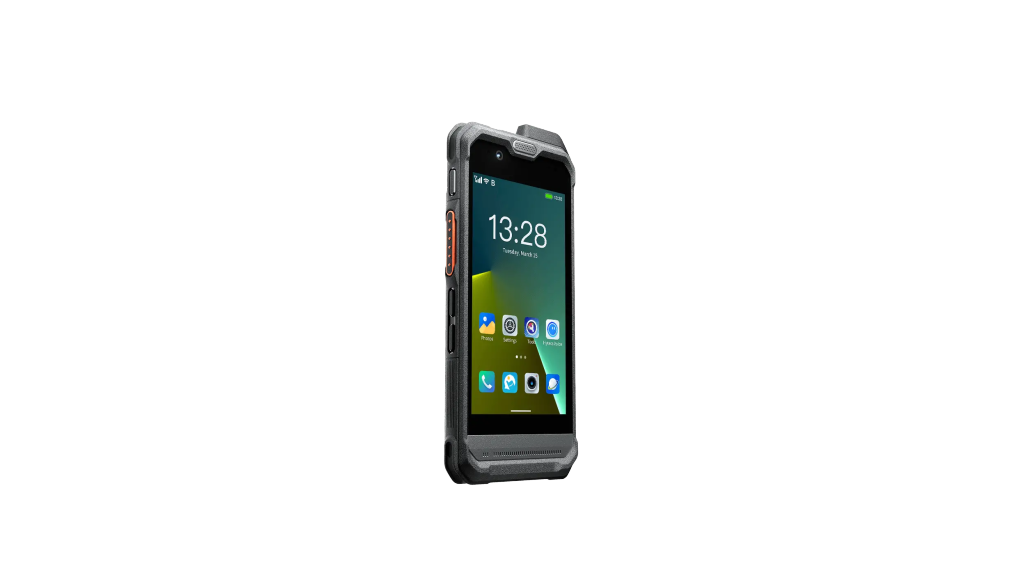

PNC460U Intrinsically Safe Smart Device

PNC460U

Handheld | LTE | GPS

The PNC460U is a UL913-certified intrinsically safe smart device with the capabilities of large-screen smartphone and push-to-talk over cellular (PoC) radio rolled into one. It provides purpose-built apps, instant PoC calls, video-based dispatch, and more to get things done in less time and with less hassle. Work safer. Work more efficiently.

Highlights of PNC460U

Enhance Workplace Safety

The PNC460U is designed for hazardous locations with potentially explosive gas and combustible dust, in compliance with the explosion-proof requirements for use in Class I, II, III; Division 1; Groups C–G; T4 and -20°C to +60°C. So the PNC460U can always provide reliable communications and efficient services for you, even in extreme working environments.

Simplify Your Workday

With the Android 12 OS, the PNC460U delivers the familiar experience and ease of use that the professionals want. More importantly, it provides an open and inclusive platform to run a wide variety of key apps making everyday tasks easier and faster.

Exceptional Durability

The PNC460U is perfect for professionals working in the most demanding environments. lt has tough exteriors and reinforced components to survive dust, water, snow, 1.5-meter sudden drops, extreme temperatures (-20℃ to +60℃), and more.

Large HD Screen

As a good assistant, the PNC460U helps you work more efficiently. The stunning 5-inch screen gives you plenty of space to use multiple apps at work. Additionally, this screen is sunlight readable and sensitive enough to react to the touch of gloved hands and wet fingers.

Precise Positioning

Thanks to the built-in dual-frequency GPS (L1+L5) chip, the PNC460U provides the real-time, precise location for the dispatcher with the accuracy improved to 2 meters. Know where your devices are. Keep your personnel safe.

Loud and Clear Audio

With powerful speakers and sophisticated noise cancellation technologies, the PNC460U delivers crystal-clear audio in any noisy environment, such as oil exploration sites, petrochemical plants, and refineries.

External Antenna

Unlike the radios with the built-in antenna, the PNC460U comes with an external antenna that has a 70% higher RX capability. So even in the area with weak signal strength, the PNC460U still conveys accurate information without missing any words.

Powerful Camera System

The PNC460U has unmatched photography capabilities, thanks to a 50 MP rear camera, HDR technology, and image stabilization algorithm. It can capture clear pictures and stable live videos in the field, and feed them to the command center in real time over the LTE or WLAN network.

Push-to-Talk

With the Hytera HyTalk Pro app, the PNC460U can communicate with PDT, DMR, or TETRA radios over the 2G, 3G, LTE or WLAN network. It delivers instant one-to-one or one-to-group communications anywhere in the world once you press down the tactile and large PTT key. This ensures the flow of information at all time, even during the most critical circumstances.

Specifications of PNC460U

  • Wireless Data Communication
  • General
  • Environmental
  • Certification
Wireless Data Communication
LTE TDD-LTE: B34/B38/B39/B40/B41 (2496–2690 MHz); FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B26/B28
WCDMA B1/B2/B3/B4/B5/B8
GSM 850/900/1800/1900
WLAN Support
NFC Support
Positioning GPS (L1&L5)/A-GPS/BDS/GLONASS/Galileo
General
Dimensions(H×W×D) mm 164×77×23mm
Weight About 337g
Operating System Android 12
Memory 6GB RAM + 128GB ROM
Sensors Acceleration/gyroscope/geomagnetic/opto-sensor
Peripheral Interface USB Type-C port; 3.5 mm audio jack
Display 1920×1080, 5.0 inches
Card Slots 2 × Nano-SIM
Camera Rear: 50 MP; Front: 8 MP
Battery 4,580 mAh
Environmental
Operating Temperature ‒20°C ~ +60°C
Storage Temperature ‒30°C ~ +70°C
ESD IEC 61000-4-2 ±12 kV (air) ±6 kV (contact)
Dust & Water Protection IP68
Vibration,Drop&Shock 1.5m
Certification
Certification UL913/CE/MIL-STD-810/IP68

* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
