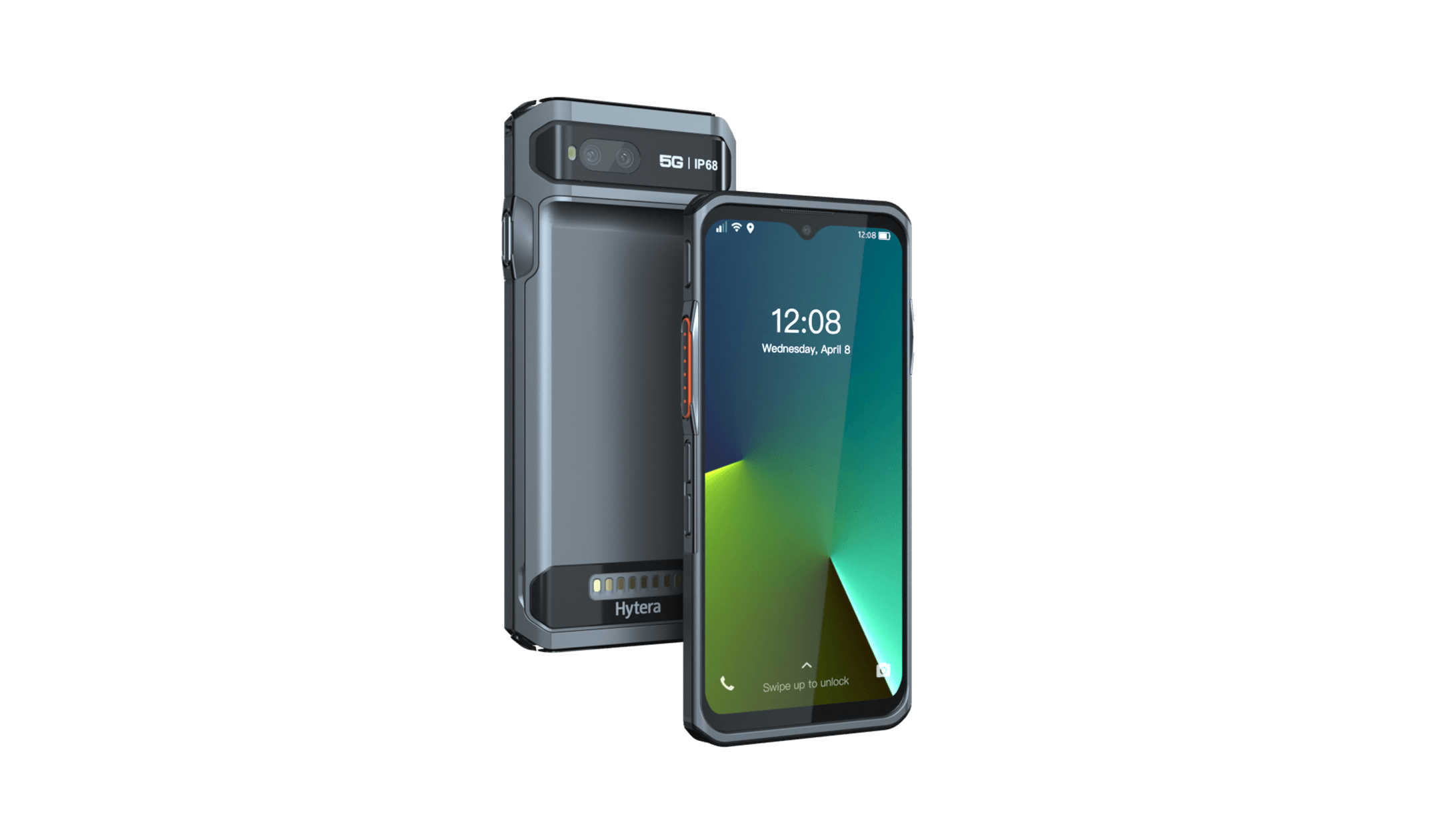

Highlights of PNC560
3GPP MCX SERVICES
The PNC560 supports dedicated 3GPP MCX service QCIs and 40ms short MSP for eMBMS service
and complies with the latest 3GPP release features by the HyTalk MC platform.
3 HIGH-RESOLUTION CAMERAS
Separate telephoto lens and wide-angle lens, covering different field scenarios. Low-light
photography and HDR (High Dynamic Range) for clearer image at night or strong light-contrast
environment. Innovative lens stabilization algorithm reduces blurring associated with
camera motion.
HW TAMPER-PROOF
Smart detection on unauthorised hardware disassembling, automatic system restore &
user data cleaning once detected, prevents implantation of malicious hardware like
tracker or tapping device, providing utmost system and data protection
LOUD AND CLEAR AUDIO
The dual-speaker, together with the intelligent power amplifier, enables the PNC560
to deliver loud clear audio. The AI-based noise cancellation, echo reduction, and
wind noise cancellation help to filter the noise and recognize the voice to improve
clarity.
UNMATCHED DURABILITY
Rated with IP68, the PNC560 is exceptionally dust and water resistant. Furthermore,
the PNC560 stands up to 1.5-meter drop tests and extreme temperatures from –20°C to
+60°C.
BARCODE AND QR CODE SCANNING*
The PNC560 can quickly read barcodes or QR codes to obtain the information from day
to night. It greatly helps boost the productivity of warehouse staff, ticket officers
and night shift workers.*Optional

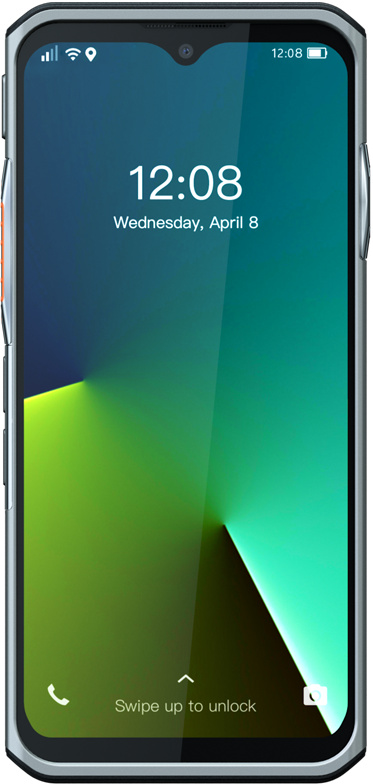

6.3-Inch 1080P Touchscreen
Dewdrop full screen and outdoor glove operation

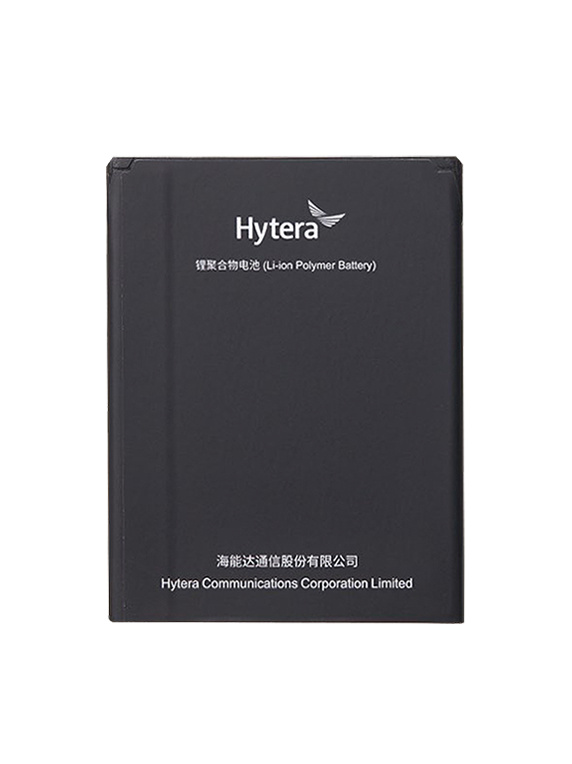

5,040 mAh High-Capacity Battery

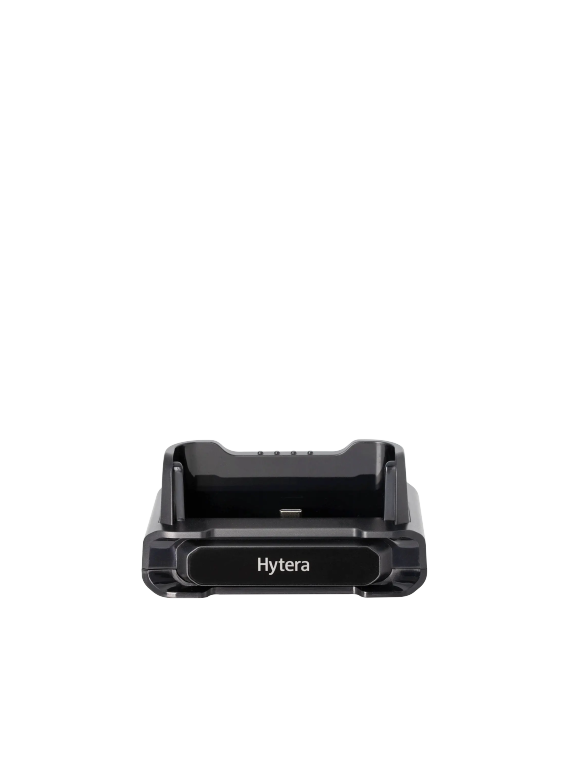

Detachable battery, longer working time and desktop charger +18W QC3.0 for easy fast battery charging
PTT Button
Real-time communication
Durable Body
IP68 dust & water proof and 1.5m drop resistant
Triple Cameras
8MP front camera, a wide angle lens and a telephoto rear camera
Dual 5G Access
Lightning-fast speed
Specifications of PNC560
- General
- Frequency Band
- Multimedia
- Environment
| General | |
|---|---|
| Operating System | Android 12 |
| Memory | RAM: 6 GB, ROM: 128 GB Micro SD: 256 GB (Max) |
| Dimensions (H x W x D) | 166.6 x 77.1 x 13mm |
| Weight | ~270 g |
| Screen Size | 6.3 inches |
| Screen Resolution | 2340x1080 |
| Cameras | Front: 8 MP, Rear: 48 MP*and 8 MP |
| Flashlight | Available |
| Battery | 5,040 mAh |
| Charging | USB Type C; Charger |
| Card Slot | 2 x Nano SIM, 1 x Micro SD |
| Motor | Available |
| Speaker | <3W (Two Speakers) |
| WLAN | 2.4&5 GHz 802.11a/b/g/n/ac |
| Sensor | Fingerprint, accelerometer, gyroscope, geomagnetic, infrared sensor, opto-sensor |
| Positioning | GPS/BDS/GLONASS/GALILEO/A-GPS |
| BT | BT 5.0 |
| NFC | Available |
| Certification | FCC/CE/IC/ GMS |
| Frequency Band | ||
|---|---|---|
| Broadband Network | 5G: N1/N2/N3/N5/N20/N28/N41/N66/N71/N78 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B26/B28 LTE-TDD: B38/B39/B40/B41/B42/B43/B48 GSM: 850/900/1800/1900 WCDMA: B1/B2/B4/B5/B8 | |
| Multimedia | ||
|---|---|---|
| Video Resolution | 1080p@30fps | |
| Video File Format | MP4, 3GP | |
| Video Coding Format | P0, H.264, BP/MP/HP, SP/ASP, DivX 4x/5x/6x, VP9, MP | |
| Photo File Format | JPG, GIF, BMP, PNG, WebP | |
| Audio File Format | MP3 | |
| Audio Coding Format | ACC+, eAAC, AMR-NB, AMR-WB, G.711, Windows Media Audio, (WMA) 9/10 Pro | |
| Environment | ||
|---|---|---|
| Operating Temperature | -20℃ to +60℃ | |
| Storage Temperature | -30℃ to +70℃ | |
| Environmental Compliance | RoHS/REACH | |
| ESD | IEC 61000-4-2, (ESD)±12 kV (Air); ±8 kV (Contact) | |
| Ingress Protection | IP68 | |
| Drop-proof | 1.5m | |
* Die auf dieser Seite gezeigten Produktbilder, Spezifikationen, Funktionen und Zubehörteile können aufgrund fortlaufender Technologie-Upgrades und Produktionsverbesserungen Änderungen unterliegen. Um sicherzustellen, dass Sie das korrekte Produkt und kompatibles Zubehör erhalten, kontaktieren Sie bitte vor Bestellung das Hytera-Verkaufsteam für die neuesten Informationen. Hytera behält sich das Recht vor, Produktdetails ohne vorherige Ankündigung zu ändern.
Standard Accessories of PNC560
