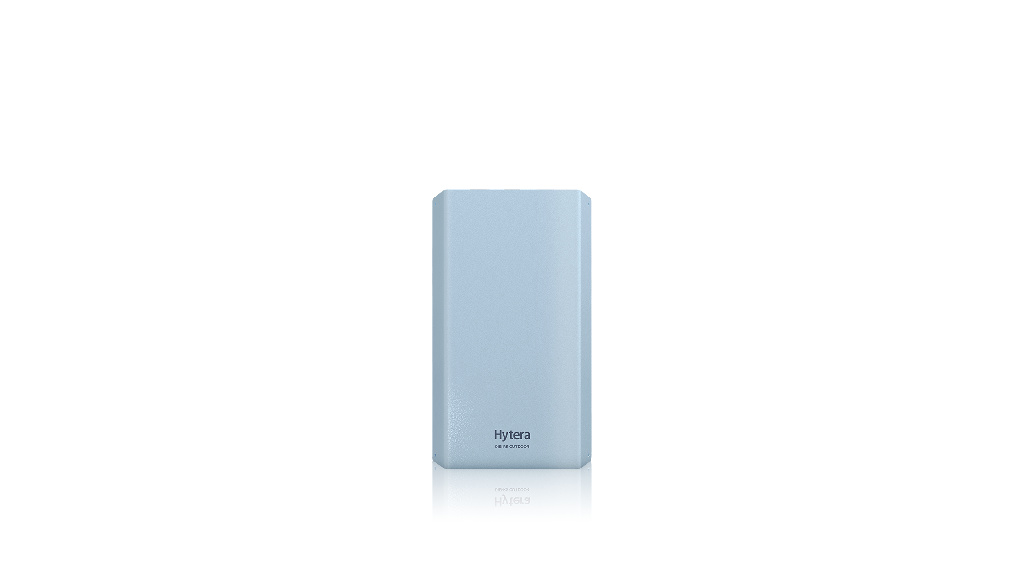

DIB-R5 Outdoor TETRA Base Station

DIB-R5 Outdoor

Repeaters Systems | TETRA | GPS

The DIB-R5 outdoor is designed for outdoor operation in harsh conditions thanks to IP65 rating. With compact structure and weighing only 10 kg, it can be flexibly mounted on the wall or pole to extend coverage. Offering up to two TETRA carriers, the DIB-R5 supports dual diversity for optimal reception and low power consumption.

Highlights of DIB-R5 Outdoor

Robust and Reliable

RF power (TOC): 20 W; Operating temperature: -30°C to +60°C; IP65 rated

Power Saving

Max. 75 W power consumption; Passive cooling; DC and solar power supply supported

Easy Maintenance

Metal housing and key locking. Remote configuration and upgrade

Flexible Installation

The lightest one-box design. Unique slider accessory

Small and Exquisite

The smallest and lightest outdoor station in the industry, is easy to carry and install

Advanced Protection

IP65 protection grade design, adapt to all kinds of harsh and complex environment

Specifications of DIB-R5 Outdoor

  • General data
  • Environmental Specs
General data
Dimensions(H×W×D) mm 426 mm x 250 mm x 167 mm (including mast mounting bracket); 426 mm x 250 mm x 135 mm (including wall mounting bracket)
Weight 10 kg
Frequency Range 380 - 430 MHz (RX/Tx); 450 - 470 MHz (Rx/Tx); 806 - 870 MHz (Rx/TX);
ToC Power 43 dBm
Diversity Single, Dual diversity
Max. Carrier Capacity Max.2 carrier
RX Sensitivity(Static) -120 dBm (BER 4 %)
RX Sensitivity(Dynamic) -113 dBm (TU 50 [TCH 7.2, BER 4 %]);
Synchronization GNSS(GPS/Galileo/Glonass/Beidou)
Power Supply 48 VDC
Power Consumption <75 W(@ 20W Tx ToC)
Dust & Water Protection IP65
Environmental Specs
Operating Temperature -30 °C ~ +60 °C (-22 °F ~ +140 °F)
Storage Temperature -40 °C ~ +70 °C (-40 °F ~ +158 °F)
