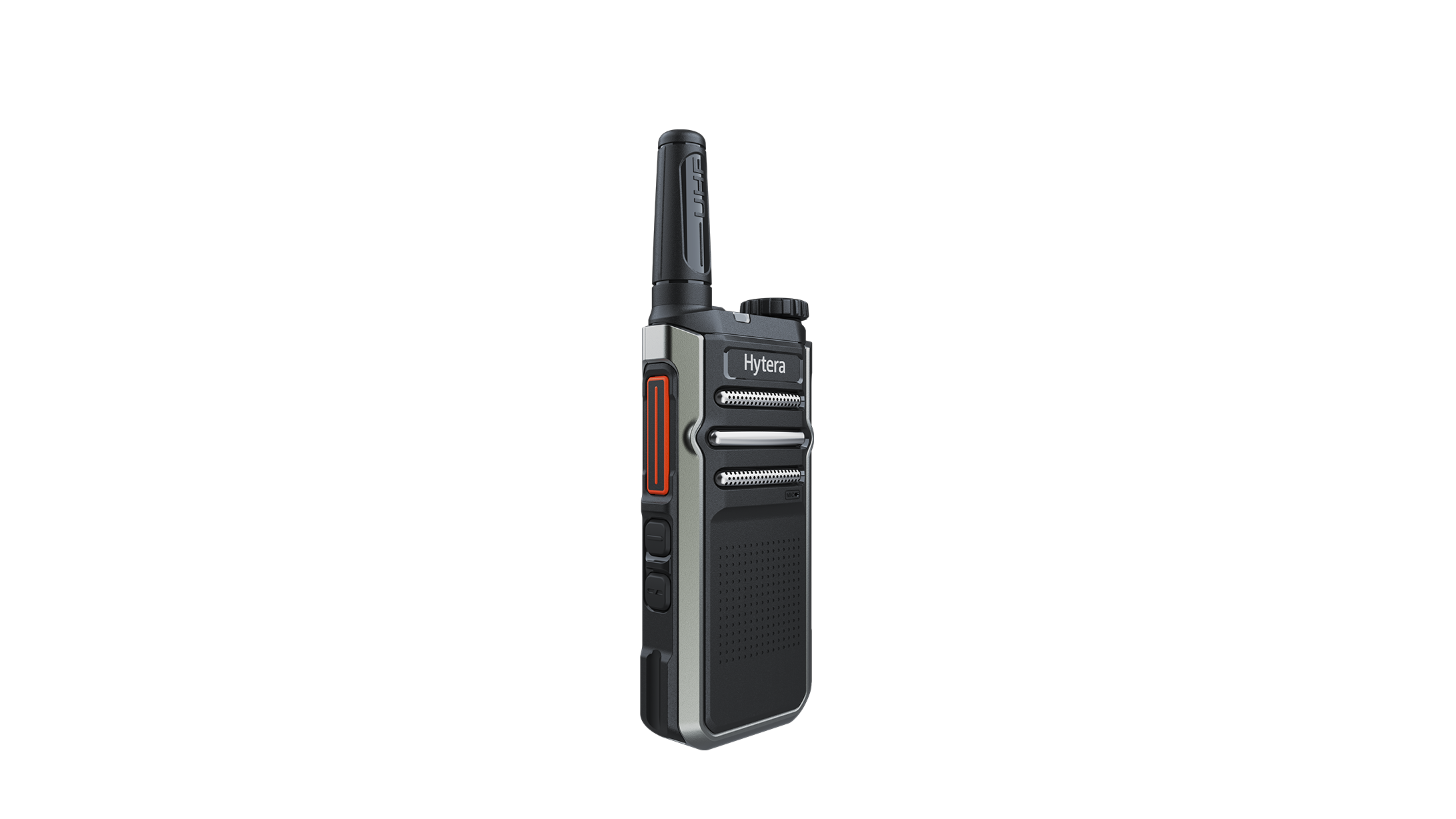

Highlights of AP325
EASY TO CARRY
The very low weight and the 4.5 cm ultra-stubby antenna facilitates carrying anywhere
on the body.
CLEAR AND LOUD AUDIO
Professional noise reduction algorithm | up to 20 dB noise reduction | 3W speaker
outputs up to 90dB audio
SIMPLE AND STYLISH
Metal channel selector knob | metal mesh speaker | dual-shot injection molding & plating
case
EXTENDED COMMUNICATIONS DISTANCE
Stay always connected with brand-new RF solution, 3W TX power and a RX sensitivity
up to 0.18 μV
FAST CHARGING
100% charged in 2.5 hours | Thanks to USB Type C connectivity it can be easily charged
with standard USB cables and power supply units and even USB power banks.
IMPROVED USER EXPERIENCE
Long-life keys | 3.5 mm jack audio connector | USB Type-C port for programming and
upgrading.
Specifications of AP325
- General
- Environmental
| General | |
|---|---|
| Frequency Range | Ua: 400-440 MHz Uc: 430-470 MHz |
| Channels & zones | Channel capacity: 32 Zone capacity: 2 Channels per zone: 16 |
| Channel Spacing | 12.5kHz/20kHz/25kHz |
| Operating Voltage | 3.8V (rated) |
| Battery | 2200mAh Li-Polymer (built-in) |
| Battery Life (5/5/90 Duty Cycle, High TX Power) | 10 hours |
| Frequency Stability | ±0.5ppm |
| Antenna Impedance | 50 Ω |
| Dimensions (H x W x D) (mm) | 118 x 55 x 25 mm |
| Weight (with antenna & battery) | 130 g |
| Bluetooth | not available |
| Environmental | ||
|---|---|---|
| Operating Temperature | -20℃ to +50℃ | |
| Storage Temperature | -40℃ to +85℃ | |
| ESD | IEC 61000-4-2 (Level 3) ±4 kV (contact) ±8 kV (air) | |
| Dust and Water Intrusion | none | |
* Die auf dieser Seite gezeigten Produktbilder, Spezifikationen, Funktionen und Zubehörteile können aufgrund fortlaufender Technologie-Upgrades und Produktionsverbesserungen Änderungen unterliegen. Um sicherzustellen, dass Sie das korrekte Produkt und kompatibles Zubehör erhalten, kontaktieren Sie bitte vor Bestellung das Hytera-Verkaufsteam für die neuesten Informationen. Hytera behält sich das Recht vor, Produktdetails ohne vorherige Ankündigung zu ändern.
Standard Accessories of AP325
Optional Accessories of AP325
