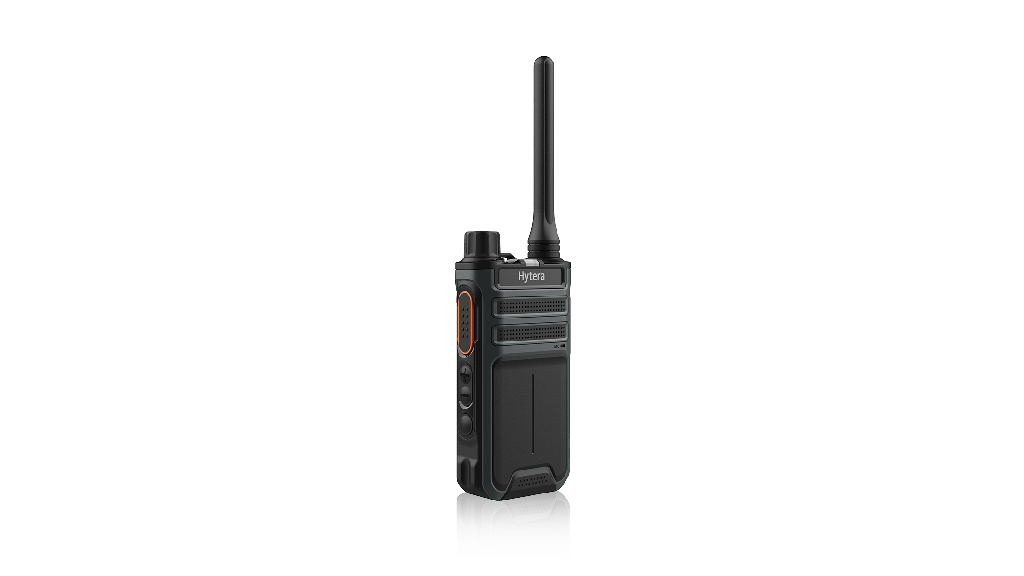

AP515 Portable Analogue Business Radio

AP515

Handheld | Analogue

The AP515 series business radio is the perfect choice for instant communication. With a 3W speaker, the compact and light AP5 series can deliver loud and clear audio that allows you to hear and be heard in background noise.

Highlights of AP515

EXTENDED COMMUNICATIONS DISTANCE

Brand-new radio frequency scheme and antenna design | Sensitivity up to 0.18 μV | Communication distance increased by 11%

CLEAR AND LOUD AUDIO

Noise cancellation | Loudness up to 90 dB (at 30 cm away, 300 Hz –3 kHz), increased by 3.4%

IMPROVED USER EXPERIENCE

Flame-retardant polycarbonate plastic housing | Worm finish | Double-shot injection | Long-life keys | Center-placed antenna and knob from the side view | Independent volume keys | 9-pin accessory connector

FAST CHARGING

95% charged in 2.5 hours and fully charged in just 3.15 hours. Thanks to USB Type C connectivity. it can be easily charged with standard USB cables and power supply units and even USB power banks.

Specifications of AP515

  • General
  • Receiver
  • Transmitter
  • Environmental
General
Frequency Range 400-470 MHz 136-174 MHz
Channels & zones Channel capacity: 32 Zone capacity: 2 Channels per zone: 16
Channel Spacing 12.5kHz / 20kHz / 25kHz
Operating Voltage 3.7 V (rated)
Battery 4000 mAh 3.7V
Battery Life (5/5/90 Duty Cycle, High TX Power) 18 h
Frequency Stability ±0.5 ppm
Antenna Impedance 50 Ω
Dimensions (H x W x D) (mm) 105 x 55 x 29.5 mm
Weight (with antenna & battery) 200g ±5 g
Bluetooth (Optional) BT 5.0 BLE+EDR
Receiver
Sensitivity 0.18 μV (12 dB SINAD)
Adjacent Channel Selectivity TIA-603: 60 dB @12.5kHz; 70 dB @20/25kHz ETSI: 60 dB @12.5kHz; 70 dB @20/25kHz
Intermodulation TIA-603: 70 dB @12.5/20/25kHz ETSI: 65 dB @12.5/20/25kHz
Hum and Noise 40 dB @12.5kHz; 43 dB @20kHz; 45 dB @25kHz
Rated Audio Power Output 0.5 W
Rated Audio Distortion ≤3 %
Audio Response +1~-3 dB
Conducted Spurious Emission < -57 dBm
Transmitter
RF Power Output VHF: 4-5W / 1W UHF: 3-4W / 1W
FM Modulation 11K0F3E @12.5 kHz 14K0F3E @20 kHz 16K0F3E @25 kHz
Conducted/Radiated Emission -36 dBm<1GHz; -30 dBm>1GHz
Modulation Limiting ±2.5 kHz @12.5 kHz; ±4.0 kHz @20 kHz; ±5.0 kHz @25 kHz
FM Hum & Noise 40dB @12.5 kHz; 43dB @20 kHz; 45 dB @25 kHz
Adjacent Channel Power 60dB @12.5 kHz; 70dB @20/25 kHz
Environmental
Operating Temperature -20℃ to +60℃
Storage Temperature -40℃ to +85℃
ESD IEC 61000-4-2 (Level 4) ±8kV (contact); ±15kV (air)
Dust and Water Intrusion IEC60529-IP54
Humidity MIL-STD-810 H
Shock and Vibration MIL-STD-810 H
