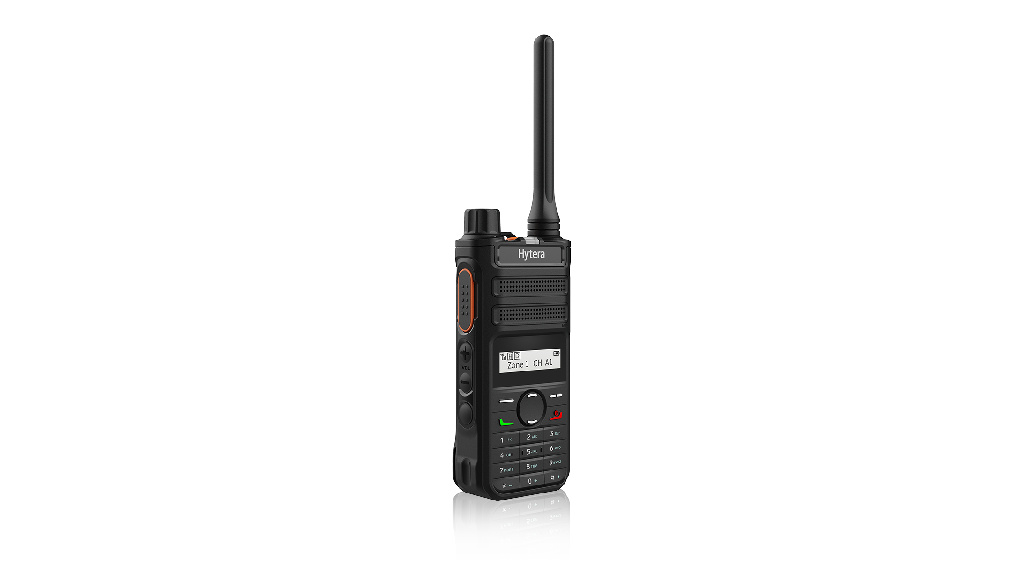

AP585 Portable Analogue Business Radio

Handheld | Analogue

The AP585 series business radio is the perfect choice for instant communication. With a 3W speaker, the compact and light AP5 series can deliver loud and clear audio that allows you to hear and be heard in background noise. It has an incredibly long 12-hour battery life in its most minimal form. Type-C USB charge plug allows users to charge the radio with a power bank anywhere. With the extended range and a bunch of productivity and efficiency increasing features, the AP5 series will ensure you stay connected and productive.

Highlights of AP585

SCRAMBLER

Protects your voice communications against casual listeners. Inverts and restores the frequency spectrum of a certain frequency point to encrypt the voice

SCAN

Allows you to listen to activities on other channels, keeping track of your colleagues

AROUND

Allows you to continue communication in direct mode when the repeater malfunctions or the radio is out of the coverage of the repeater

Specifications of AP585

General
Receiver
Transmitter
Environmental

General
Frequency Range	400-470 MHz 136-174 MHz
Channels & zones	Channel capacity: 128 Zone capacity: 8 Channels per zone: 16
Channel spacing	12.5kHz/20kHz/25kHz
Operating voltage	7.4V (rated)
Battery	1500 mAh 7.4V 2200 mAh 7.4V (optional)
Battery life (5/5/90 duty cycle, high TX power)	12 h (1500 mAh) 16 h (2200 mAh)
Dimensions (H x W x D) (mm)	115 x 54.5 x 29.5 mm
Weight (with antenna & battery)	230g
Display	1.44 inch LCD
Bluetooth (Optional)	BT 5.0 BLE+EDR

Receiver
Sensitivity	0.18μV (12dB SINAD)
Adjacent channel selectivity	TIA-603: 60 dB @12.5 kHz / 70 dB @20/25 kHz ETSI: 60 dB @12.5 kHz / 70 dB @20/25 kHz
Intermodulation	TIA-603: 70 dB ETSI: 65 dB
Spurious response rejection	TIA-603: 70 dB ETSI: 70 dB
Blocking	TIA-603: 80 dB ETSI: 84 dB
Hum and noise	40 dB @12.5 kHz 43 dB@20 kHz 45 dB@25 kHz
Rated audio power output	1W
Rated audio distortion	≤3%
Audio response	+1 to -3dB
Conducted spurious emission	<-57 dBm

Transmitter
RF power output	UHF：4 W/1 W; VHF：5 W/1 W
FM Modulation	11K0F3E @12.5kHz 14K0F3E @20kHz 16K0F3E @25kHz
Conducted/radiated emission	-36dBm＜1GHz; -30dBm＞1GHz
Modulation limiting	±2.5kHz @12.5kHz; ±4.0kHz @20kHz; ±5.0kHz @25kHz
FM hum & noise	40dB @12.5kHz; 43dB @20kHz; 45dB @25kHz
Adjacent channel power	60dB @12.5kHz; 70dB @20/25kHz
Audio distortion	≤3%

Environmental
Operating Temperature	-20℃ to +60℃
Storage Temperature	-40℃ to +85℃
ESD	IEC 61000-4-2 (level 4) ±8 kV (contact) ±15 kV (air)
Ingress protection	IEC60529-IP54
Humidity	MIL-STD-810 H
Shock and vibration	MIL-STD-810 H

* Die auf dieser Seite gezeigten Produktbilder, Spezifikationen, Funktionen und Zubehörteile können aufgrund fortlaufender Technologie-Upgrades und Produktionsverbesserungen Änderungen unterliegen. Um sicherzustellen, dass Sie das korrekte Produkt und kompatibles Zubehör erhalten, kontaktieren Sie bitte vor Bestellung das Hytera-Verkaufsteam für die neuesten Informationen. Hytera behält sich das Recht vor, Produktdetails ohne vorherige Ankündigung zu ändern.
