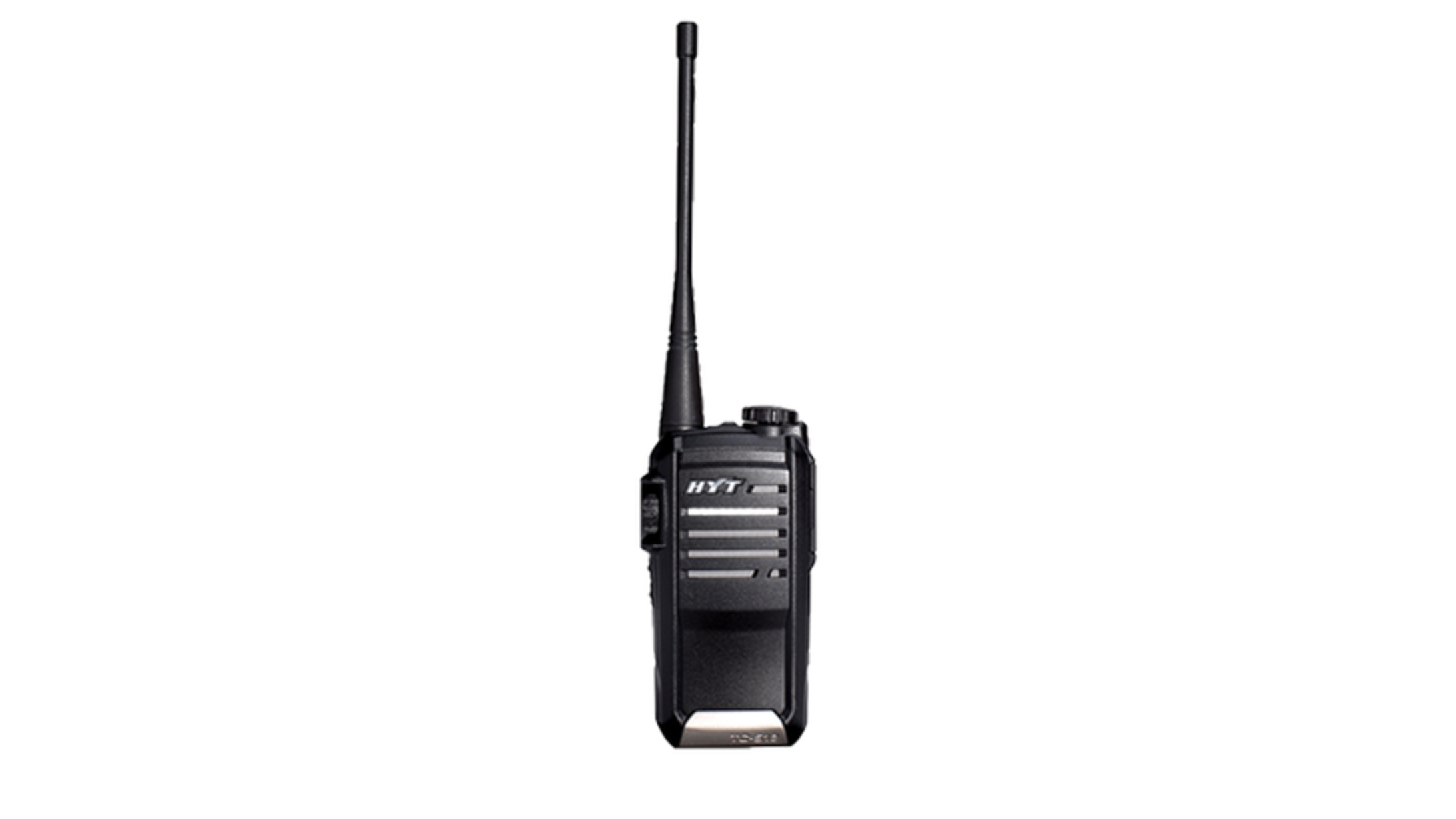

The Hytera TC-518 portable radio highlights small size, wide band coverage, stable output power and clear audio quality, which makes it ideal for most commercial applications. Featuring wideband coverage, Voice Operated Transmit (VOX), channel scan, High/Low Power Switchable, and programmability for 25KHz or 12.5KHz channel spacing, the TC-518 combines convenience with flexibility.
General | |
---|---|
Frequency Range | VHF: 136-174MHz UHF: 350-390MHz, 400-470MHz, 450-520MHz |
Channel Capacity | 16 |
Channel Spacing | 25/12.5KHz |
Operating Voltage | 7.4V |

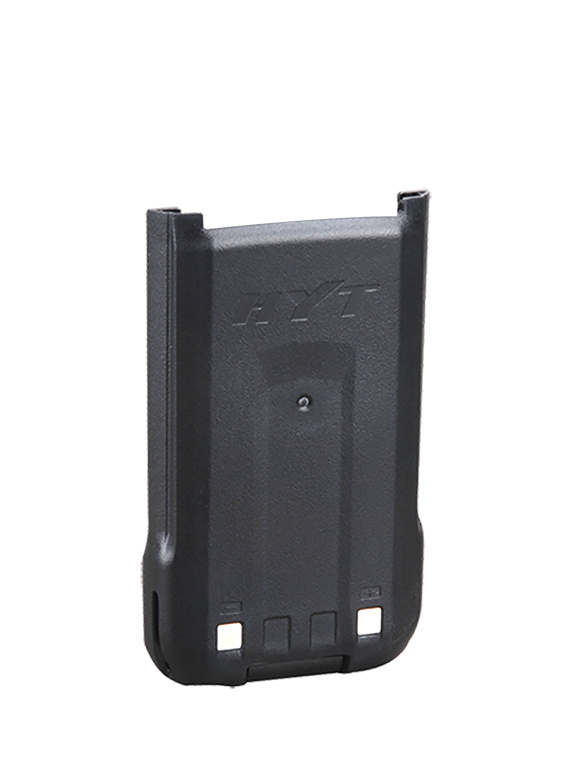

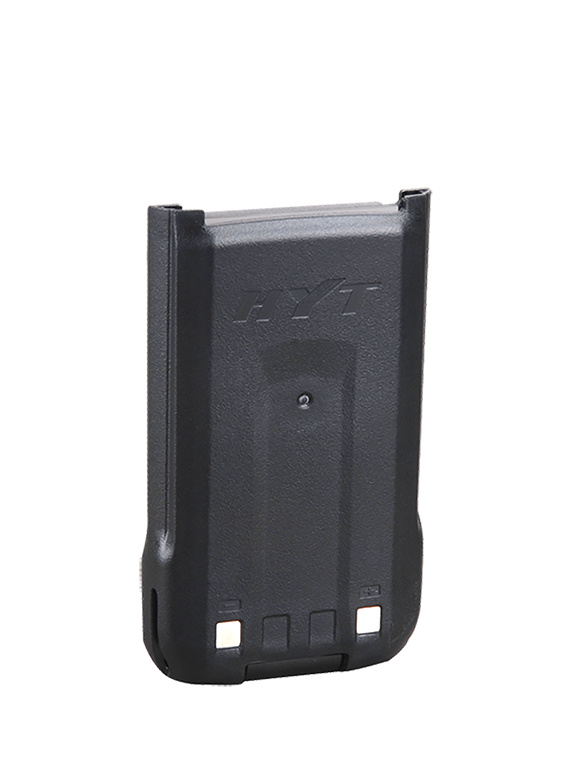

Battery | 1300mAh Li-Ion |
Battery Life (5-5-90 Duty Cycle) | 9 hours for 1300mAh Li-Ion Battery 14 hours for 2000mAh Li-Ion Battery |
Frequency Stability | ±2.5ppm |
Operating Temperature | -13°F to +149°F (-25°C to +65°C) |
Antenna impedance | 50Ω |
Dimensions (HxWxD) | 4.33" x 2.04" x 1.1" (110 x 52 x 28mm) |
Weight | 8.4 ounces (240 grams) |
Receiver | ||
---|---|---|
Sensitivity | ≤0.25uV/0.28uV | |
Selectivity | ≥70dB/55dB | |
Intermodulation | ≥60dB | |
Spurious Response Rejection | ≥70dB | |
Signal to Noise | ≥40/34dB |
Transmitter | ||
---|---|---|
Rated Audio Power Output | 0.5W | |
Rated Audio Distortion | ≤5% | |
RF Power Output | VHF: 5W/2W UHF: 4W/2W | |
Modulation | F3E | |
Spurious and Harmonics | -36dBm (<1GHz), -30dBm (>1GHz) | |
FM Noise | 40dB/34dB | |
Audio Distortion | ≤5% |
* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
VHF(136-147MHz)17cm
VHF(136-147MHz/1575MHz)12cm
VHF(136-147MHz/1575MHz)17cm
VHF(147-160MHz/1575MHz)12cm
VHF(147-160MHz/1575MHz)17cm
VHF(136-174MHz/1575MHz)20cm
VHF(150-165MHz/1575MHz)12cm
VHF(146-174MHz)15cm
VHF(145-175MHz)11.9cm
VHF(160-174MHz)17cm
VHF(160-174MHz/1575MHz)12cm
VHF(160-174MHz/1575MHz)17cm

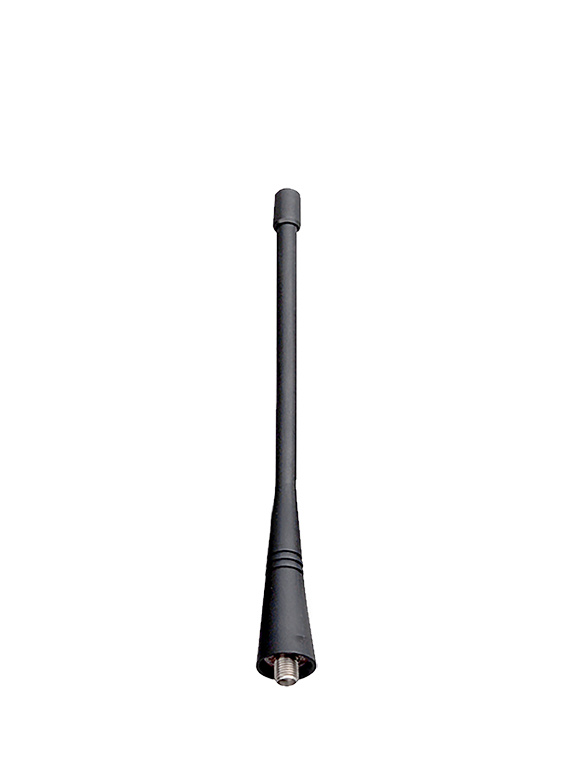

UHF flexible whip antenna 400-430 MHz, 16.7 cm, SMA (female)
UHF Stubby antenna 420-470 MHz, 9cm, SMA (female) -- for BD5, PD5, HP5, HP6 series
UHF(420-470MHz)15.6cm
UHF(440-470MHz)9cm
UHF(440-470MHz)15.7cm
