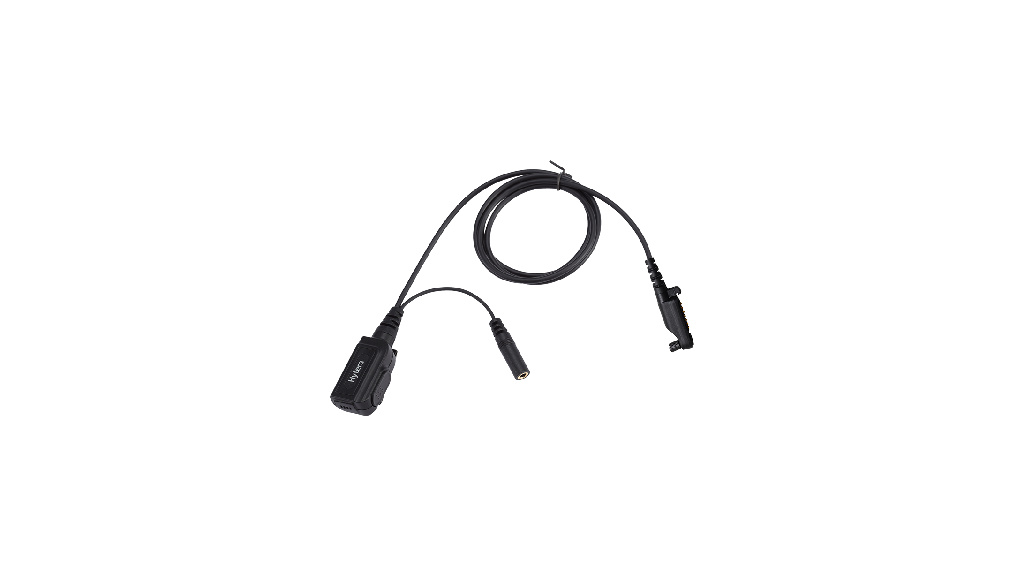

PTT and Microphone cable (for use with receive-only Earpiece) -- for PD6 and X1 series

ACN-02

IP54 compliant base set with PTT button and microphone 1. can be used with a range of Hytera earbuds such as ES-01, ES-02, EH-01, EH-02 or EHS20 2. common 3.5 mm jack socket enables earbuds to be connected directly to the ACN-02 3. easy replace earbuds for comfort and hygiene purposes unit can be clipped for comfortable wearing Attention: use ACN-02P for HP5 / HP6 / HP7 series and PDC680, PDM680, PTC680, PDC550, PT790

Specifications of ACN-02

Weight about 35 g
Color black
PTT Key available
VOX none
Emergency Key none
Microphone Sensitivity –45±3 dB @ 1 kHz 3.0 V 2.2 KΩ, 0 dB = 1 V/Pa
IP Rating IP54
Operating Temperature –20℃ to 60℃
Storage Temperature -40~85℃
Note Compatible with receive-only earpiece(φ3.5mm jack)
