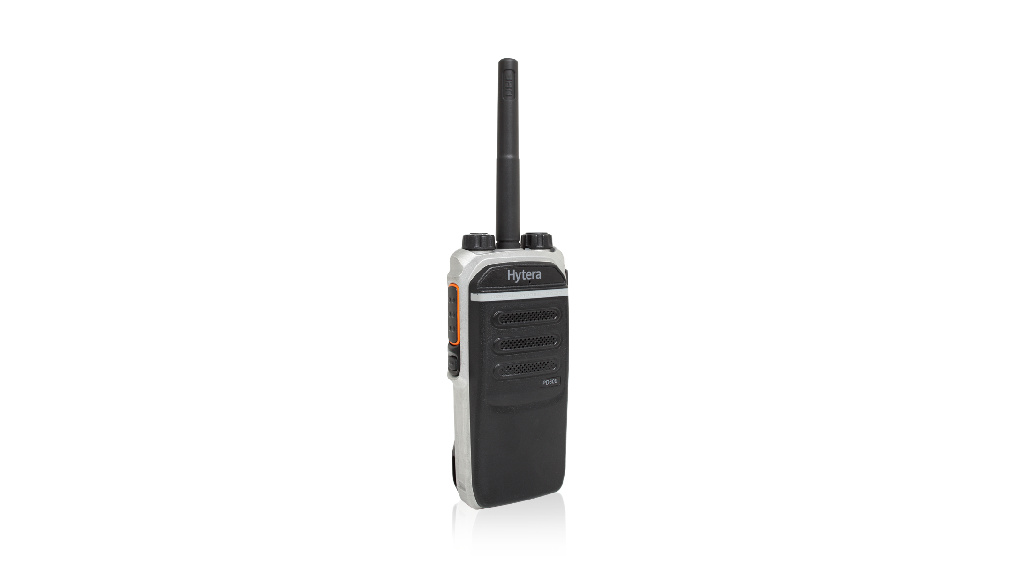

PD605 Slim, professional, digital two-way radio

Handheld | DMR

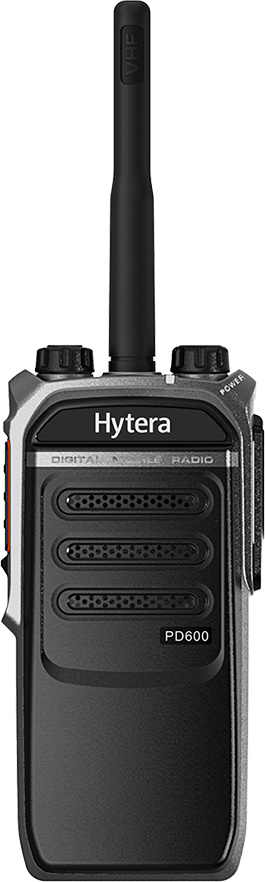

Delivering superior voice clarity and enhanced encryption, the Hytera PD605 handheld digital two-way radio is a compact, high quality device. At just 27mm thick and 290g, this radio is a popular choice and ideal for long shifts. Request the PD605(G) variant for GPS and Man Down.

Highlights of PD605

EMERGENCY MODE

Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm. Also receive emergency notifications.

LONE WORKER

The Lone Worker feature uses a timer in the radio to measure inactivity. If the timer expires, a warning is issued, and if there is no response to that, the alarm is triggered.

PSEUDO TRUNKING

Using pseudo-trunking, a Hytera patented technology, slots can be shared to improve capacity usage with transmissions either direct to handset or to repeater.

XPT

Hytera XPT (Extended Pseudo Trunking) enables you to use limited spectrum resources more efficiently, dynamically assigning channel resource without needing a dedicated control channel.

GPS

Optional (PD605G only), enabling location based services to improve safety and control.

BLUETOOTH AUDIO

Optional (external adapter accessory), wireless connectivity to audio devices to improve user experience.

PRIORITY INTERRUPT

Send a priority transmission to interrupt other calls, ideal for important, critical messages.

MAN DOWN

Optional (PD605G only), this feature will let you know if the radio has been tilted past a certain angle. This may happen for instance if the radio user has fallen over or is unconscious or injured. The alarm will be triggered after a warning is issued to the user.

Systems Connectivity

Versatile to connect with telemetry, integrate into telephony, or expand across multiple sites with Hytera XPT or DMR Tier III (licenced)

Rugged and Reliable

Dust and waterproof, rated IP67, sustaining performance in harsh environments

GPS Location

Available as an optional extra, GPS for tracking and positioning also includes man down feature

Specifications of PD605

General data
Receiver
Transmitter
Environmental Specs
Location Service

General data
Frequency Range	UHF:400-527MHz; VHF:136-174MHz
Channel Capacity	1024
Zone Capacity	16
Channel Spacing	12.5 kHz/20 kHz/25 kHz
Operating Voltage	7.4V(rated)
Battery	1500mAh (Li-ion); 2000mAh (Li-ion)
Battey Life(5/5/90 Duty Cycle,High TX Power)	Analog/Digital: 11hours/16hours (1500mAh); 14.5hours/21hours (2000mAh)
Frequency Stability	±0.5ppm
Antenna Impedance	50Ω
Dimensions(H×W×D) mm	119mm×54mm×27mm(1500mAh); 119mm×54mm×31mm (2000mAh)
Weight	309g(2000mAh); 290g(1500mAh)

Receiver
Sensitivity(Analog)	0.22μV(Typical)(12dB SIN AD); 0.3μV (12dB SIN AD); 0.4μV (20dB SIN AD);
Sensitivity(Digital)	0.22μV/BER 5%
Adjacent Channel Selectivity	ETSI:60dB @ 12.5 kHz/70dB @ 20&25 kHz; TIA-603:60dB @ 12.5 kHz/70dB @ 20&25 kHz
Intermodulation	ETSI:65dB @ 12.5/20/25 kHz; TIA-603:70dB @ 12.5/20/25 kHz
Spurious Response Rejection	ETSI:70dB @ 12.5/20/25 kHz; TIA-603:70dB @ 12.5/20/25 kHz
Blocking	84dB
Hum&Noise	40dB @ 12.5 kHz; 43dB @ 20 kHz; 45dB @ 25 kHz
Rated Audio Power Output	0.5W
Rated Audio Distortion	≤3%
Audio Response	+1~-3dB
Conducted Spurious Emission	<-57dBm

Transmitter
RF Power Output	VHF High power:5W; UHF Low power:1W; UHF High power:4W; VHF High power:1W
FM Modulation	11K0F3E @ 12.5 kHz; 14K0F3E @ 20 kHz; 16K0F3E @ 25 kHz
4FSK Digital Modulation	12.5 kHz data only: 7K60FXD; 12.5 kHz data&voice: 7K60FXW
Conducted/Radiated Emission	-30dBm > 1GHz; -36dBm ≤ 1GHz
Modulation Limiting	±2.5 kHz @ 12.5 kHz; ±4.0 kHz @ 20 kHz; ±5.0 kHz @ 25 kHz;
FM Hum&Noise	40dB @ 12.5 kHz; 43dB @ 20 kHz; 45dB @ 25 kHz
Adjacent Channel Power	60dB @ 12.5 kHz; 70dB @ 20/25 kHz
Audio Distortion	≤3%
Digital Vocoder Type	AMBE+2™ or SELP

Environmental Specs
Operating Temperature	-30℃~+60℃
Storage Temperature	-40℃~+85℃
ESD	IEC 61000-4-2(level 4); ±15kV(Air); ±8kV(Contact)
MIL Standard	MIL-STD-810 C/D/E/F/G
Dust & Water Protection	IP67
Humidity	MIL-STD-810 C/D/E/F/G
Vibration,Drop&Shock	MIL-STD-810 C/D/E/F/G

Location Service
Horizontal Position Accuracy	<5m (50% probable); <10m (95% probable)
Cold Start (Time to First Fix)	<1 minute
Hot Start (Time to First Fix)	<10 seconds
Note	Accuracy Specs are for long-term tracking(95th percentile values>5 satellites visible at a nominal-130dBm signal strength)
