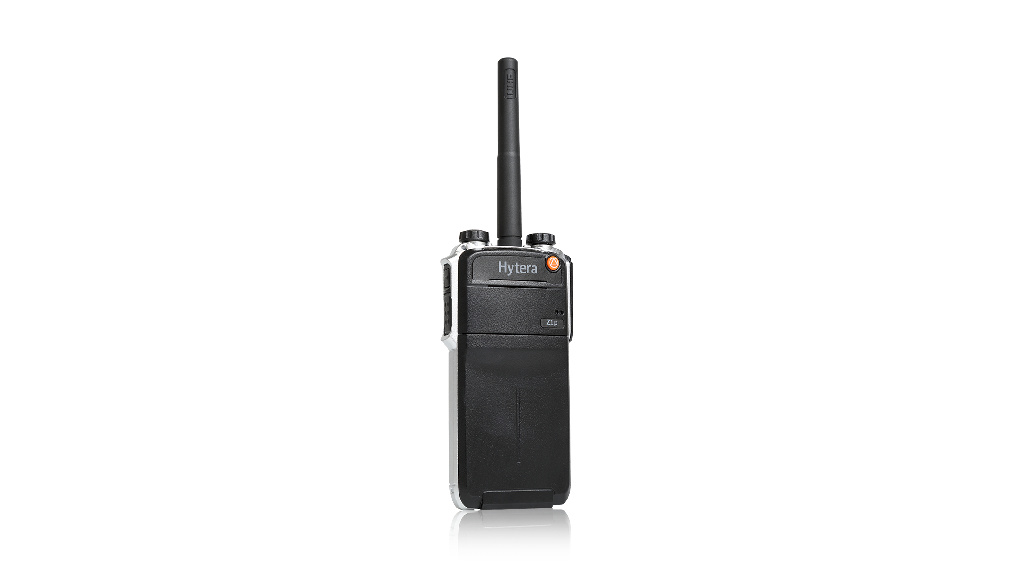

Z1p Advanced, Covert, TETRA Two-Way Radio

Handheld | TETRA

The Hytera Z1p is a slim TETRA handheld two-way radio, developed to provide security users a covert handset packed with functionality, built to TETRA standards. The Z1p also benefits from Savox accessories that are suitable for helmet use, please contact us for more information.

Highlights of Z1p

RF POWER

High 3W transmit power to improve coverage without the need for an additional license.

FULL CALL OUT

Use the radio as a pager with integrated resource management function.

OTAP (OVER THE AIR PROGRAMMING)

Make adjustments to the existing programming of the radio using the free OTAP application.

STATUS REMOTE CONTROL

Control the radio remotely by sending it specific status messages.

PASSWORDS, PINS AND ENCRYPTION

Protect your workforce against eavesdropping or "man in the middle" attacks by applying a PIN/PUK at switch on, protect the programming with a password and use Air Interface Encryption and End to End Encryption.

MAN DOWN

Keep your workforce safer and let the radio generate an alarm when it does not move or is tilted over the programmed angle.

Specifications of Z1p

General data
User Interface

General data
Frequency Range	380-430 MHz; 320-380 MHz; 405-475 MHz; 806-870 MHz
Dimensions(H×W×D) mm	120 mm × 58 mm × 23 mm (with 1400 mAh standard battery); 120 mm × 58 mm × 26 mm (with 1800 mAh option battery)
Weight	268 g(with 1400 mAh standard battery and antenna); 292 g(with 1800 mAh option battery and antenna);
Operating Voltage	7.4 V

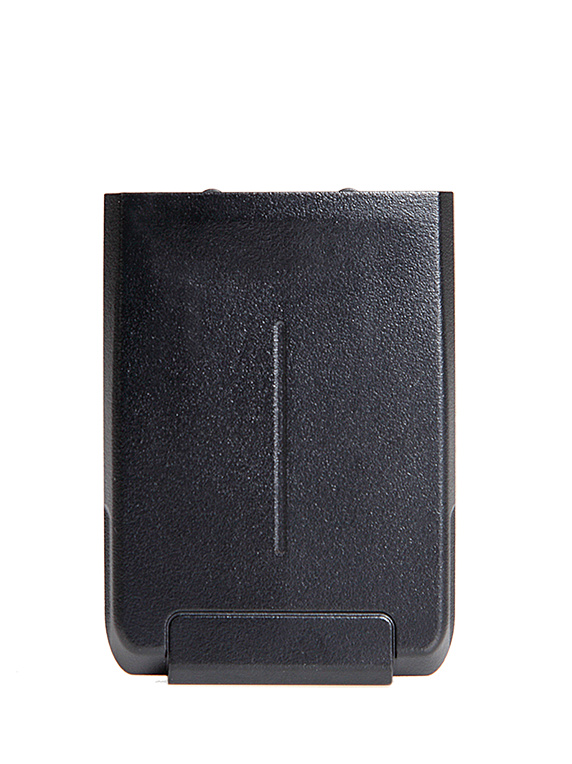

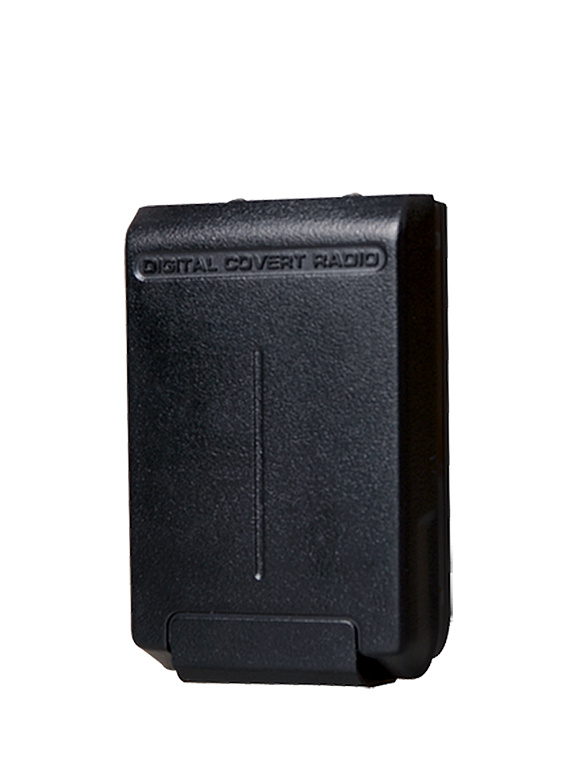

Battery	1400 mAh Li-lon battery (standard); 1800 mAh Li-lon battery (option)
Battery Life (TMO 5/5/90 duty cycle)	>16 hours (1400 mAh); >20 hours (1800 mAh)

User Interface
Display	1.8 inch，160*128 pixels，262144 colors
Talk Group-TMO	6000
Talk Group-DMO	4000
Telephone book	2000
