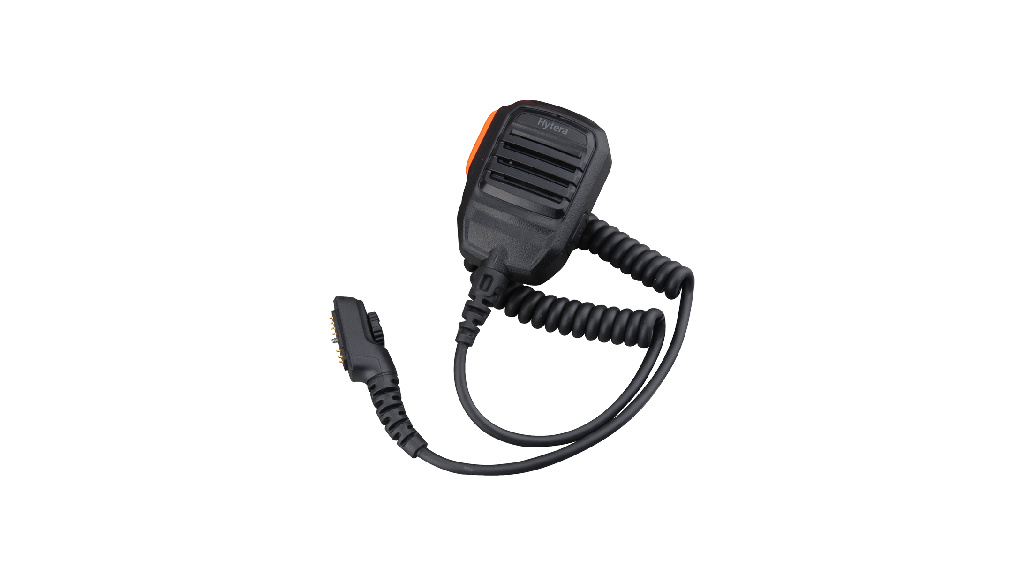

Specifications of SM18N3
- Specifications
| Specifications | |
|---|---|
| Dimensions (H×W×D) mm | 86.3 x 62.1 x 43.8 |
| Weight | about 160 g |
| Colour | black |
| PTT key | available |
| Emergency key | available |
| Radio connector | 16-pin connector |
| Earpiece jack | none |
| Microphone sensitivity | –42±3 dB @ 1 kHz 3.0 V 2.2 K, 0 dB = 1 V/Pa |
| Speaker power | 1 W (rated),1.5 W (max.) |
| Speaker impedance | 8 Ω ±15% @ 1.5kHz |
| Speaker frequency response | 93±4dB @ 1 kHz 1 W/30 cm |
| Ingress protection | IP54 |
| Operating temperature | –30℃ to 70℃ |
| Storage temperature | –40℃ to 85℃ |
| Applicable radios | PT560H and PT580H Plus |
* Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
