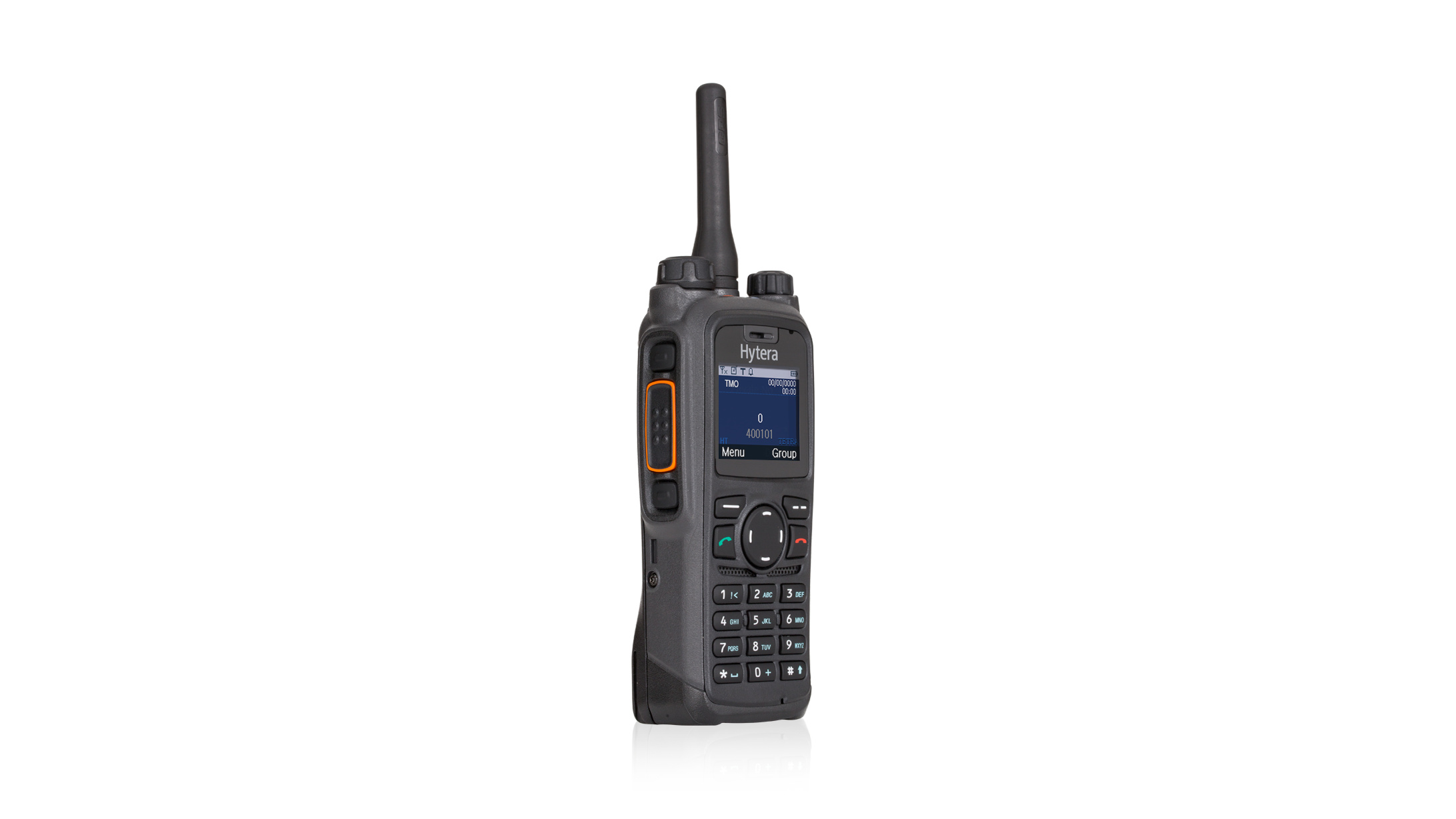

Full of functionality, packed inside an ergonomic design, the Hytera PT580H Plus TETRA two-way radio handset boasts an IP67 protection to deliver unbeatable TETRA communication, no matter the environment.
General | |
---|---|
Frequency Range | F3 : 380 - 430MHz F4 : 405 - 475MHz |

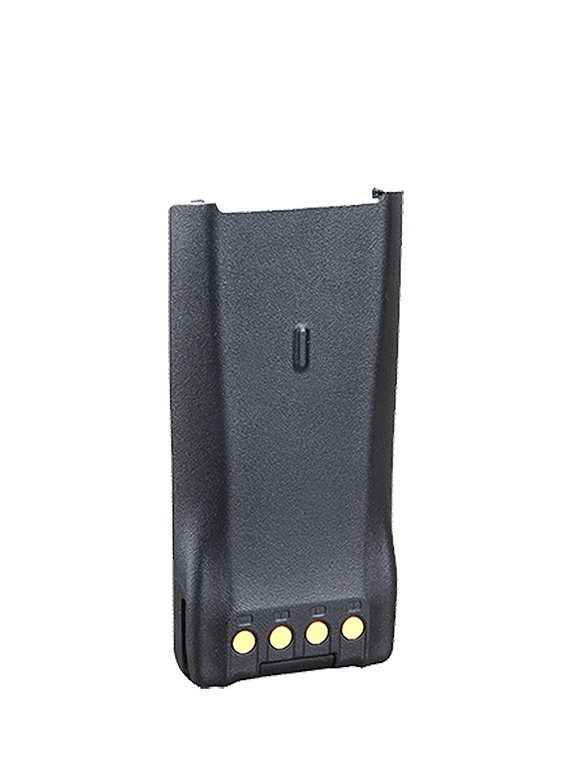

Battery Life | 1800mAh, 20hr |
Dimensions(W×H×D) | 127.5 x 55 x 36.5 (mm) |
Weight | 374g (with standard battery and antenna) |
Display | 160 x 128 pixels, 65536 colors 1.8 inch, 4 rows |
Keypad | Full keypad |
Programmable Buttons | 23 |
User Interface | ||
---|---|---|
Display | 1.8inch, 160*128 pixels, 65536 colors | |
Talk Group-TMO | 6000 | |
Talk Group-DMO | 4000 | |
Telephone book | 2000 | |
Inbox | 400 | |
Outbox | 50 | |
Drafts | 50 | |
Folder-TMO | 200 | |
Folder-DMO | 50 | |
State Message | 200 |
RF Specifications | ||
---|---|---|
Channel Bandwidth | 25 kHz | |
RF Power Output | 3W(1.8W For 806-870MHz) | |
RF Power Level Accuracy | ±2 dB | |
RF Power Control | 5dB per step, 5 levels and 4 steps in total | |
Receiver Class | ETSI EN 392-2/396-2 Class A and Class B | |
RX Sensitivity(Static) | ≤-116dBm(typical-118dBm) 806-870MHz: ≤-115dBm(typical-116dBm) | |
RX Sensitivity(Dynamic) | ≤-107dBm(typical-109dBm) 806-870MHz: ≤-106dBm(typical-107dBm) | |
Audio Power Output | 2W(Peak 3W) |
GPS Specifications (For the Model with GPS) | ||
---|---|---|
RX Sensitivity | Acquisition sensitivity: -146dBm Tracking sensitivity: -165dBm | |
Horizontal Position Accuracy | ≤2.5m (50% probable)@-130dBm | |
Cold Start (Time to First Fix) | <35 s | |
Hot Start (Time to First Fix) | <1 s | |
Note | Conditions: Open Sky environment, 130dBm signal strength, 24H static |
Environmental | ||
---|---|---|
Operating Temperature | -30℃ ~ +60℃ | |
Storage Temperature | -40℃ ~ +85℃ | |
Humidity | ETS 300-019-1-7 Class 7.3E MIL-STD-810 G | |
Dust & Water Protection | IP65/66/67/68 Per IEC60529 | |
Vibration,Drop & Shock | MIL-STD-810 G ETS 300-019-1-7 Class 5M3 GJB150A-2009 |
PTT&MIC cable
3-wire Surveillance Earpiece with Transparent Acoustic Tube(Beige)
External speaker with audio amplifier for Hytera car kits
3-wire Surveillance Earpiece with Transparent Acoustic Tube(Black)
Speaker Microphone (designed for connection to Car Kit) (IP54)
Detachable Earpiece with Transparent Acoustic Tube
Cable Kit incl. Foot Switch to be used with car kit
Receive-only Earpiece with Transparent Acoustic Tube
Heavy duty Noise-cancelling Headset
Receive-Only C-Style Earloop
Receive-Only Adjustable Earhook with Swivel Speaker
C-Earset
Swivel Earset
Double PTT BT Earpiece
BT earpiece
Receive-Only Earbud
Receive-Only Earpiece with Transparent Acoustic Tube

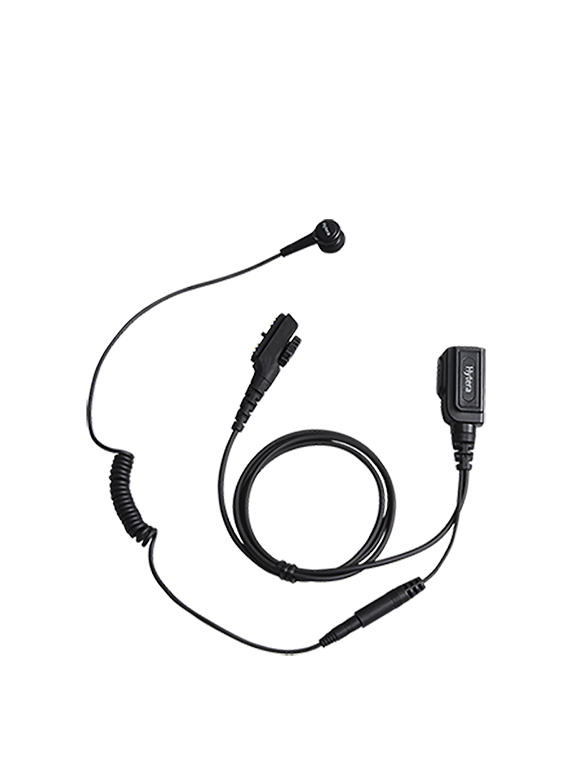

Earbud
Wireless Earset Kit

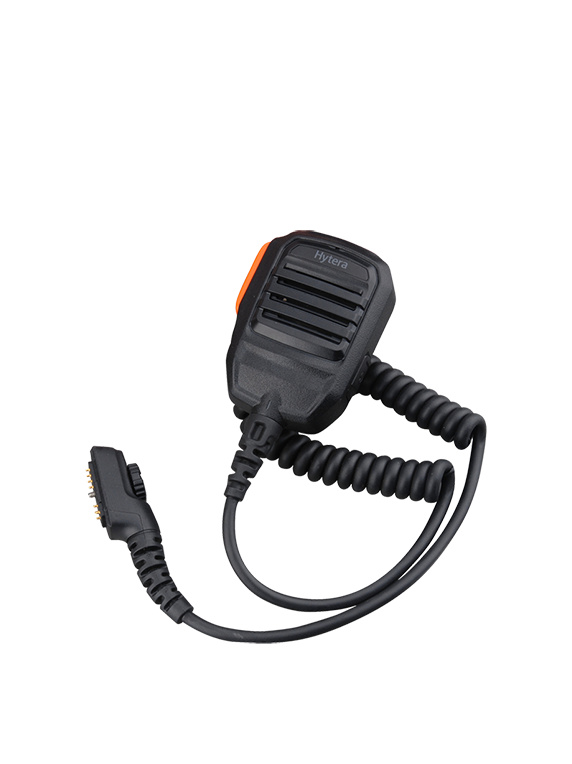

Waterproof Remote Speaker Microphone(IP54)

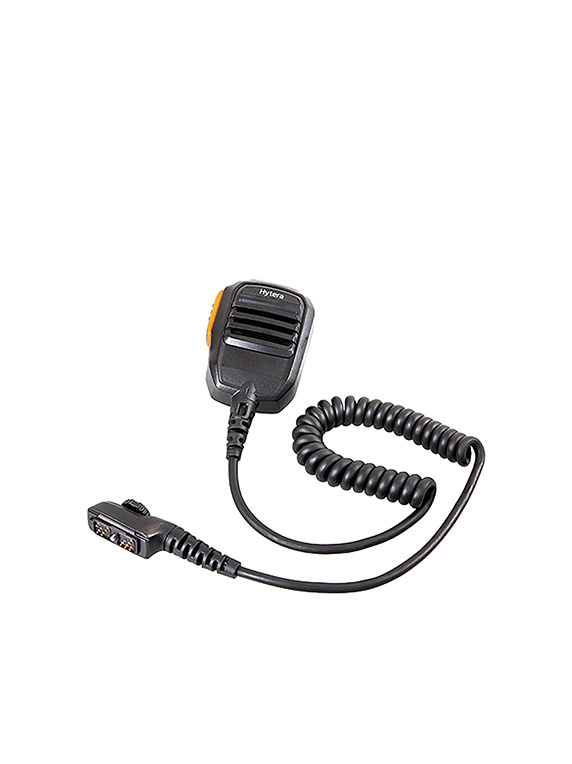

Waterproof Remote Speaker Microphone(IP67)
Waterproof Remote Speaker Microphone(IP67)
Waterproof Remote Speaker Microphone(IP54)
Wireless PTT
Ear Canal Wireless Receiver
Dual Pocket Charger Kit
Charging adapter for wireless earpiece (ESW01)
Battery Adapter for MCA02 and MCA05
Rapid-rate Charger
Multi-Unit Charger
Multi-unit Charger for Li-ion Battery( 2A)
Vehicle Power Adapter
Multi-unit Charger Unit
Switching Power Adapter(UK)
Switching Power Adapter(EU)
Switching Power Adapter(UK)
Switching Power Adapter(EU)
Desktop Switching Power Supply

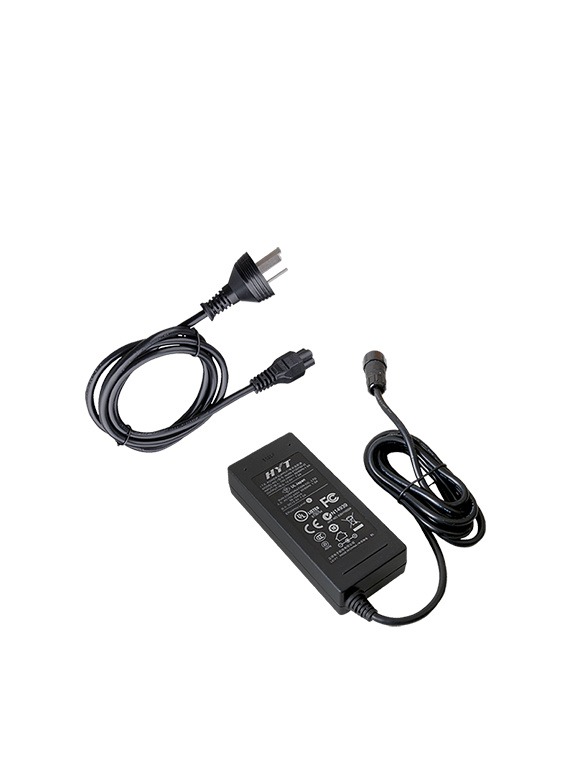

Switching Power Adapter for MCU Multi-unit Rapid-rate Charger (incl. UK standard - PWC03 CLOVER lead) -- 12 V DC, 7 A
Switching Power Adapter(AU)
Power Adapter for Rapid Charger (Euro standard plug) -- EOL, replaced by PS1044
Power Adapter without power cable for multi-unit chargers MCA20, MCA24, MCA25, MCA26, MCL32, MCL38, MCL39, MCL41
UHF(380-430MHz/1575MHz)9cm

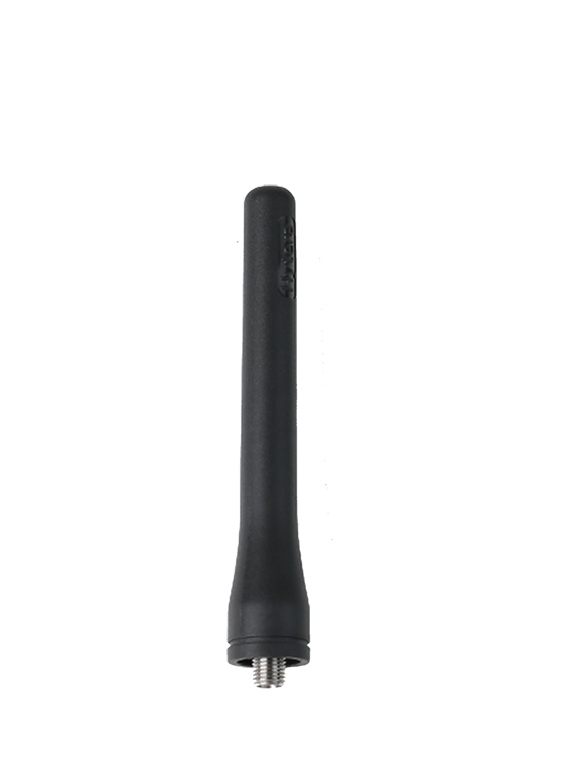

UHF stubby antenna SMA interface 9cm 380-400MHz/1575MHz with Hytera Logo
PT580H UHF stubby antenna SMA interface 6.5cm 380-400MHz/1575MHz with GPS logo
PT580H UHF stubby antenna SMA interface 6.5cm 380-430MHz/1575MHz with GPS logo
UHF(400-475MHz/1575MHz)9cm
UHF(350-400MHz/1575MHz)9cm
